ADS1299: ADS1299 Channel Yield / ESD / Failure Analysis

Llyr Roberts

Part Number: ADS1299

Hi,

Our system contains up to x32 ADS1299 for EEG.

We are encountering issues with channel yield and possible ESD related issues.

Could we please receive some support on these issues?

Can TI please help us with Failure analysis at a PCB level?

Kind regards,

1 month ago

0 Ryan Andrews 1 month ago

TI__Guru 69006 points

Hi Llyr,

For FA requests, you would have to contact customer support or work through your local TI sales team.

Can you provide more details about the observed behavior? What debug steps have you already taken? Have you seen the following FAQ page on E2E?

[FAQ] ADS129x: How do I verify that my ADS129x device is still functional? - Data converters forum - Data converters - TI E2E support forums

Regards,

Ryan

0 Llyr Roberts 1 month ago in reply to Ryan Andrews

Prodigy 20 points

Hi Ryan,

When a failure occurs data is provided but the channels become unwieldy or very noisy.

So we are happy we are still communicating with the IC and receiving data.

We have always struggled getting support from customer support or local TI sales team.

Kind regards,

0 Ryan Andrews 1 month ago in reply to Llyr Roberts

TI__Guru 69006 points

Hi Llyr,

Thanks. When they behavior occurs, can you configure the affected channels to measure the internal square wave test signal? Does resetting or power cycling the device recover expected performance?

Regards,

Ryan

0 Llyr Roberts 1 month ago in reply to Ryan Andrews

Prodigy 20 points

Hi Ryan,

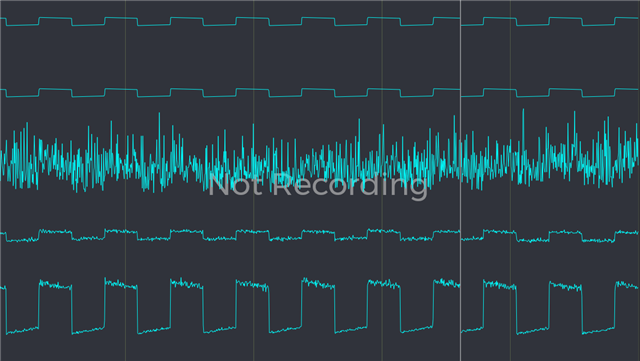

We are able to set all 256CH to provide internal square waves and you can see here the outcome for good vs bad channels.

Power cycling does not seem to have an impact.

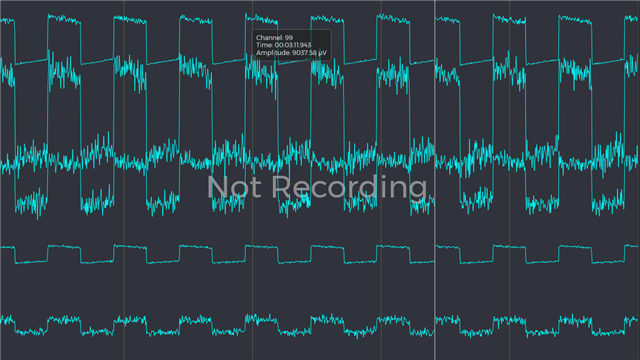

Two examples below.

Many Thanks,

0 Ryan Andrews 1 month ago in reply to Llyr Roberts

TI__Guru 69006 points

Hi Llyr,

Thanks. For FA requests, you would still need to call TI customer support: Customer Support Platform. I can still work with you to understand the issue and help debug, but I think working with Customer Support in parallel would be helpful in case it is truly a device failure and not an application issue.

Can you share a complete PDF schematic and register configuration? If you prefer to share over email, we can take the discussion offline.

Regards,

Ryan

0 Llyr Roberts 1 month ago in reply to Ryan Andrews

Prodigy 20 points

Hi Ryan,

I have sent you my email over private message. Can you contact me? Or leave me your email here?

Kind regards,

0 Llyr Roberts 29 days ago in reply to Ryan Andrews

Prodigy 20 points

Hi Ryan, What's your email? We would prefer to share over email. Kind regards.

0 Ryan Andrews 29 days ago in reply to Llyr Roberts

TI__Guru 69006 points

Hi Llyr - was out of office end of last week. We are coordinating internally and will continue the discussion offline. I did see your email. Please allow us another day or so to get back to you with next steps. I'll close the thread here. Thanks!

Regards,

Ryan
