ads1299 evaluation module problem

Yan Jia-hong

Other Parts Discussed in Thread: ADS1299

Hi. I have order the ads1299 evaluation module and read the EEG Front-End Performance Demonstration Kit(slau443) but the EEG Front-End Performance Demonstration Kit of page 32 (7.1 Reference Signal and Patient Bias Signal) , The EVM has two signals (BIAS_ELEC, REF_ELEC) available atthe connector JP81 that correspond to these two electrodes. The BIAS_DRV signal is similar to the BIAS_ELEC, but appears as a separate signal at JP80. In future versions of the EVM, BIAS_DRV will be
multiplexed through a jumper to BIAS_ELEC. I can not find JP80 and JP81 in ads1299 evaluation module or Page 50-53 . How can anyone help me.

over 13 years ago

Tom Hendrick over 13 years ago

TI__Guru**** 182191 points

Hi Yan,

Thank you for your interest in the ADS1299! JP81 is actually JP25, thank you for catching that typographical error for us! I believe JP80 is actually JP1 and will be able to confirm that on Monday morning.

Yan Jia-hong over 13 years ago in reply to Tom Hendrick

Intellectual 840 points

Thanks. I will wait on Monday that tell me again(double chack) that problem , please

Yan Jia-hong over 13 years ago in reply to Yan Jia-hong

Intellectual 840 points

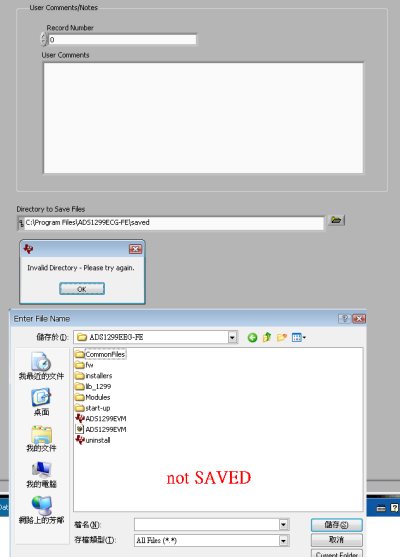

hi, the ads1299 of Software(ads1299-eeg-fe-1.0.1) have error for File Save Option Under 'Save' Tab

Tom Hendrick over 13 years ago in reply to Yan Jia-hong

TI__Guru**** 182191 points

Hi Yan,

The JP80 text should read J6 - this is the main signal input connector on the board. We'll clear up the typos as soon as possible. For the Data Save option, try creating a folder on your desktop and save your desired data there.

Yan Jia-hong over 13 years ago in reply to Tom Hendrick

Intellectual 840 points

I have try creating a folder on my desktop,but not save.

Yan Jia-hong over 13 years ago in reply to Yan Jia-hong

Intellectual 840 points

The ADS1299 of the Package_NFBGA (ZXG) what time is the order???

Greg Hupp over 13 years ago in reply to Yan Jia-hong

TI__Mastermind 23235 points

Please see the below post

http://e2e.ti.com/support/data_converters/precision_data_converters/f/73/p/217072/764966.aspx#764966

Jaballi Maher over 12 years ago in reply to Greg Hupp

Intellectual 455 points

please how to convert the following binaie (27 byte "3 byte start and 24 bit of each string" (it has 8 channel)), ie the result after the conversion Delata SEGMA on 24bit for ADS1299 for real numbers?
