start a pulse oximeter project

Allen Zhou

Other Parts Discussed in Thread: AFE4490, CC2541, AFE4400

We plan to start a oximeter product for family usage.

Could anyone recommend any TI solutions and chips for me?

We want to design it with the simplest circuit because of the cost and family usage only. If TI has a MCU with algorithm will be better.

Thanks a lot

Alex Wu

over 11 years ago

0 Amy Schnoor over 11 years ago

TI__Mastermind 18285 points

Alex,

Please refer to this TI Design.

http://www.ti.com/tool/tida-00010

This features our AFE4490 for Pulse Ox measurement, an MSP430 as the MCU, along with the CC3541 for BLE connectivity.

0 Allen Zhou over 11 years ago in reply to Amy Schnoor

Prodigy 105 points

Dear Amy,

Thanks for your information.

I checked the files, we plan to design with BLE CC2541 for wireless transmission.

Another question, we worry that the material cost of chip AFE4490 should be very high.

Do you have any more simple solutions for choice?

http://www.ti.com/apps/docs/litabsmultiplefilelist.tsp?literatureNumber=slaa274b&docCategoryId=1&appId=270

Above also from TI website, do you think this solution is ok for designing a oximeter for family use(not for hospital)?

What's the difference between this with AFE4490 solution?

Thanks very much!

Sincerely

Alex

0 MichRFT over 11 years ago in reply to Allen Zhou

Expert 2110 points

AFE4400 is cheaper

0 Amy Schnoor over 11 years ago in reply to MichRFT

TI__Mastermind 18285 points

Sure. For your application you can switch out the AFE4490 for the AFE4400.

0 Amy Schnoor over 11 years ago in reply to Amy Schnoor

TI__Mastermind 18285 points

Are you planning to use a reflective or transmissive application for your design?

0 Allen Zhou over 11 years ago in reply to Amy Schnoor

Prodigy 105 points

Dear Amy,

Thanks for your reply. I am not fully understand about "reflective or transmissive application". Sorry for my poor English...

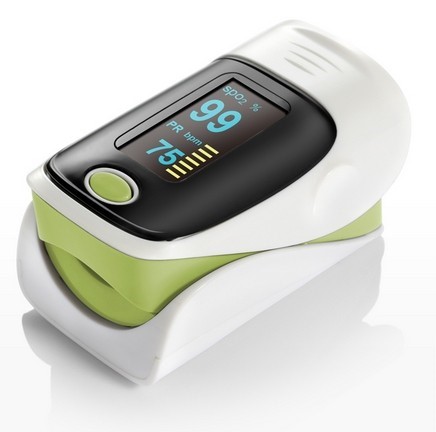

We want make a product for our customer like this picture following.

It a finger oximeter for family monitoring. The desigh like this: sensor + MCU + BLE.

Another question need your help, where I can find any hardware and software support for AFE4400 ?

Thanks very much.

Sincerely

Alex

0 Amy Schnoor over 11 years ago in reply to Allen Zhou

TI__Mastermind 18285 points

Alex,

Please see TI Design titled "Pulse Oximeter via Finger Clip" reference example at the link below..

http://www.ti.com/tool/tida-00010

You may request MSP430 software by following directions found at

http://www.ti.com/lit/sw/tida010/tida010.pdf

The following document explains the fundamentals of SPO2.

http://www.ti.com/lit/pdf/tidu124

0 Allen Zhou over 11 years ago in reply to Amy Schnoor

Prodigy 105 points

Dear Amy,

Thanks for your patient reply. I am requireing the software support from your company.

Thank you very much.

Alex

0 Amy Schnoor over 11 years ago in reply to Allen Zhou

TI__Mastermind 18285 points

Alex,

If you need software support regarding the TI Design. You could inquire from the MSP430 team. We provide the source code as a starting point for our customers to use if there is a business case.

0 Prakash Rajaiya over 10 years ago in reply to Amy Schnoor

Intellectual 315 points

i am using pulse oximter with finger clip reference design.

i need to know which kind of finger clip sensor is compatible? Any part number available ?

0 Praveen Aroul over 10 years ago in reply to Prakash Rajaiya

TI__Mastermind 49946 points

Hello Prakash,

The part number for the finger clip sensor is 020101001 from Biometric cables.

www.biometriccables.com/.../texasinstrumentmodulestipn020101001
