DAC3482EVM with FMC-DAC-ADAPTER

K.Yaita

Other Parts Discussed in Thread: FMC-DAC-ADAPTER

Hi Team,

My customer received DAC3482EVM and FMC-DAC-ADAPTER and he tried to connect them, however he said J13 connector of DAC3482EVM and J2 connector of FMC-DAC-ADAPTER didn't match.

I found the following description in DAC3482EVM User's guide.
Is the following description wrong?
----------------------------------
[User's guide page.2]
The on-board HSMC connector input allows direct connection to the HSMC compatible Altera development platforms, and the externally attached FMC-DAC-Adapter board available from TI enables the connection of the EVM to the Xilinx development platforms with FMC headers.
----------------------------------
What can I do for my customer about this issue?
Your support would be appreciated.

Best Regards,
Yaita / Japan disty

over 10 years ago

0 Ebenezer Dwobeng over 10 years ago

TI__Genius 9695 points

Hi Yaita,

Revision D of the FMC-DAC-Adapter is recommended for use with the DAC3482EVM. Can you confirm what revision of DACEVM and FMC-DAC-ADAPTER that your customer has?

Thanks,
Eben.

0 K.Yaita over 10 years ago in reply to Ebenezer Dwobeng

Guru 29720 points

Eben-san,

Thank you for your quick reply.
My customer confirmed his boards as the following.
-FMC-DAC-ADAPTER：Rev.D
-DAC3482EVM：Rev.G

Are these unrecommended combination?
My customer would like to evaluate these board right now, so your help would be appreciated.

Best Regards,
Yaita

0 Ebenezer Dwobeng over 10 years ago in reply to K.Yaita

TI__Genius 9695 points

Hi Yaita,

I need more details on what you mean by "the connectors did not match"? Are some of the connections not routed or they cannot be physically connected?

Thanks,
Eben.

0 K.Yaita over 10 years ago in reply to Ebenezer Dwobeng

Guru 29720 points

Eben-san,

Thank you for your reply.
It means they cannot be physically connected.

Best Regards,
Yaita

0 K.Yaita over 10 years ago in reply to K.Yaita

Guru 29720 points

Do you need a few days to confirm this issue?
Sorry for bothering you, but your support would be really appreciated.

BestRegards,
Yaita

0 Ebenezer Dwobeng over 10 years ago in reply to K.Yaita

TI__Genius 9695 points

Hi Yaita,

Both EVMs have standard HSMC connector and I have verified that I am able to connect them together. I will need more detailed information to help me know exactly what is going on. Pictures will help.

Thanks,

Eben.

0 K.Yaita over 10 years ago in reply to Ebenezer Dwobeng

Guru 29720 points

Hi Eben-san,

I really appreciate for your support!
It is strange for me..
So, I will report to my customer and get more information.

Best Regards,
Yaita

0 K.Yaita over 10 years ago in reply to K.Yaita

Guru 29720 points

Hi Eben-san,

I heard my customer couldn't still connect them.

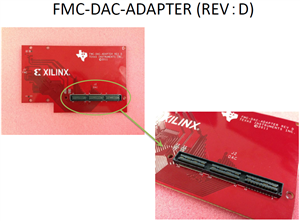

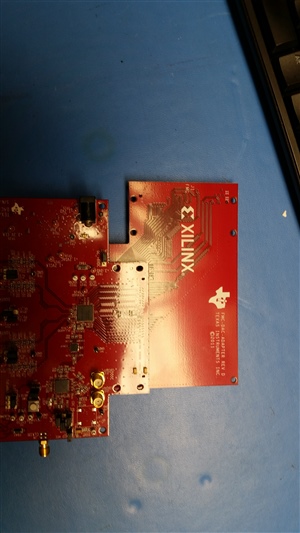

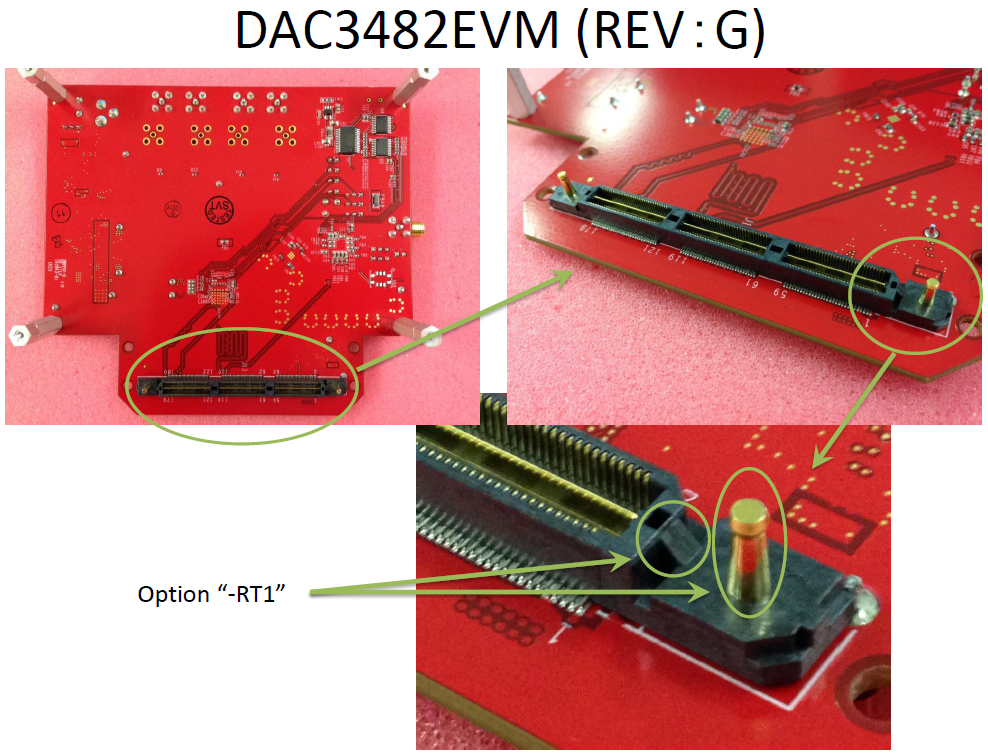

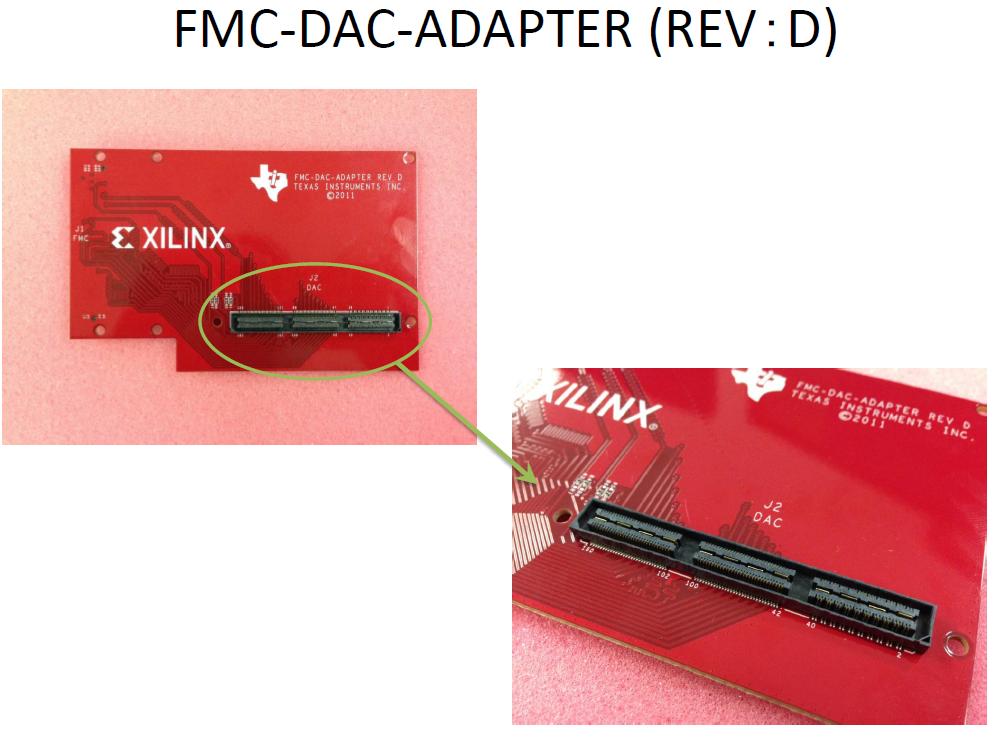

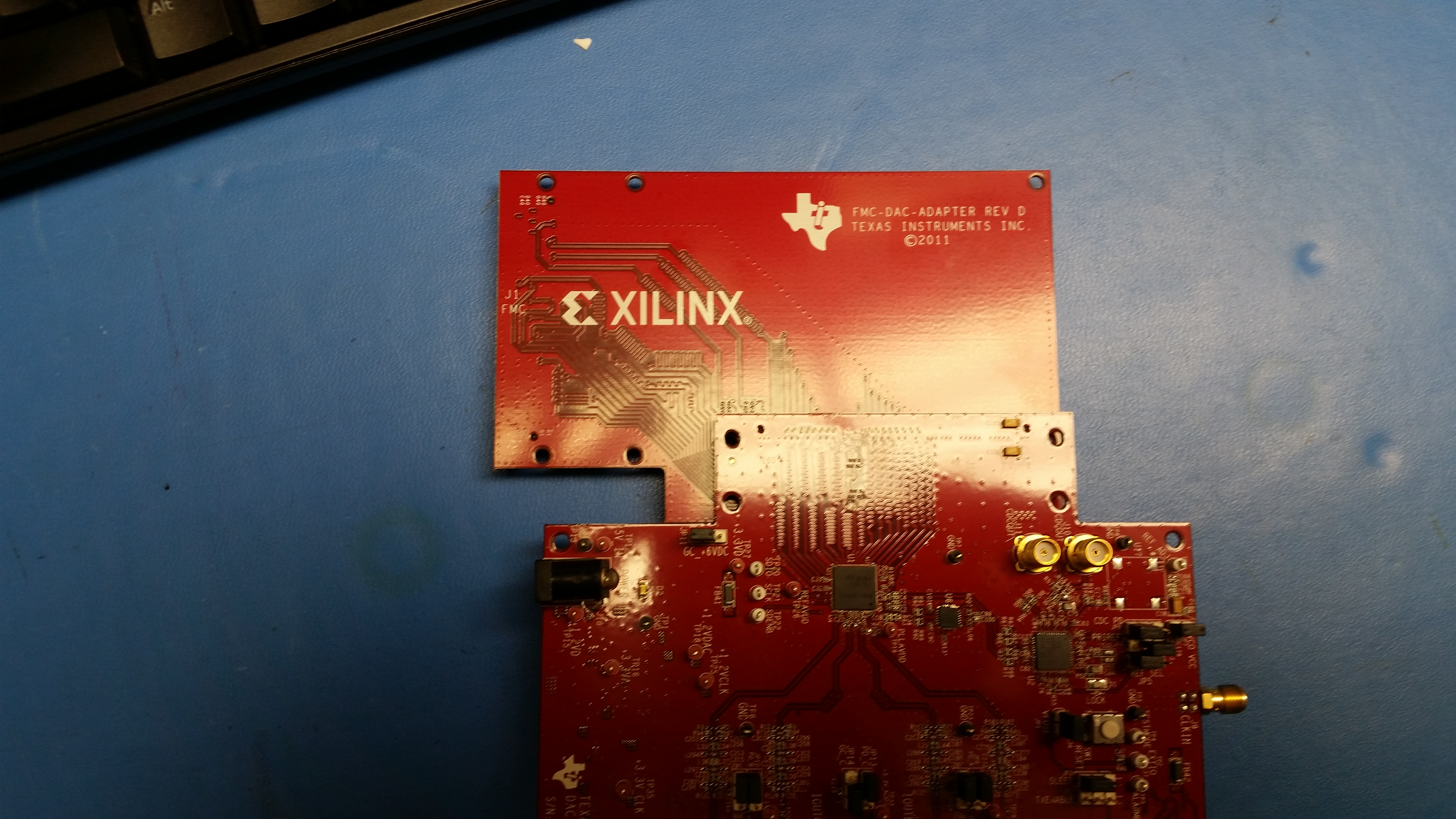

I got the image from my customer.

Is your DAC3482EVM rev.G?

Best Regards,
Yaita

0 Ebenezer Dwobeng over 10 years ago in reply to K.Yaita

TI__Genius 9695 points

Hi Yaita,

Thanks for the pictures. In this case we will have to swap the DAC3482EVM you have for a new one. Please provide your email address and I will contact you offline to arrange this.

Thanks,

Eben.

0 K.Yaita over 10 years ago in reply to Ebenezer Dwobeng

Guru 29720 points

Hi Eben-san,

Thank you for confirming.
Please send email to the following address.

yaita-k@clv.macnica.co.jp

BestRegards,
Yaita
