question about ads1292r's Schematics

Jun

Intellectual 430 points

Other Parts Discussed in Thread: ADS1292R

Dear support,

In ads1292r's user guide(page 51), there are two diffrent ground(see the picture bellow), can i combine them ?

over 10 years ago

0 Amy Schnoor over 10 years ago

TI__Mastermind 18285 points

Jun,

I am moving your post to the Precision Data converters Forum. They will be able to answer your question.

0 Brian Pisani over 10 years ago

TI__Mastermind 38745 points

Hey Jun,

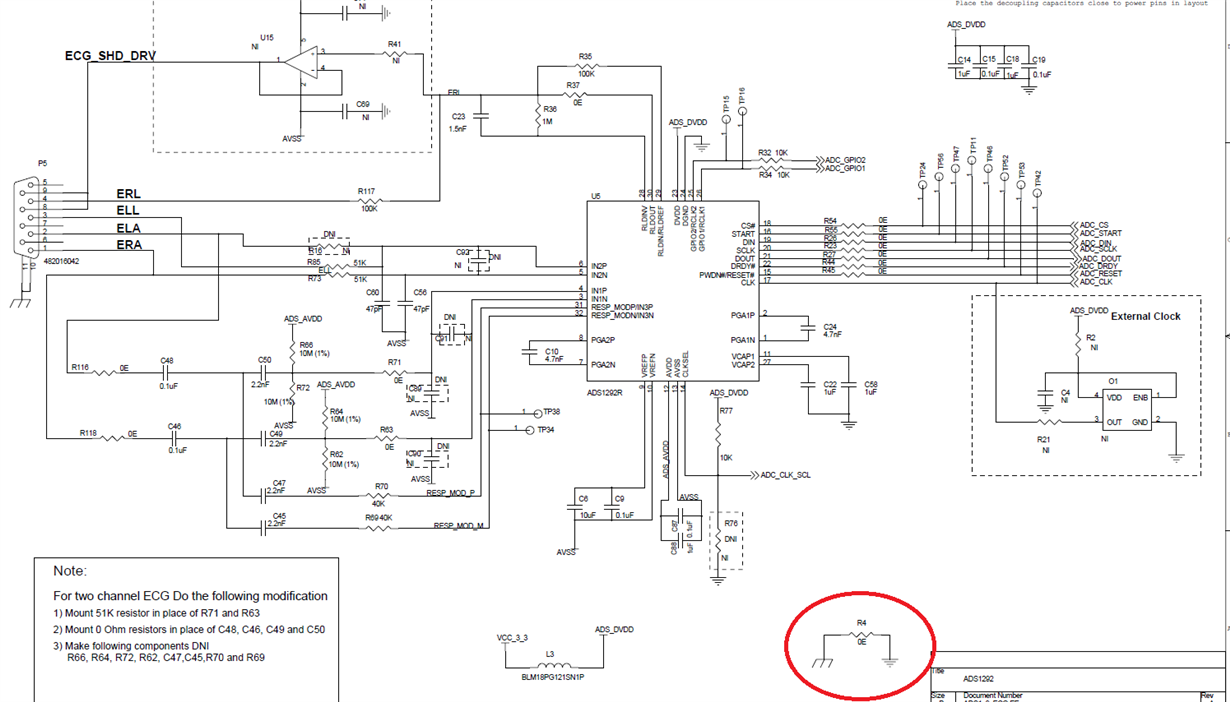

It seems like they are connected on the schematic by a 0-Ohm resistor, so it is fine to connect them. I've attached the image of the schematic with the connection circled.

Regards,
Brian
