AFE4400 / Photodiode-Side Fault Detection

K.Yaita

Other Parts Discussed in Thread: AFE4400

Hi Team,

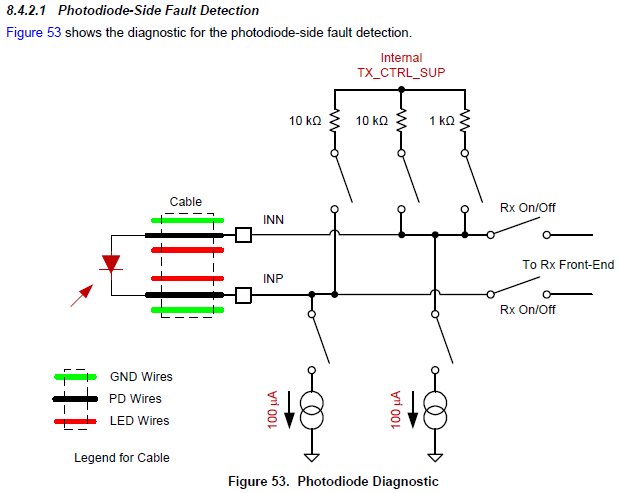

I found the following figure about Photodiode-Side Fault Detection.
Could you tell me the procedure of open and short diagnostic?

I understood the threshold of open fault resistance is >100kΩ and short fault resistance is <10kΩ, but couldn't catch the procedure.

Best Regards,
Yaita / Japan disty

over 10 years ago

0 Praveen Aroul over 10 years ago

TI__Mastermind 49956 points

Yaita-san,

I have outlined the diagnostic procedure in the following E2E post.

e2e.ti.com/.../951700

0 K.Yaita over 10 years ago in reply to Praveen Aroul

Guru 29720 points

Hi Praveen-san,

I saw your post but I would like to know how does AFE4400 make diagnoses open and short.
I found the following schematic but couldn't catch it.

Best Regards,
Yaita

0 Praveen Aroul over 10 years ago in reply to K.Yaita

TI__Mastermind 49956 points

Hello Yaita-san,

Unfortunately we will not be able to share the operation of the diagnostics in an open forum since the diagnostic mode has TI IP blocks.
