ADS1292R Hot to monitor internal clock

na na78

Other Parts Discussed in Thread: ADS1292

Hi

We want to monitor the internal clock.

According to Table 9 of the datasheet, the internal clock can be output with setting CLKSEL PIN = 1 and CONFIG2.CLK_EN = 1.

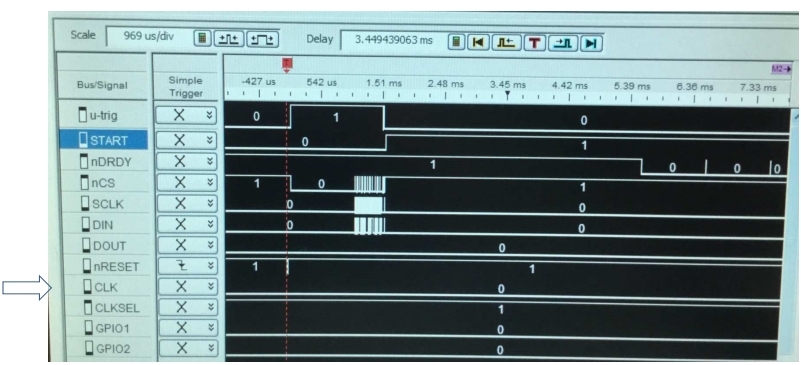

But, we could not monitor the CLK toggle using logic analyzer.

Did we miss some steps to monitor clock?
Do you have any ideas?

Best Regards.

over 9 years ago

0 Tom Hendrick over 9 years ago

TI__Guru**** 181021 points

Hi na na78,

Setting the clock as an output on the ADS1292 should only take setting CLKSEL = 1 and CONFIG2 bit 3 being 'set'. Please try reading back the configuration registers and ensure you have the desired configuration loaded.

0 na na78 over 9 years ago in reply to Tom Hendrick

Guru 16770 points

Hi Tom

Thank you for your reply.

We need to check more.

BestRegards
