Problem loading firmware for ADC12J4000EVM onto TSW14J56 Rev D

Paul Herselman

Other Parts Discussed in Thread: ADC12J4000EVM

I recenlty procured bot a TSW14J56 Rev D and ADC12J4000EVM evalation module to assert performance of the AD12J4000 for our purposes.

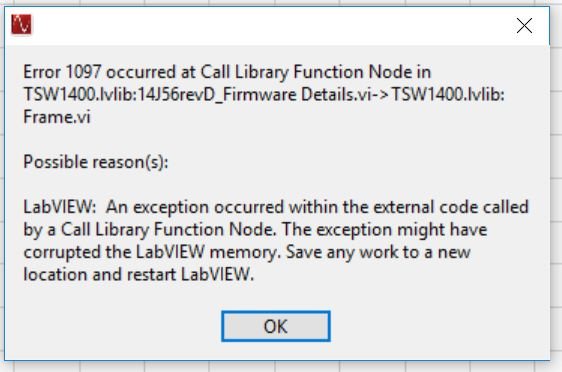

However, having followed to procedures as set out in the ADC12J4000EVM module, I am having difficulty in loading the correct firmware onto the FPGA using the supplied software. Once I have selected what I believe to be the correct ADC, I get the following error message:

I followed the proper installation instructions, i.e. firstly in installed the High Speed Data Converter Pro Software (version 4.4), after wich i installed the ADC12J4000EVM GUI software (version 1.0).

I follow the following easy steps.

1) Open the Data Converter Pro software:

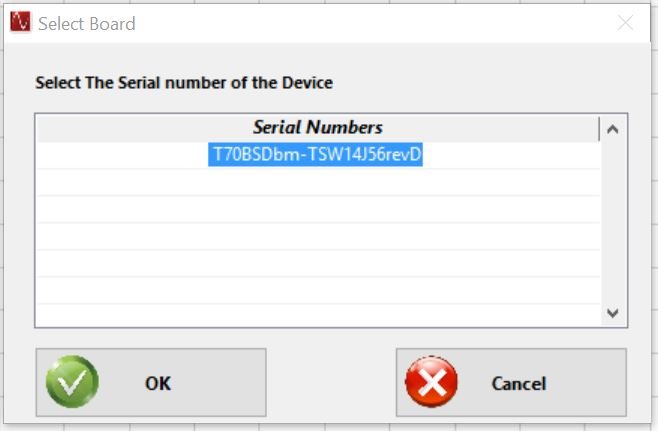

2) Once the board is selected, it is possible to see the device connected and the firmware version:

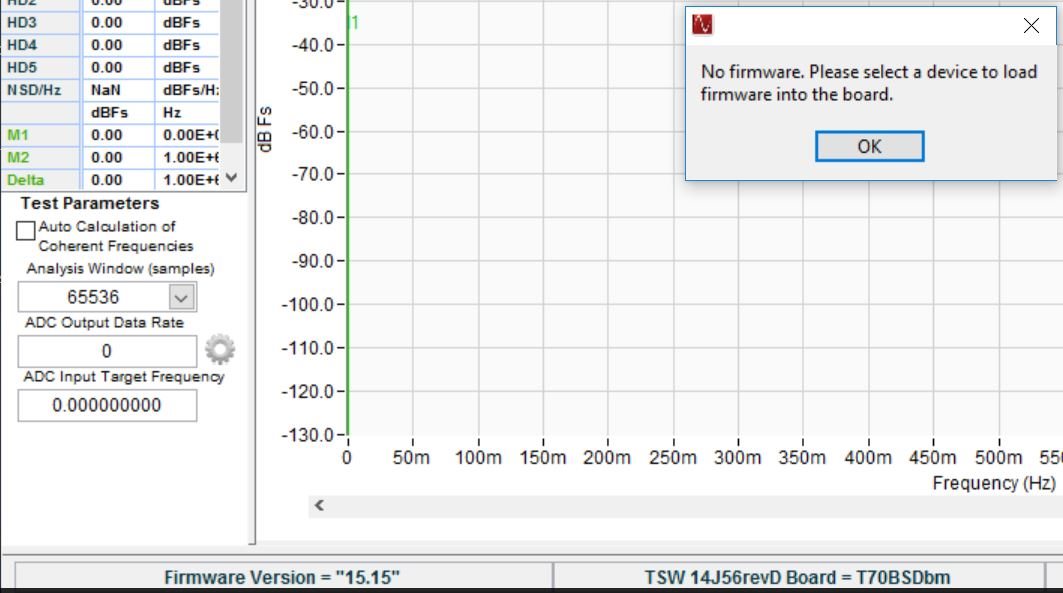

3) The next step was to select the ADC12J4000EVM:

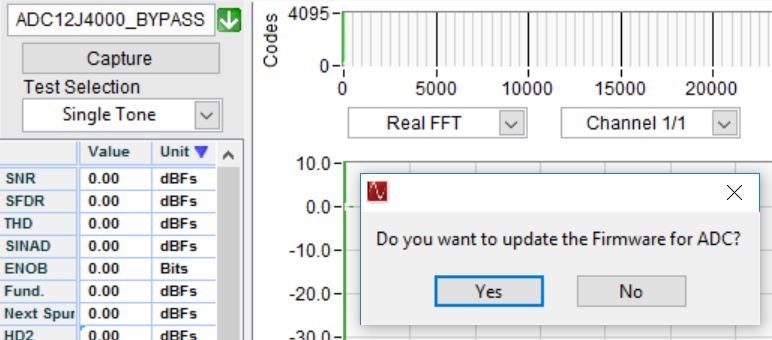

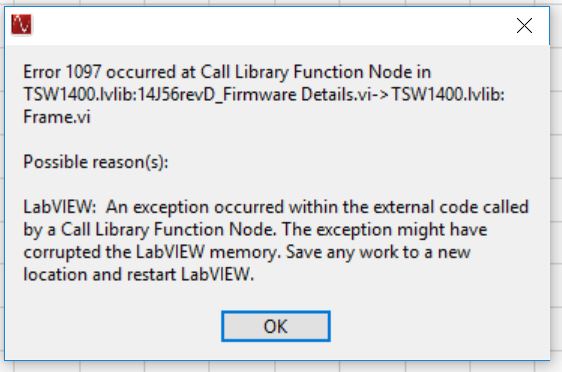

4) When I click on the 'YES' for update firmware, I get the following error.

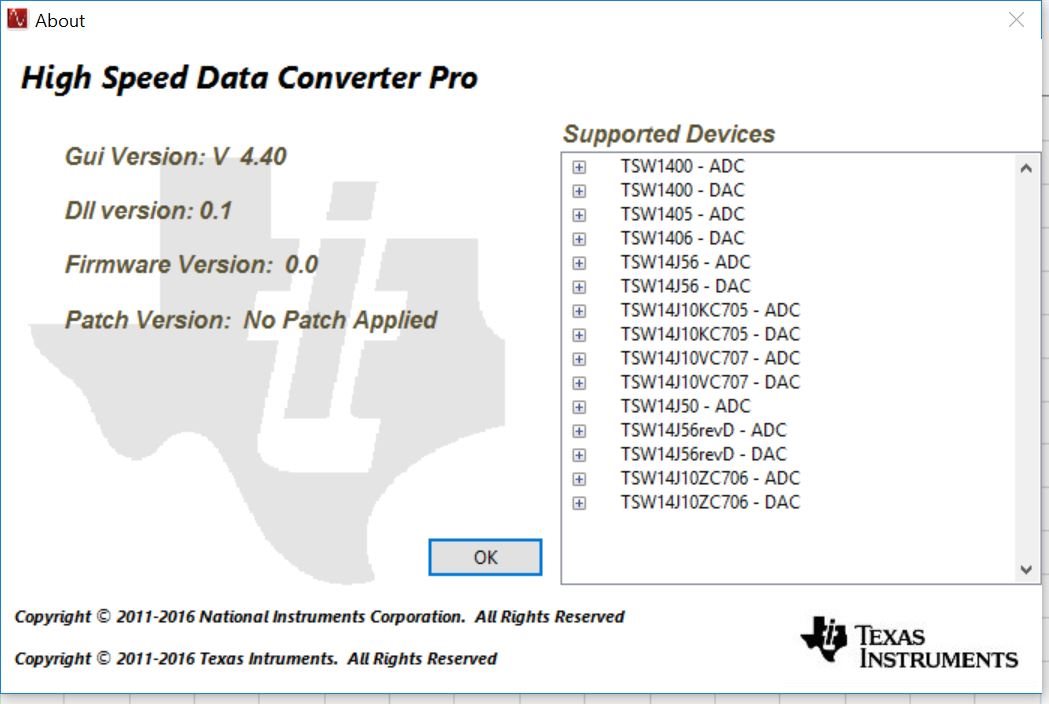

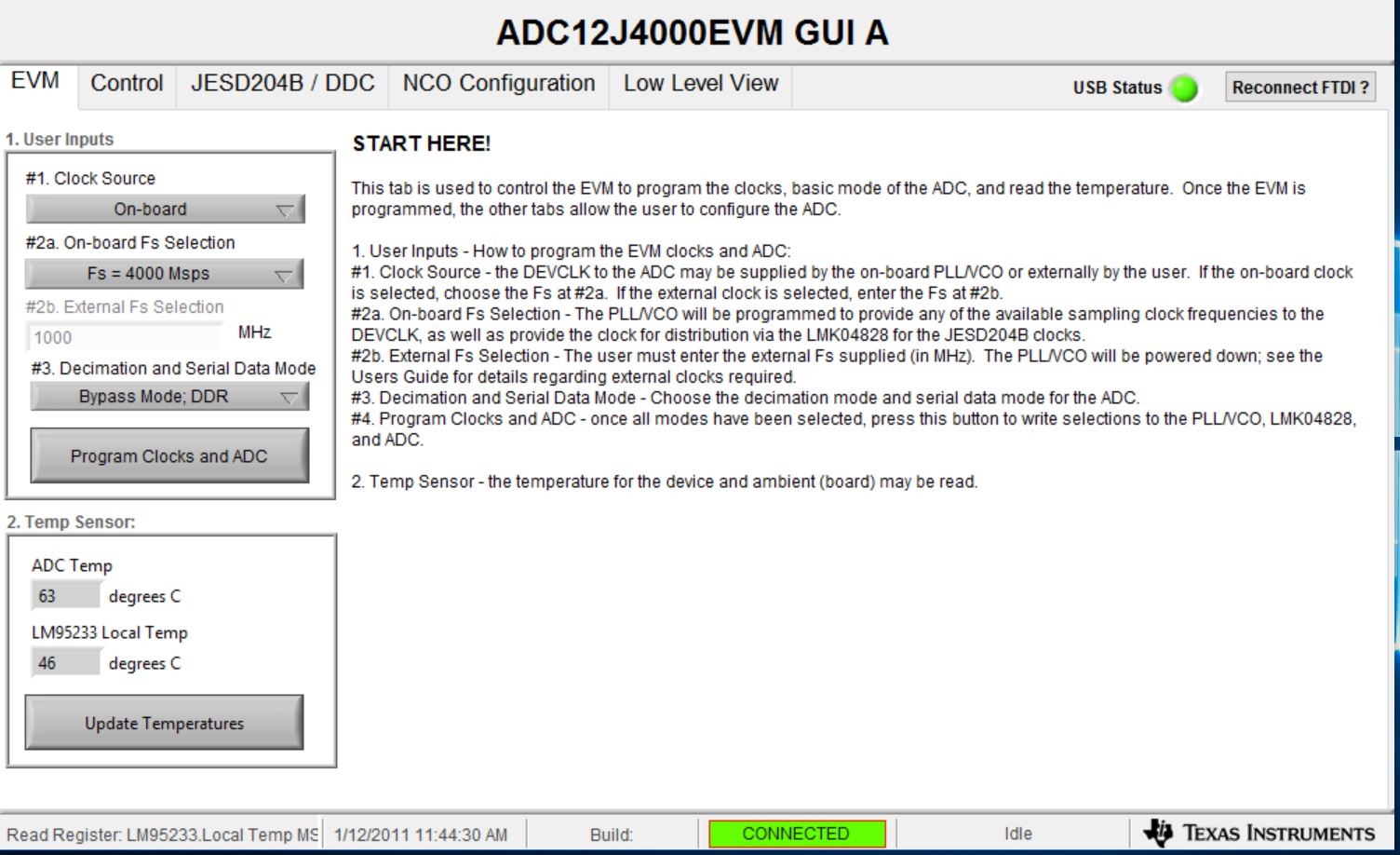

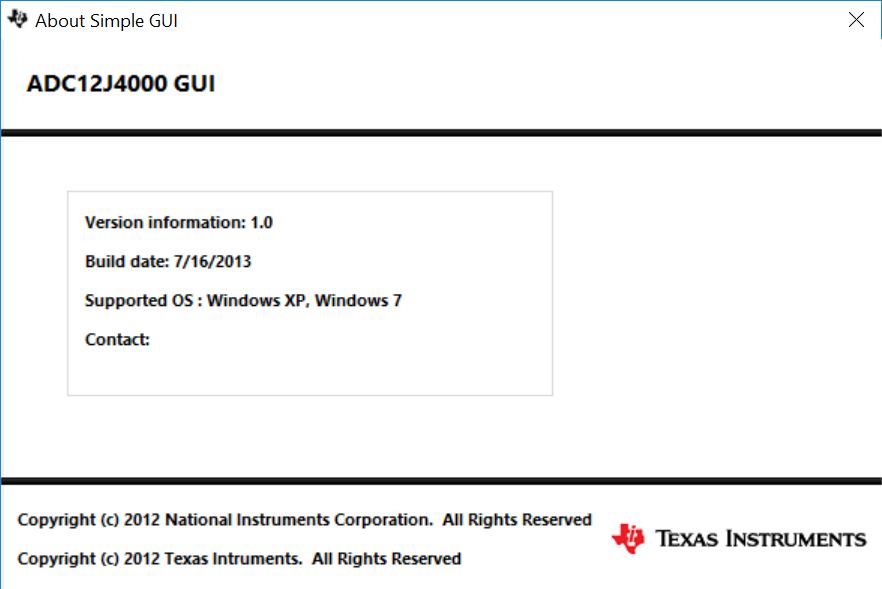

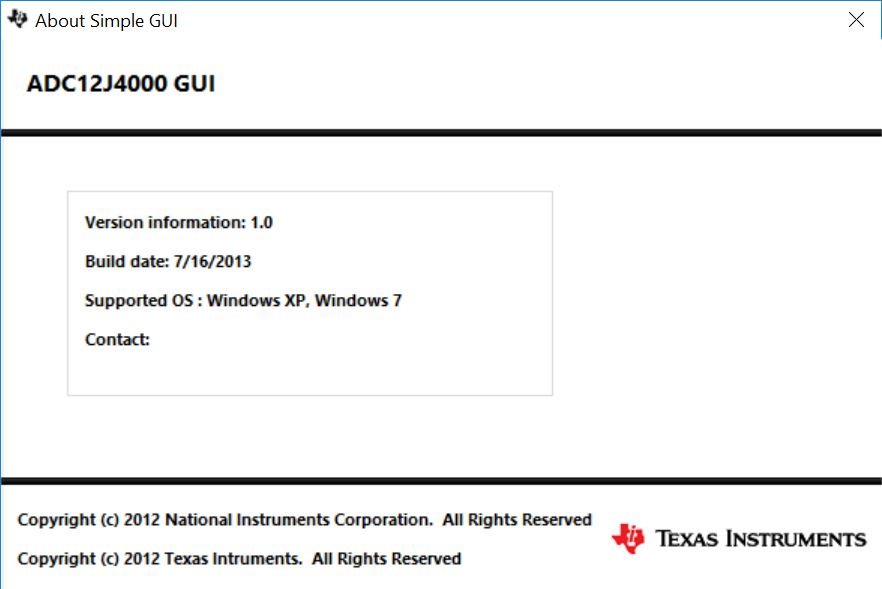

5) Below please find the version information for both pieces of software:

I have also tried this on a different machine, to confirm that it is not a problem with my software setup locally.

I will appreciate it dearly if you anybody can assist with this problem. Or steer me in the correct direction?

Kind Regards

Paul

over 8 years ago

0 jim s over 8 years ago

TI__Guru* 91947 points

Paul,

Please try the following steps:

Run HSDC Pro as administrator
Check TSW14J56RevD power supply – should be 5V/5A
Without connecting the ADC board to TSW board, try the steps done early by the user. At-least the FW should get downloaded without any issues.
If possible check with a Win 7 machine.

Regards,

Jim

0 Paul Herselman over 8 years ago in reply to jim s

Prodigy 30 points

Dear Jim, Thanks for the quick reply. I have tried administrator. I will attempt 2 & 3 soonest. I've limited the current to 900 mA from the PSU. I assume that was too little? With regards to point 4, I have executed this now on Windows 10 and 8. Can try it on 7 if all else fails.

Kind Regards
Paul

0 jim s over 8 years ago in reply to Paul Herselman

TI__Guru* 91947 points

Paul,

You are going to need at least 2A once the board is up and running.

Regards,

Jim

0 Paul Herselman over 8 years ago in reply to jim s

Prodigy 30 points

Dear Jim,

Increasing the current limit fixed the problem! I set the limit to 3.2 A, with a mean current usage of 1.6 A when in steady state.

Thanks for the quick help!

Kind Regards

Paul Herselman
