AFE5809: SPI clock frequency.

Naik

Intellectual 720 points

Part Number: AFE5809

Hello,

Can anyone tell me what is the recommended frequency for SCLK?

Thank you

over 8 years ago

0 Praveen Aroul over 8 years ago

TI__Mastermind 49986 points

Hello Vatsal,

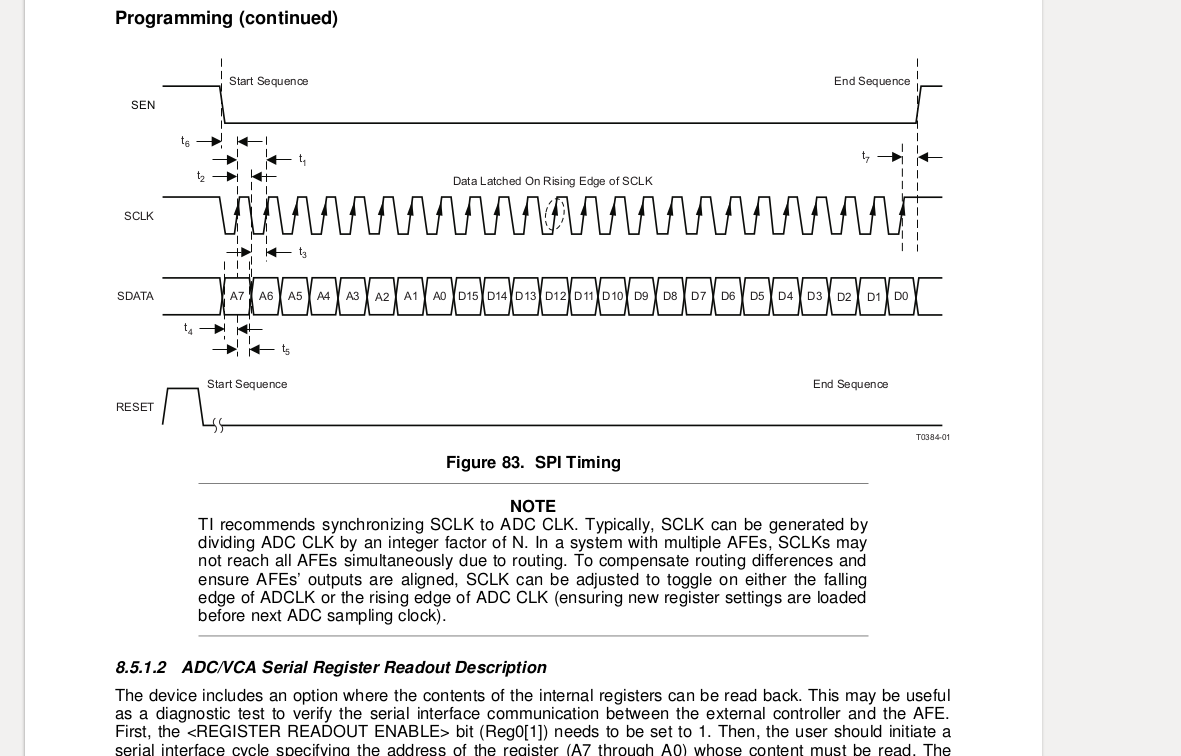

The max SPI clock frequency is 20 MHz. The typical SPI clock depends on the ADC CLK for your application since we recommend synchronizing SPI clock with the ADC clock. For AFE5809, the ADC CLK can be between 20 and 65 MHz.

0 Naik over 8 years ago in reply to Praveen Aroul

Intellectual 720 points

Hi,
What is the dividing factor GUI use? For on board osc, 40Mhz. Thanks

0 Praveen Aroul over 8 years ago in reply to Naik

TI__Mastermind 49986 points

Hello Vatsal,

The GUI does not use any dividing factor for the on-board osc. 40MHz.

0 Naik over 8 years ago in reply to Praveen Aroul

Intellectual 720 points

Thanks, I have 24 coefficient for Filter, but it has a negative number as well. How can I load the negative number into coefficient RAM? Do I have to transfer 2's complement?

0 Olu Sodipe over 8 years ago in reply to Naik

TI__Expert 4145 points

Hi Vatsal,

The filter coefficients are saved in 2's complement format as shown here on Page 70 of the datasheet.

Page 73 also goes into more detail on coefficient RAM mapping and configuration.

Sincerely,

Olu
