ADC12DL3200: IQ Data generation

Jayati Tibrewal

Prodigy 20 points

Part Number: ADC12DL3200

Is it possible to generate IQ data with ADC12DL3200?

Is there a separate mode to do the same?

over 7 years ago

0 Yusuf%20Agoro over 7 years ago

TI__Expert 4880 points

Hey Jayati,

technically the ADC12DL3200 does not generate IQ data. But in some sense you can do this manually if you can shift your data 90 degrees before it reaches the channel A.

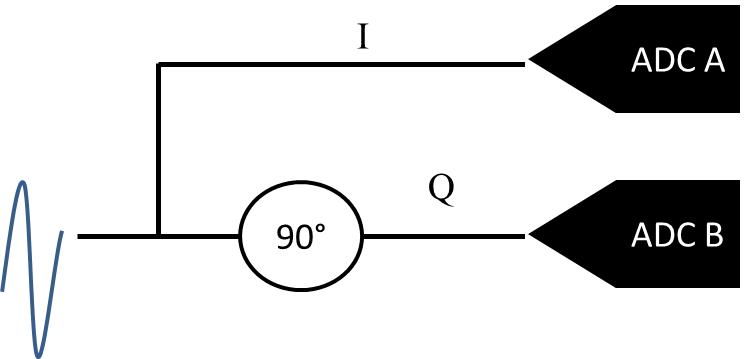

Reference the following picture to get a better idea of what i am talking about.

Yusuf

0 Jayati Tibrewal over 7 years ago in reply to Yusuf%20Agoro

Prodigy 20 points

Thanks Yusuf.
