ADS1298: GPIO 3 & GPIO 4 define

Eric Chen4

Expert 2370 points

Part Number: ADS1298

Hi,

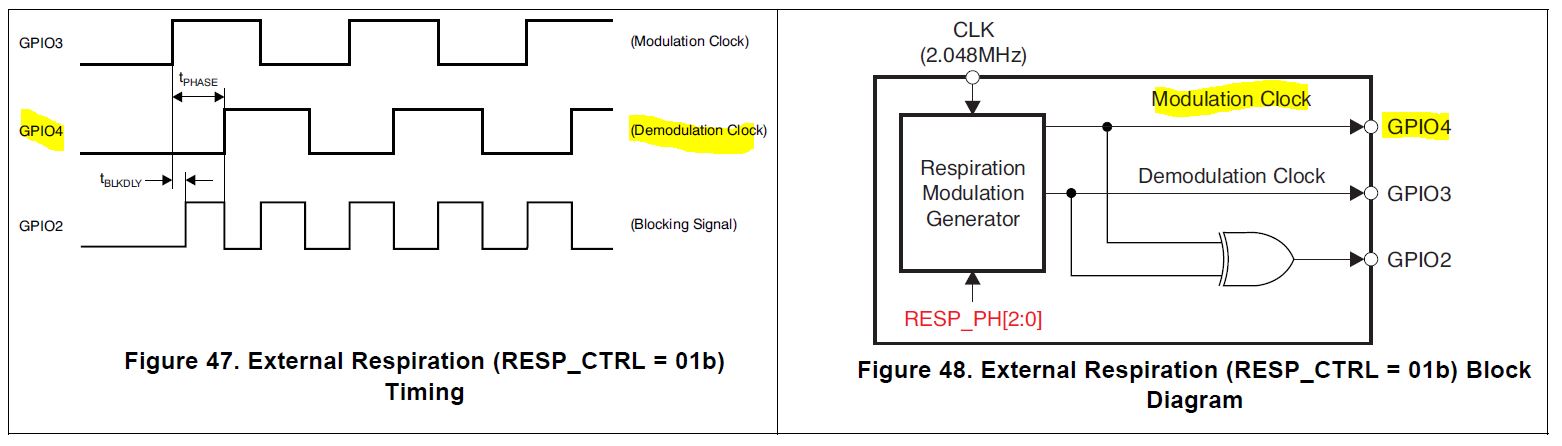

Please kindly help to check Fig 47 & Fig 48 GPIO define, what is correct as below?

Fig 47.

GPIO 3 --> Modulation Clock

GPIO 4 --> Demodulation Clock

Fig 48

GPIO 3 --> Demodulation Clock

GPIO 4 --> Modulation Clock

Thanks.

Regards,

Eric

over 8 years ago

0 Alexander Smith over 8 years ago

TI__Guru 61372 points

Hi Eric,

Thanks for your post!

I'm checking with the designer on this one, however it may take an extra day to get a response.

I think that Figure 48. is incorrect since it doesn't correspond to the paragraph above, figure 47. or figure 49.

I will let you know once this has been confirmed!

0 Alexander Smith over 8 years ago in reply to Alexander Smith

TI__Guru 61372 points

Hi Eric,

The configuration in Figure 47. is correct. I have made a note to have the datasheet revised.

Thanks for bringing this to our attention and have a good day!
