TSC2046E: Requesting circuit design review

Jongkap Oh

Intellectual 320 points

Part Number: TSC2046E

Hello,

I will use TSC2046IPW for 7-inch, 4-wire resistive touch panel in my new project.

So, I would like to ask to review my schematic.

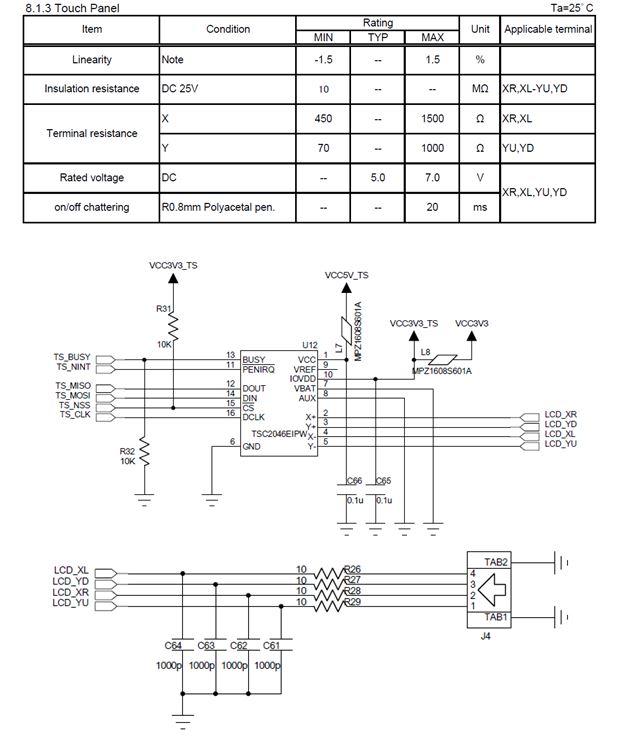

Please refer to following specs of touch panel and schematic and let me know your comment.

Thanks.

over 7 years ago

0 Collin Wells over 7 years ago

TI__Guru 65055 points

Hello,

The RC filters between the panel and the IC are likely included to reduce noise and also help with ESD protection. The TSC2046E has really strong ESD performance and likely does not require this much capacitance for protection but the filters may also be required for noise reduction. You'll need to balance the touch-screen settling time vs. noise performance as described on page 12 of the product datasheet in the "Touch Screen Settling" section.

0 Jongkap Oh over 7 years ago in reply to Collin Wells

Intellectual 320 points

Thank you for your advice.
