AFE4490: clock choose of AFE4490

Kane Zhang

Part Number: AFE4490

Dear Experts,

we use AFE4490 in our product now, and we want to use active oscillator as the clock, in datasheet we do not see any information of the clock choose

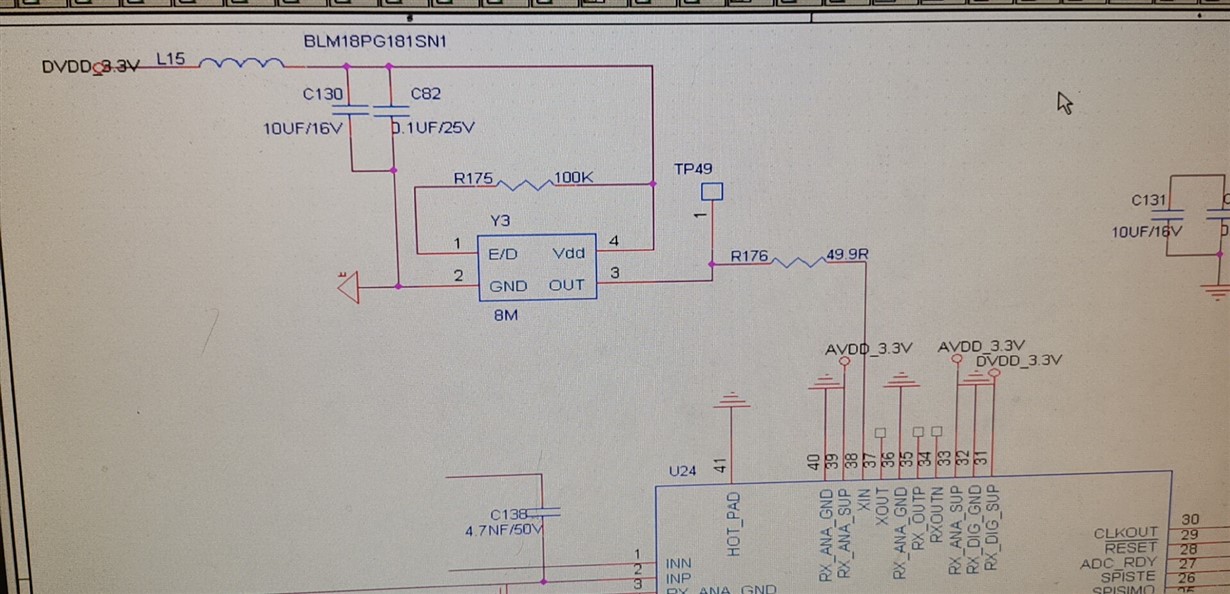

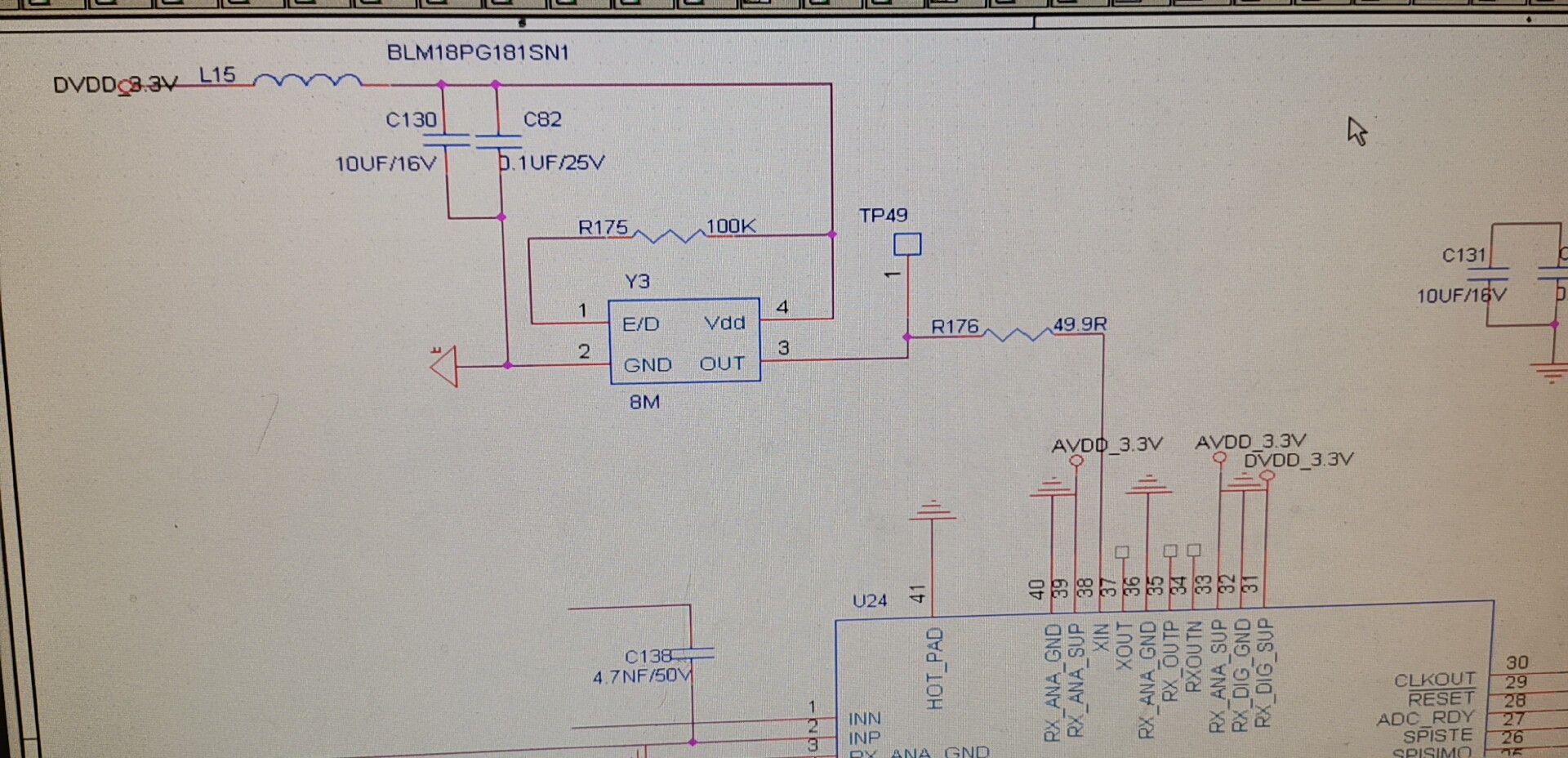

as the picture show in the attachment, Is it feasible to do so?

over 6 years ago

0 Prabin Yadav over 6 years ago

TI__Genius 12575 points

Hi Kane,

You can connect 8MHz crystal oscillator between XIN and XOUT pin of AFE4490 and reset XTALDIS (i.e. 0x23<9>) bit.

Regards,
Prabin.

0 Kane Zhang over 6 years ago in reply to Prabin Yadav

Intellectual 585 points

Dear Prabin,

I just want to know whether it is feasible according to the attachment I sent before?

please help!

thanks!!!

0 Kane Zhang over 6 years ago in reply to Prabin Yadav

Intellectual 585 points

I just want to know whether it is feasible according to the attachment I sent before?
please help!
thanks!!!

0 Kane Zhang over 6 years ago in reply to Prabin Yadav

Intellectual 585 points

Dear sir，
our customer just want to know whether it is feasible according to the attachment I sent before?

0 Prabin Yadav over 6 years ago in reply to Kane Zhang

TI__Genius 12575 points

Hi Kane,

They do not have a footprint for crystal in between XIN and XOUT pin of AFE4490, so they just can't install the component.
They have to update the schematic and get the new board. Please refer to figure 59 of the datasheet for details on how to connect crystal ( you also need two capacitors).

Regards,
Prabin.
