DAC108S085: Schematic review & Question

CHO SR

Genius 3415 points

Part Number: DAC108S085

Hi,

Customer is using DAC108S085.

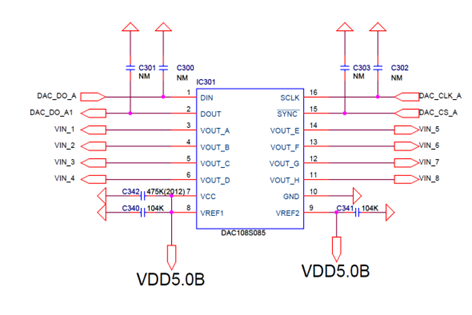

The DAC108S085 VCC and VREF1,2, the same 5.0V line of power are used as shown in the schematic.

Questions

1. Is there no problem with using the same power supply for VCC and VREF1 and 2?

2. Is it okay to connect VCC and VREF1 and 2 with a different power source?

Are there any additional guidelines for 3.1 and 2 methods?

over 4 years ago

0 Akhilesh K over 4 years ago

TI__Mastermind 19086 points

Hi,

Schematics wise I don't see any issues.

You can use VCC as reference for this device. Please be sure that the supply voltage should be stable and low noise, otherwise you will see a direct correlation of any change in supply to the output voltage. How are you generating this 5V supply? Is it coming from an LDO or a switching regulator?

If its a switching regulator, I don't recommend connecting the same to Reference pin.

Regards,

0 CHO SR over 4 years ago in reply to Akhilesh K

Genius 3415 points

Hi,

Sorry for the late reply.

The customer is using a 5V LDO.

If we use LDO, we will decide that there is no problem.

Thank you for your support.

0 Akhilesh K over 4 years ago in reply to CHO SR

TI__Mastermind 19086 points

Hi,

Make sure the LDO is of low noise, if that is critical for you.

Regards,
