ADC128S102QML-SP: Solder mask and solder paste examples or recommendations

Danilo A.

Hi Team,

A customer is requesting for a solder mask and solder paste examples or recommendations for the CFP (NAC) package. The mechanical datasheet has package dimensions but no recommended land pattern.

Regards,

Danilo

over 4 years ago

0 Cynthia over 4 years ago

TI__Mastermind 25020 points

Hello,

The footprint of the NAC package is the same as the industry standard (wide body) SOIC package.

This is only a difference in naming conventions that was used.

Regards

Cynthia

0 Danilo A. over 4 years ago in reply to Cynthia

TI__Mastermind 28740 points

Hi Cynthia,

Thank you for your response. I have checked the footprints of our wide body SOIC packages from the link below but it seems none has the same footprint with ADC128S102QML-SP. Can you please advise the recommended solder mask and solder paste for this device.

www.ti.com/.../searchtipackages.tsp

Regards,

Danilo

0 Danilo A. over 4 years ago in reply to Danilo A.

TI__Mastermind 28740 points

Hi Cynthia,

When I clicked the View options under the Design & development section of the product page, it opens a link to the Ultra Librarian application tool.

https://vendor.ultralibrarian.com/TI/embedded/?gpn=ADC128S102QML-SP&package=NAC&pin=16&sid=0175b2ea60a80003174057dc1b3603072044b06a0086e&c=1

I tried to generate the footprint from that application, however I can't verify if the footprint is correct because we don't have a software to open the files. Can you please confirm?

Regards,

Danilo

0 Cynthia over 4 years ago in reply to Danilo A.

TI__Mastermind 25020 points

Hello Danilo,

I will do some more research into the drawing packaged

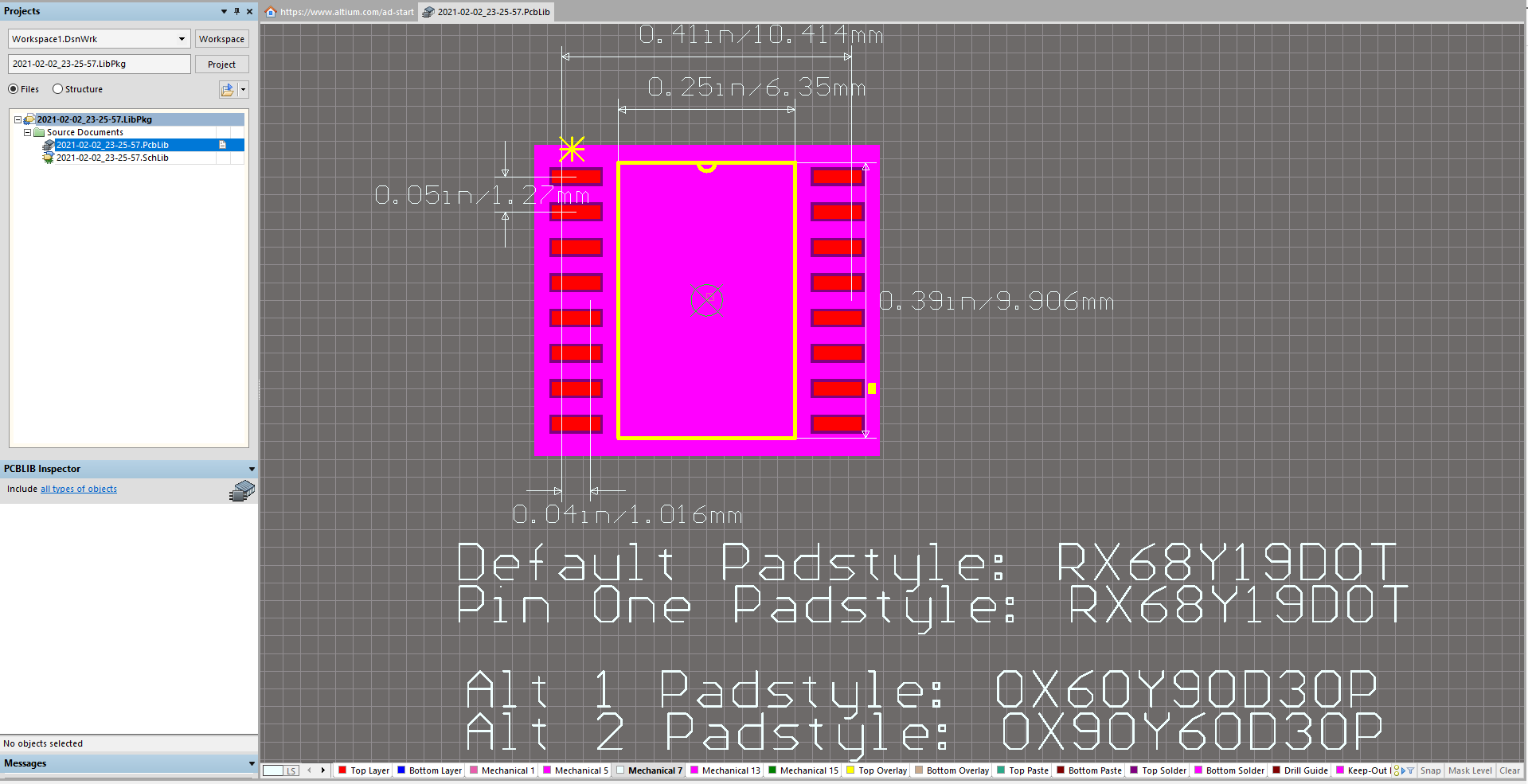

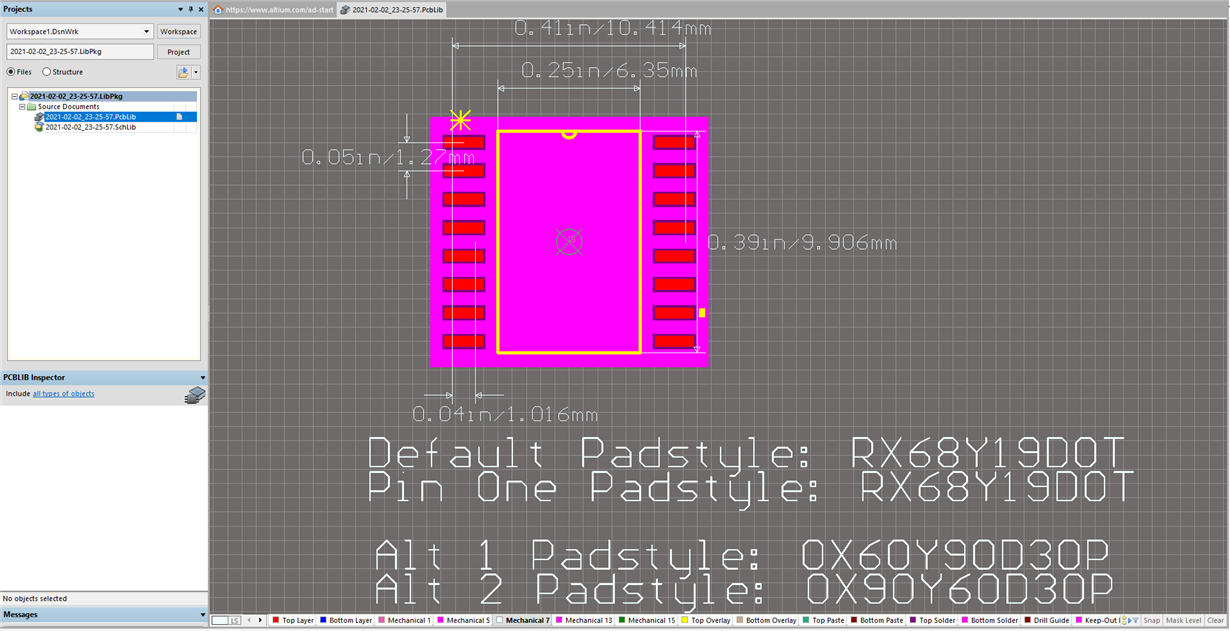

But I did download the package from Ultra Librarian, and it is the correct dimensions as the datasheet. I used Altium to verify this

Regards

Cynthia

0 Danilo A. over 4 years ago in reply to Cynthia

TI__Mastermind 28740 points

Hi Cynthia,

Thank you for the confirmation that the footprint from the Ultra Librarian is correct.

Regards,

Danilo
