DLP4710LC: CAD models that can display dimensional data

UNA

Part Number: DLP4710LC
Other Parts Discussed in Thread: DLP4710,

Hi,

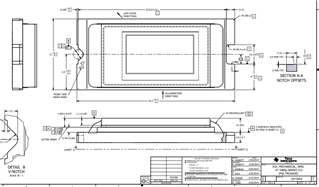

My customer needs 3D CAD data of the DLP4710LCFQL, they want CAD data that can be used to display dimensional drawings such as the following.
Is such data provided?　If so, which CAD format should we use?

Best Regards,
UNA

over 3 years ago

0 Cody Smith over 3 years ago

TI__Expert 3360 points

Hi UNA,

CAD/CAE can be found in the CAD/CAE section of the product page here: https://www.ti.com/product/DLP4710LC#cad-cae-symbols . Any CAD program which can accept the file format can be used.

Thank you,

Chris

0 UNA over 3 years ago in reply to Cody Smith

Mastermind 7980 points

Hi Chris,

I know about the CAD download site.
I would like to know which CAD data was used in generating the above schematic and is it provided.

Best Regards,
UNA

0 Cody Smith over 3 years ago in reply to UNA

TI__Expert 3360 points

Hi UNA,

I will reach out to our internal teams to ask for this information. Please allow one week for a response.

Thank you,

Chris

0 Mayank Khandelwal over 3 years ago in reply to Cody Smith

TI__Genius 9971 points

Hi UNA,

You can download the step file from the link that Chris shared above and open it with any step file viewer.

Note : It shows only the DMD and its physical dimensions.

Regards,

Mayank

0 UNA over 3 years ago in reply to Mayank Khandelwal

Mastermind 7980 points

Hi Mayank,

Do you mean that the CAD files used to generate the data listed in the datasheet, as mentioned above, are not provided?

Best Regards,
UNA

0 Vivek Thakur over 3 years ago in reply to UNA

TI__Mastermind 23070 points

Hello UNA-san,

Thank you for bringing this to our attention. We are updating the website to include the step file for DMD. It will take around 2 week for the update to reflect.

Meanwhile you can use the Step file available under DLP4710 DMD as proxy.

www.ti.com/.../DLP4710

regards,

Vivek

0 UNA over 3 years ago in reply to Vivek Thakur

Mastermind 7980 points

Hello Vivek-san,

Thank you for your reply.

Step file for DLP4710 DMD(www.ti.com/.../DLP4710) is not available, but DLP4710LC DMD is available.

The step file of the DLP4710LC does not show the unevenness of the actual mirror assembly, so we do not know the details of those parts.
This Step file is just a rectangle and does not depict the part where the mirror is implemented.
Customers need 3D CAD data that contains this information.

Best Regards,
UNA

0 Vivek Thakur over 3 years ago in reply to UNA

TI__Mastermind 23070 points

UNA-san,

Did you look at the design-tool-simulation tab and third link?

https://www.ti.com/product/DLP4710#design-tools-simulation

UNA said:
The step file of the DLP4710LC does not show the unevenness of the actual mirror assembly

Please help me understand this statement. What does customer wants to use the 3D model for? This will help be address your request better,

regards,

Vivek

0 UNA over 3 years ago in reply to Vivek Thakur

Mastermind 7980 points

Hello Vivek-san,

Vivek Thakur said:
Did you look at the design-tool-simulation tab and third link?

https://www.ti.com/product/DLP4710#design-tools-simulation

Sorry, I missed the link you mentioned. I was able to get it.

Is there any difference between the STEP file you proposed for DLP4710 and the DLP4710LC you are preparing now?
If there is no difference, I will guide the customer to the STEP file available on the DLP4710 website.

Best Regards,
UNA

0 Cody Smith over 3 years ago in reply to UNA

TI__Expert 3360 points

Hi UNA,

Please allow us until next week to answer this question while we look further into it.

Thank you,

Chris

+1 Vivek Thakur over 3 years ago in reply to Cody Smith

TI__Mastermind 23070 points

UNA-

The step file should be similar and you can use DLP4710 step file for DLP4710LC.

regards,

Vivek

0 UNA over 3 years ago in reply to Vivek Thakur

Mastermind 7980 points

Hi Vivek,

Thank you for your reply. I understood it.

Best Regards,
UNA

0 Mayank Khandelwal over 3 years ago in reply to UNA

TI__Genius 9971 points

UNA-san,

Thanks for the confirmation.

Regards,

Mayank
