DLPLCR67EVM: CAD provided does not match product

Eugene Ho

Part Number: DLPLCR67EVM

The product has white plastic layer between the ceramic and PCB. This is absent in the CAD and makes the depth of the thermal interface incorrect.

DMD CAD vs real DMD

0 Gary S over 3 years ago

Eugene -

Can you clarify which "CAD" file(s) you are referring to and where you obtained them.

Thanks,
Gary

0 Eugene Ho over 3 years ago in reply to Gary S

0 Matt Soucek over 3 years ago in reply to Eugene Ho

Hi Eugene,

Let me check with our mechanical team on your observation.

Regards,

Matt

0 Matt Soucek over 3 years ago in reply to Matt Soucek

Hi Eugene,

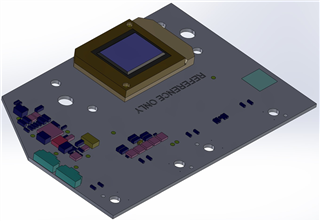

I verified that the link you found on ti.com is not up to date. The STP file should look like this:

The STP is rather large, so we are working on getting it loaded to ti.com.

Thanks for finding this, and we will get back to you when it is loaded properly.

Regards,

Matt

0 Matt Soucek over 3 years ago in reply to Matt Soucek

Hi Eugene,

We are working to get this file uploaded this week. Will keep you posted on the progress.

Matt

0 Matt Soucek over 3 years ago in reply to Matt Soucek

Hi Eugene,

While we wait for the file to get uploaded to ti.com, I thought I would share file with you directly. Please see the attached file.

Regards,

Matt

https://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/94/dlplcr67evm_5F00_mech_5F00_ptc_5F00_Oct11.STEP
