DLPC900: Lost USB communication

Xin Shu

Part Number: DLPC900

Dear forum members,

We have encountered an issue for the DLPC900 control board of DLP LightCrafter 6500. The DLPC900 control board cannot be detected by the PC via USB connection. When connected to power, the D8 ‘+12V Good’ and D9 ‘POWERGOOD’ LEDs can turn green, but the D6 ‘MASTER GRN’ LED did not shine, as shown in the image below. Moreover, the DLPC900ZPC chip on the control board got hot in a short time. We have tried different PCs but all failed to discover the device.

Do you have any suggestions for fixing this problem? Thanks a lot for your help!

over 2 years ago

0 made4engineering over 2 years ago

TI__Mastermind 27605 points

Thanks for reaching out and using the E2E forums. An expert from our team will review the thread and get back to you shortly.

0 Maxine Cabrasawan over 2 years ago

TI__Expert 3905 points

Hello,

Welcome to the E2E forum! Thank you for your business.

Which firmware are you currently using? Where did you get your firmware?

Best,

Maxine

0 Xin Shu over 2 years ago in reply to Maxine Cabrasawan

Prodigy 20 points

Hi Maxine,

Thank you for your reply! We are using the default firmware that came with the board when we bought it, we have not changed the firmware ourselves. I can't tell the exact firmware version as the control board can't be detected by the computer now. With the default firmware, the board worked fine before. But after one day, the board can no longer be detected by the PC via USB. Later we found out that the flex cable connectted to the DMD was broken, we replaced it with a good one, but the computer still did not detect the control board.

Best Regards,

Xin

0 Xin Shu over 2 years ago in reply to Xin Shu

Prodigy 20 points

Hi Maxine,

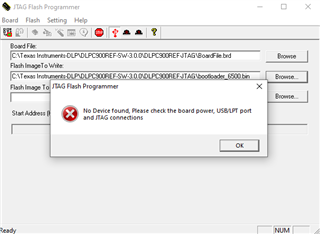

I also reprogram the bootloader image into the flash using JTAG, but the PC can not detect the control board. Moreover, there is a protrusion on the DLPC900ZPC chip, I suspect that the chip is burnt out. May I ask your opinion and suggestions about this problem?

Best Regards,

Xin Shu

0 Maxine Cabrasawan over 2 years ago in reply to Xin Shu

TI__Expert 3905 points

Hello Xin Shu,

Thank you for the information. The protrusion likely indicates thermal damage from when the flex cable originally became damaged. When was this board purchased?

Best,

Maxine

0 Xin Shu over 2 years ago in reply to Maxine Cabrasawan

Prodigy 20 points

Hi Maxine,

Thanks again for your reply, We bought it at 2019.

Best Regards,

Xin Shu

0 Maxine Cabrasawan over 2 years ago in reply to Xin Shu

TI__Expert 3905 points

Hello Xin Shu,

Unfortunately, due to the thermal damage, the controller no longer functions correctly and will not recognize any devices. In order have a functioning board, there are two options: a new DLPC900 controller is purchased and a board house replaces the damaged chip on this EVM, or a new EVM is bought.

Kind Regards,

Maxine

0 Xin Shu over 2 years ago in reply to Maxine Cabrasawan

Prodigy 20 points

Hi Maxine,

Okay, that's the only way. We continued experiments with a controller from another EVM at last. Thanks so much for your help.

Best Regards,

Xin Shu
