DLP4500: DLP direction of mirror when it is black.

Hiroyasu Tazawa1

Part Number: DLP4500

HI,

I have a question about the mirror during the period when the LED is not bright.

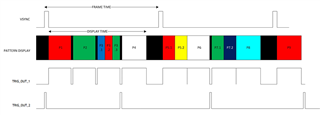

During the period when the LED in the figure below is not bright(black), does the ON/OFF state of this mirror remain the direction of the previously mirror?

Best Regards

over 2 years ago

0 Austin Snyder over 2 years ago

TI__Genius 12785 points

Hello User,

Welcome back to the E2E forum and thank you for your interest in DLP® technology!

The mirror will likely not remain in the OFF state during this black period. If a light is shown on the mirror, it can be seen moving to ON state before moving back to an OFF state.

Regards,

Austin

0 Hiroyasu Tazawa1 over 2 years ago

Guru 12350 points

Hi, Austin

Thank you for your reply.

This question comes from making the duty cycle 50/50. Even in the case of black, I understand that I have to think about the duty cycle.
If We don't know the direction of the mirror when it's black, is it possible to set ON/OF of the mirror when it's black?

Best Rregards
Tazawa

0 Austin Snyder over 2 years ago in reply to Hiroyasu Tazawa1

TI__Genius 12785 points

Hello Tazawa-san,

Unfortunately it will not be able to force the mirror one way or the other. I should also correct what I said previously. The mirrors will be in an indeterminate state during the non-illuminated period.

Can you speak on what you are hoping to do with the dark time?

Regards,

Austin

0 Hiroyasu Tazawa1 over 2 years ago in reply to Austin Snyder

Guru 12350 points

Hi, Autin-san

Thank you for your reply.

As I told you this question comes from making the duty cycle 50/50.
We should estimate ON/OFF time of mirror then we would like to know mirror state when it is black.
I undestand it is indeterminates but Could you tell me how to estimate the ON/OFF time when it is black.

Best Regards
Tazawa

0 Lori Wang over 2 years ago in reply to Hiroyasu Tazawa1

TI__Genius 11565 points

Hello Tazawa-san,

Can you tell us the specific purpose to know the ON/OFF timing of the mirror?

We may not able to estimate the timing, and you can only read back the DMD mirror status.

Regards,

Lori

0 Hiroyasu Tazawa1 over 2 years ago in reply to Lori Wang

Guru 12350 points

Hi, Lori

This reason why our customer want to estimate Duty cycle.
Please see Figure7-1 in DLP4500 Datasheet.
We understand the Derating Curve in Figure7-1 comes from Duty cycle and temperature.

We think Duty cycle in Figure 7-1 include black timing. Is it correct ?
then we would like to know ON/OFF time when it is black.

Best Regards
Tazawa

0 Austin Snyder over 2 years ago in reply to Hiroyasu Tazawa1

TI__Genius 12785 points

Hello Tazawa-san,

There is not way to tell if the mirror state is on or off during the dark time as it will depend on a number of factors including the previous data displayed on the DMD. By describing the mirror state as indeterminate, I mean to say that the state cannot be determined.

I will, however, look into how Figure 7-1 correlates to the non-illumination time.

Regards,

Austin

0 Hiroyasu Tazawa1 over 2 years ago in reply to Austin Snyder

Guru 12350 points

Hi, Austin

Thank you for your reply.
I understand the situation.
It would be appriciated in advanced if you could work how Figure 7-1 correlates to the non-illumination time.

Best Regards
Tazawa

0 Austin Snyder over 2 years ago in reply to Hiroyasu Tazawa1

TI__Genius 12785 points

Tazawa-san,

Certainly. I am hoping to hear back from my team soon. Please allow me time to coordinate.

Regards,

Austin

0 Hiroyasu Tazawa1 over 2 years ago in reply to Austin Snyder

Guru 12350 points

Hi, Austin-san

Thank you. We got it.

Best Regards
Tazawa

0 Austin Snyder over 2 years ago in reply to Hiroyasu Tazawa1

TI__Genius 12785 points

Tazawa-san,

Thank you for your understanding.

Regards,

Austin

+1 Austin Snyder over 2 years ago in reply to Hiroyasu Tazawa1

TI__Genius 12785 points

Tazawa-san,

I have discussed with my colleagues. Figure 7-1 only applies to the illuminated periods as these will be the times when the DMD is receiving temperatures from the LEDs. The non-illuminated periods should not be considered when calculating the Max DMD Temperature.

Kind regards,

Austin
