DLP4710EVM-LC: Pattern Sets don't work fine

Uryyy

Part Number: DLP4710EVM-LC
Other Parts Discussed in Thread: DLPC3479

Hello TI,

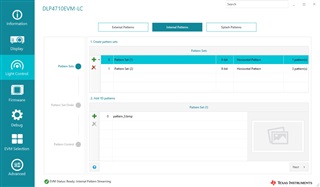

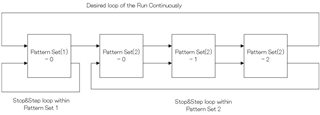

I registered Pattern Set(1) : 1 picture and Pattern Set(2) : 3 pictures. And then, I'd projected total 4 pictures in a low by [Run Continuously]. Next, I tried Pause and Step regarding Pattern Set(2) that has 3 pictures. However,that can show only 1st picture of the 3 pictures and [step] doesn't work. In other words, Pattern Set(2) - 0 doesn't switch the next Pattern Set(2)-1 as shown the below drawing. (Only Pattern Set(2)-0 is displayed.)

Could you please try the reproduction or let me know your comment about this issue?

By the way, Pattern Set(1) : 2 or more pictures + Pattern Set(3) : 3 pictures work fine.

Thanks&Regards,

Uryyy

over 1 year ago

0 Uryyy over 1 year ago

Expert 1890 points

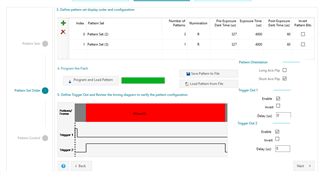

The details of the configurations.

0 Maximus Rusi over 1 year ago in reply to Uryyy

TI__Expert 7105 points

Hello,

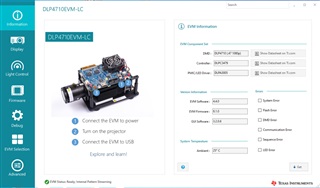

I see you are currently using fw version 8.1.0. I would first suggest updating your firmware to the latest version (v8.1.1), which can be found on the TI DLP Pico FW Selector Tool. Additionally could you provide the test patterns you are trying to use?

Best,

Maximus

0 Uryyy over 1 year ago in reply to Maximus Rusi

Expert 1890 points

Hi, Maximus,

I will try the latest ver, too. Here are the patterns I used. Could you reproduce that?

Regards,

Uryyy

test_4patterns.zip

0 Uryyy over 1 year ago in reply to Uryyy

Expert 1890 points

I tried ver8.1.1, however it doesn't improve the problem.

0 Maximus Rusi over 1 year ago in reply to Uryyy

TI__Expert 7105 points

Hello,

I noticed the patterns you sent me are actually 1-bit patterns. When you setup your pattern sets make sure to choose 1-bit horizontal rather than 8-bit horizontal.

I seem to have gotten each pattern to display by setting as 1-bit horizontal and swapping the order such that the pattern set with only one pattern is projected second. Can you try and see if this works on your end?

Best,

Maximus

0 Uryyy over 1 year ago in reply to Maximus Rusi

Expert 1890 points

Hi,

I sent 1bit patterns to you because of distinguishing clearly. When we use even actual 8bit patterns, the problem occurs.

Regards,

Uryyy

0 Maximus Rusi over 1 year ago in reply to Uryyy

TI__Expert 7105 points

Hello,

Were you able to try switching the order? Otherwise give me some time to look deeper into this issue.

Thanks,

Maximus

0 Uryyy over 1 year ago in reply to Maximus Rusi

Expert 1890 points

Yes, I was able to look at this problem on the EVM. If you could stop at Pattern Set(2) in [Run Continuously] that is the random selection of Pattern Set(1) or Pattern Set(2), you would not be able to see the next step patterns in Pattern Set(2). If you need more information of the reproduction, please let me know that.

0 Maximus Rusi over 1 year ago in reply to Uryyy

TI__Expert 7105 points

Hello,

Please allow me a few days to look into the issue some more.

Best,

Maximus

0 Maximus Rusi over 1 year ago in reply to Maximus Rusi

TI__Expert 7105 points

Hello,

I am able to recreate the same issue on my end. Is it possible in your application to combine pattern set 1 and pattern set 2? In this case each pattern is displayed properly.

Best,

Maximus

0 Uryyy over 1 year ago in reply to Maximus Rusi

Expert 1890 points

Hello,

I can avoid this issue by combinations of the other patterns. I would like to get TI's failure that the issue is the FW bug. If so, I'm going to convince it to my customer.

Regards,

Uryyy

0 Maximus Rusi over 1 year ago in reply to Uryyy

TI__Expert 7105 points

Hello Uryyy,

We are still tracking down why this issue is happening, but we are able to reproduce it on our end.

Thanks,

Maximus

0 Uryyy over 1 year ago in reply to Maximus Rusi

Expert 1890 points

Hello Maximus,

Thank you for your cooperation. My customer wants to know the root cause. If you can figure out the clue, could you please let me know it?

Regards,

Uryyy

0 Maximus Rusi over 1 year ago in reply to Uryyy

TI__Expert 7105 points

Hello Uryyy,

Once we have figured out the root cause we will do our best to relay that information.

Best,

Maximus

0 Uryyy over 1 year ago in reply to Maximus Rusi

Expert 1890 points

Hello Maximus,

How about the progress of the root cause investigation? My customers coincidentally found the latest firmware(v8.3.0) updated recently and it solved the issue. I'd like to know the notification to update the latest firmware. At least, I hope the introduction top page of the DLPC3479 inform the firmware update.(We are able to know only by the Pico Firmware Selector for now.)

Regards,

Uryyy

0 Maximus Rusi over 1 year ago in reply to Uryyy

TI__Expert 7105 points

Hello Uryyy,

I did not know this new firmware release solved this issue, thank you for informing me. Looking at the release notes under Updates in this release, mentioned is "BUG fix : In Internal Pattern display, patterns in pattern set are not advancing, only 1st pattern is shown", my assumption is this contributed to the root cause of the issue and has now been addressed. We recommend updating to the latest version of the firmware.

Best,

Maximus
