DLP9500: How to mount DMD properly with Thorlabs mounts?

user4998455

Part Number: DLP9500

Hi, all

I want to use DLP9500 with laser source and other optical devices. However, angle(or altitude) of DMD is hard to adjust, which should make incident and reflective beam in the same height. Have anyone worked

with DMD in your optical system ? What's the way you fix your DMD and adjust its altitude ?

Best regards

over 8 years ago

0 Fizix over 8 years ago

TI__Guru 54605 points

Hello User,

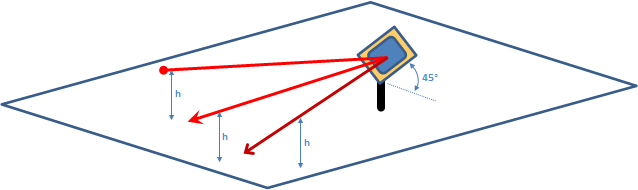

Typically for the Discovery 4100 DMD, we mount them with the plane of the DMD vertical and the bottom of the DMD rotated 45° so that the input beam, projected beam, and dump beam are all in the same plane parallel to the breadboard/tabletop:

I hope this helps,

Fizix

0 user4998455 over 8 years ago in reply to Fizix

Prodigy 50 points

Oh, that's very helpful! Thank you

0 Fizix over 8 years ago in reply to user4998455

TI__Guru 54605 points

Hello User,

You are welcome. If this answered your question please "Verify" the post with the diagram as the answer.
