DLP4500: AC timing for FLASH INTERFACE

Hiroyasu Tazawa1

Part Number: DLP4500
Other Parts Discussed in Thread: DLPC350, DLPC900

Hi,

Let me talk about DLPC350.

We need information for DLPC350 Flash timing.
For example how much time does DLPC350 need after DLPC350 issue read enable.
My cusotmer need to estimate how much design margin.

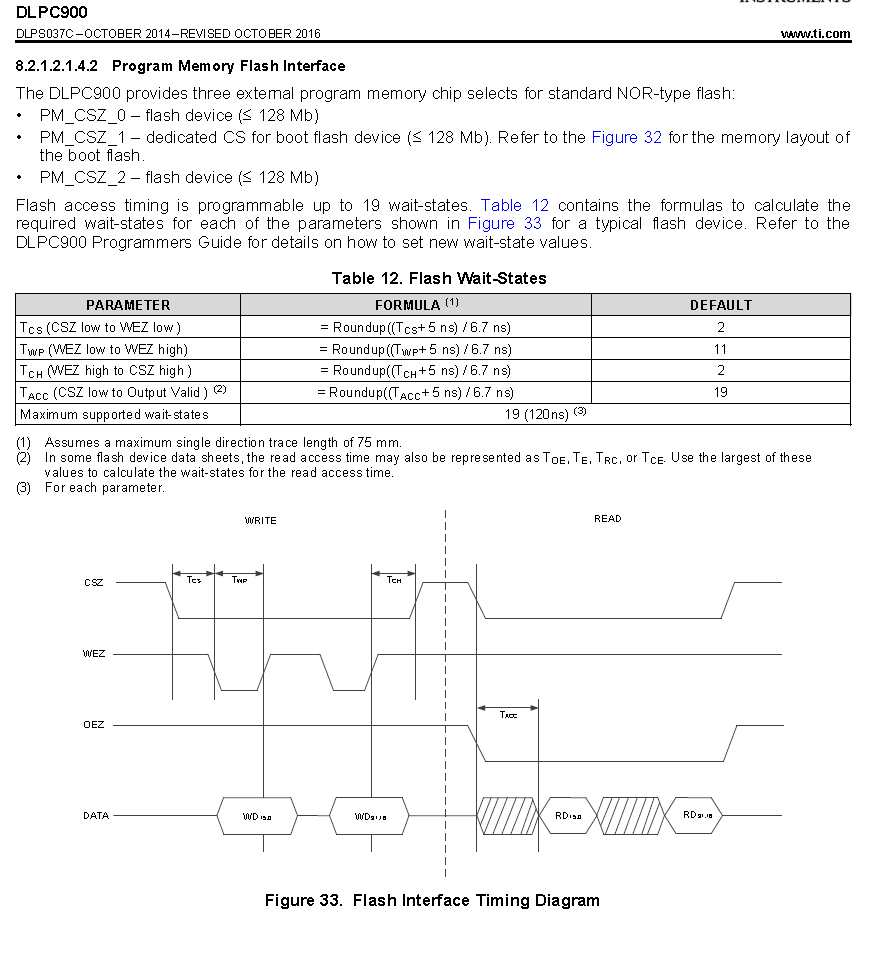

We want specification like DLPC900

Best Regards
Hiroyasu

over 6 years ago

0 Azad over 6 years ago

TI__Expert 5485 points

Hi Hiroyasu

Our team will get back to you soon regarding your query.

Regards
Azad

0 Hirak Biswas over 6 years ago in reply to Azad

TI__Genius 10925 points

Hi Hiroyasu,

Unlike DLPC900, the DLPC350 flash timings are hardcoded and not modifiable. Here is a table containing the absolute timings you required.

PARAMETER	TIMING
Tcs (CSZ low to WEZ low)	33.5ns
Twp (WEZ low to WEZ high)	67ns
Tch (WEZ high to CSZ high)	53.6ns
Tacc (CSZ low to Output Valid)	100.5ns

Hope this resolves your query.

Regards,
Hirak.
