DLP9000: HDMI and DP noise

Pourya Torabi

Prodigy 180 points

Part Number: DLP9000
Other Parts Discussed in Thread: DLPC900

Hi everyone

I'm using DLP projectors for 3d printing, my problem is that, sometimes, the projector image shifts a little bit, I have checked and changed mechanical parts and even PC but i still have problem, I think the problem arises from HDMI or DP communication. I changed my cable to a higher quality one and it reduced the noise but not completely, Can anyone give me some tips to completely omit these noise?

over 6 years ago

0 ykc over 6 years ago

TI__Expert 4530 points

Hi Pourya,

Welcome to the DLP section of TI E2E community. Can you elaborate by sharing some pics.

-ykc

0 Fizix over 6 years ago in reply to ykc

TI__Guru 54705 points

Hello Pourya,

Could you post an image showing the kind of noise you are seeing at the DMD?

Fizix

0 Pourya Torabi over 6 years ago in reply to ykc

Prodigy 180 points

Hi,

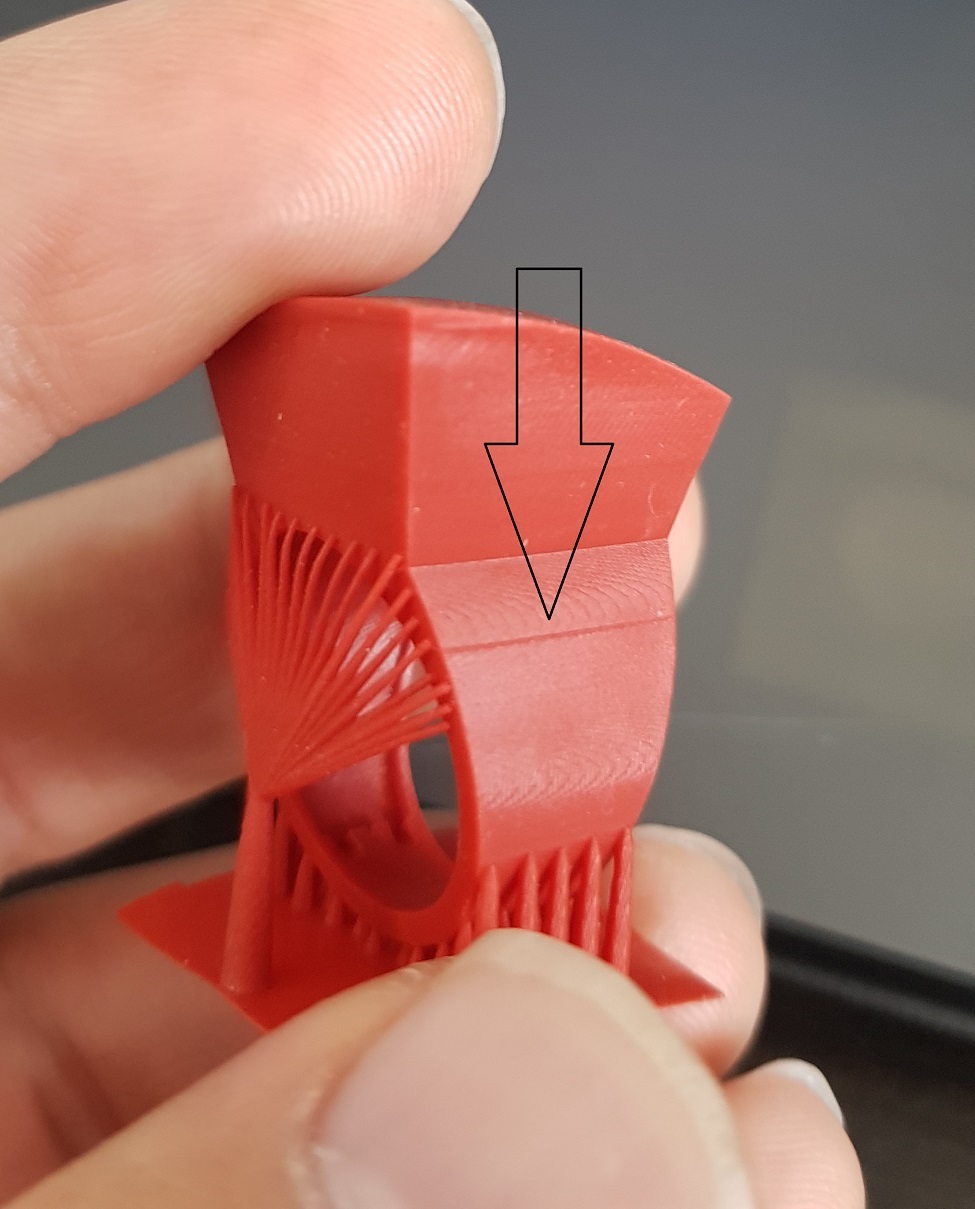

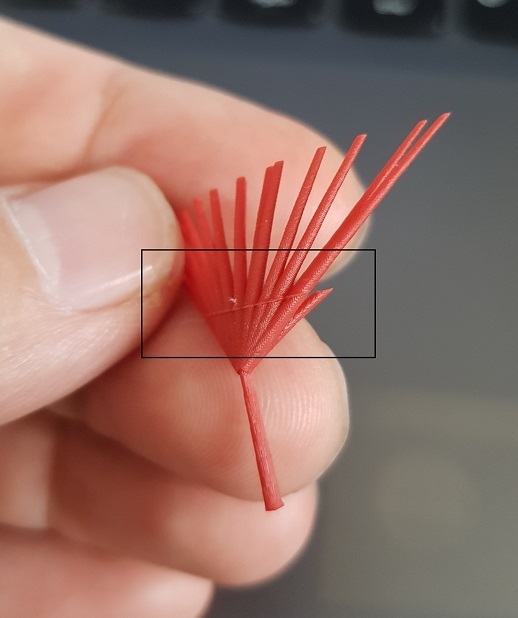

Here are some pics:

0 Fizix over 6 years ago in reply to Pourya Torabi

TI__Guru 54705 points

Hello again Pourya,

I assume you are using the DLPC900 to drive the DLP9000. Is this correct?

If so are you using the DLPLCR9000EVM or boards of your own design?

Also, What software are you using to generate your 3D "slices" and what software are you using to send the images out over HDMI/DP?

How many pixels wide would you estimate the "shift" to be?

Is the shift along the long or short axis of the DMD? In other words if it were a TV image would the shift be horizontal or vertical?

Fizix

0 Fizix over 6 years ago in reply to Fizix

TI__Guru 54705 points

Hello Pourya,

Please let us know if you still need further assistance on this. Thank you.

Fizix
