DLPC3479: Circuit diagram between DLPC3479 to DLP4710

user534742

Part Number: DLPC3479
Other Parts Discussed in Thread: DLP4710, , DLP4710EVM-LC

Hello,

1) Could you provide the circuit diagram between DLPC3479 to DLP4710 of the DLP4710EVM-LC.

I couldn't find it on your site.

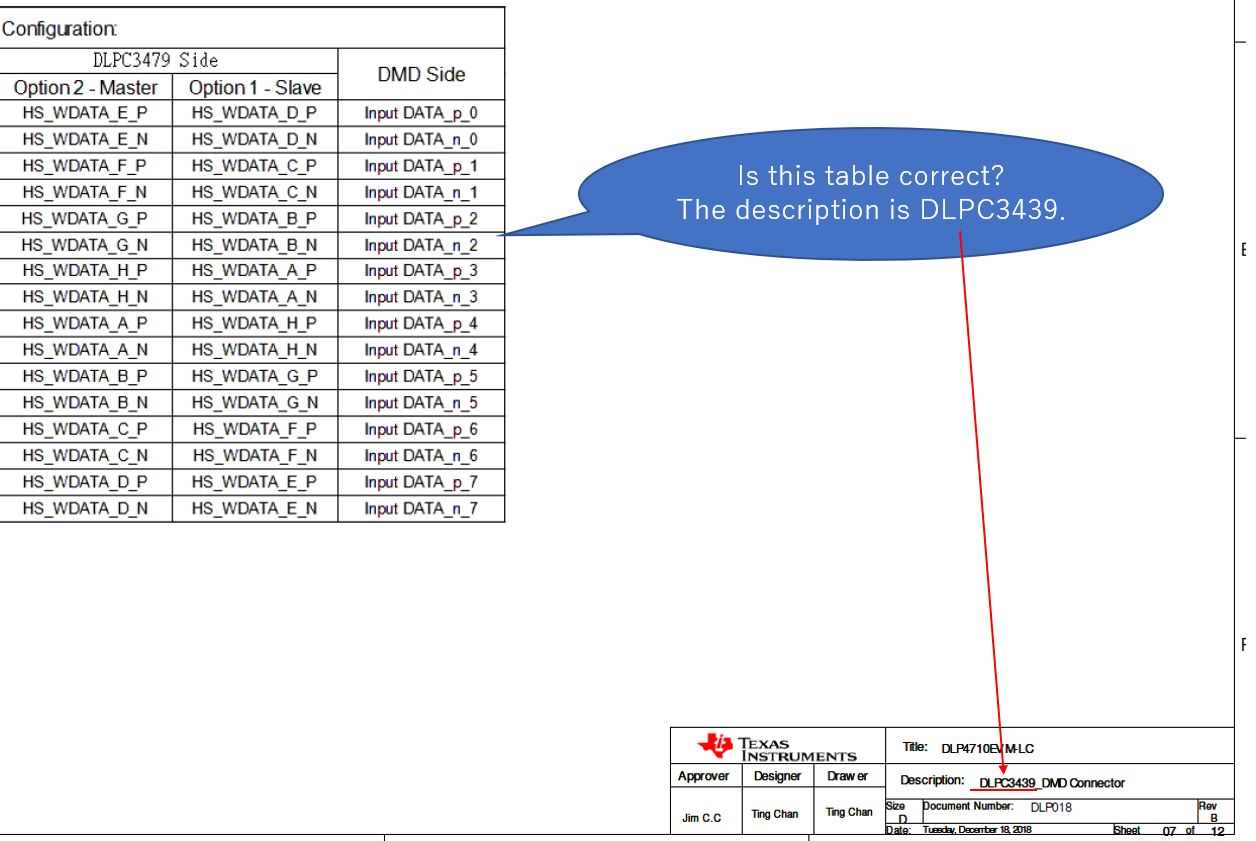

2) The table in sheet 7 of DLP4710EVM-LC_SCH_2019115.pdf is correct ?

It's just a confirmation since there is a contradiction.(please see below)

0 Kyle Rakos over 5 years ago

Hello,

You can find the schematic on our reference design here. Is something missing that you need?

And could you please re-upload the image? It appears to have not worked.

Thanks,

Kyle

0 user534742 over 5 years ago in reply to Kyle Rakos

Hello Kyle,

1) It doesn't include the schematic of DMD mounting pcb and flexible cable. I want to see them.

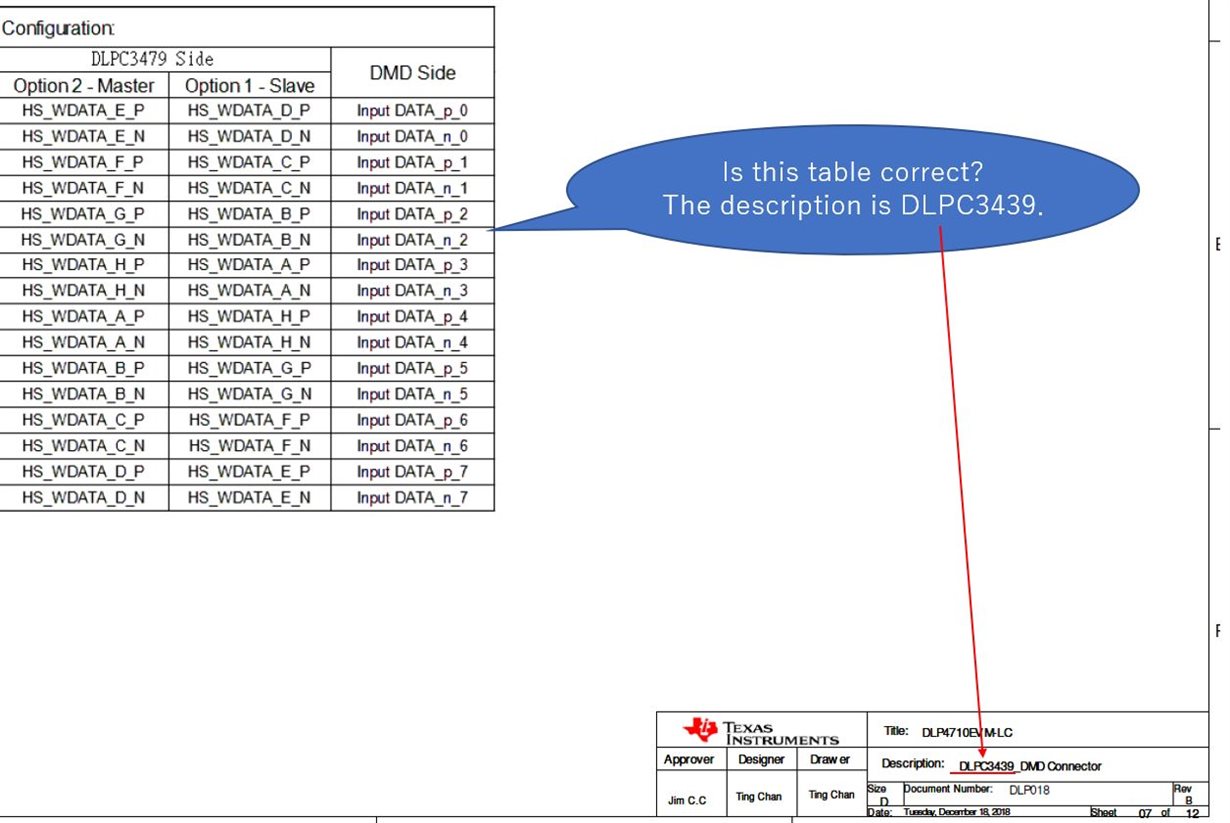

2) I will upload the image again.

I just want to check if the table contents are correct.

0 Navneet Singh over 5 years ago in reply to user534742

Hi User,

Please see this thread looks like same as your query 2 : https://e2e.ti.com/support/dlp/f/94/t/853628?

Let me check your first query and get back to you soon.

Thanks,

Navneet
