DLPC350: An error occurred using GUI when sending the combination of bit depth pattern to the dmd on pattern sequence mode

Semicolon

Part Number: DLPC350

Hi,

I am using the LightCrafter 4500 in order to send pattern sequence to the dmd. I have 9 24-bit images loaded on flash memory. I created the solution of 24 combination of bith depth for each of 9 images.I used to work perfectly. However, recently when I apply the solution, and then try to send it, the lightcrafter shows an error that it's stopped working that I need to close the program.

I was wondering whether you have ideas about how to solve this problem.

Thank you and Best regards,

Sis

over 5 years ago

0 Kyle Rakos over 5 years ago

TI__Mastermind 20045 points

Hello,

Could you please share a screenshot of the error message? Cold you please also let us know the version of the operating system, GUI, and EVM firmware?

Thanks,

Kyle

0 Semicolon over 5 years ago in reply to Kyle Rakos

Intellectual 460 points

HI Kyle,

Thank you for the reply. I will get back to you soon with the required information.

Thank you,

Sis

0 Semicolon over 5 years ago in reply to Kyle Rakos

Intellectual 460 points

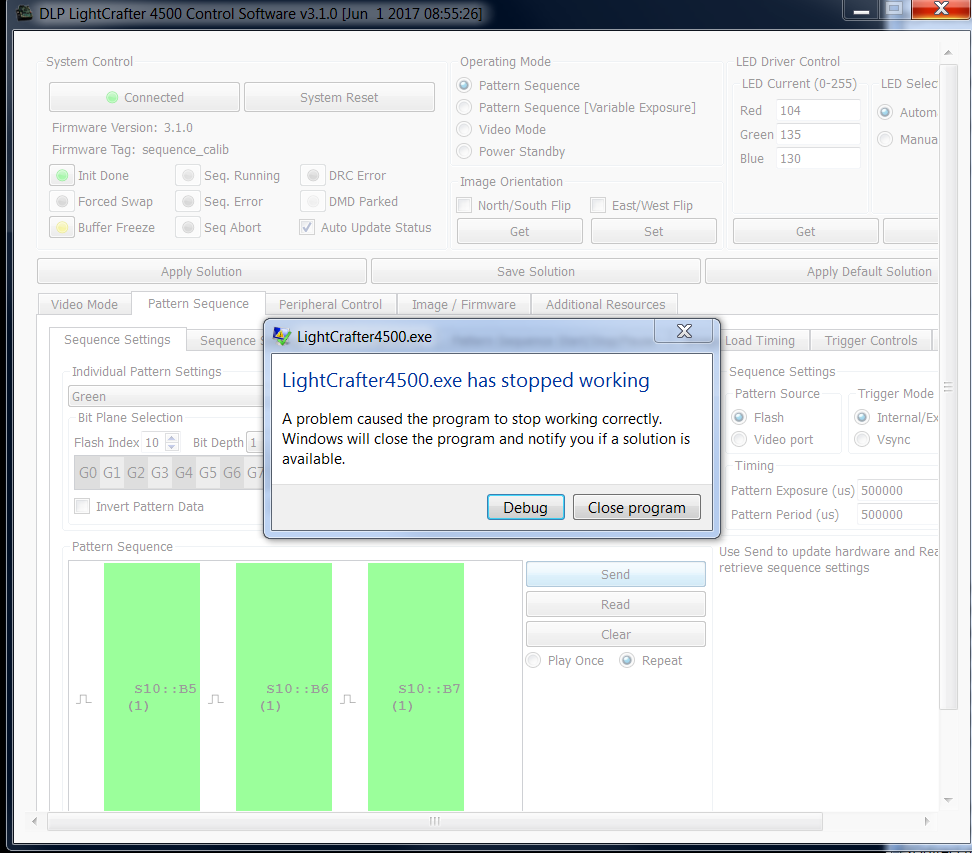

Hi again,

We use windows 7 and GUI version 3.

EVM that we use is DLP lighctrafter 4500 driver board including dlpc350 dmd.

Thank you in advance for your help.

Sis

0 Semicolon over 5 years ago in reply to Semicolon

Intellectual 460 points

To add something: the GUI stops working when adding more than 6 24-bit images.

Sis

0 Hirak Biswas over 5 years ago in reply to Semicolon

TI__Genius 10925 points

Hi Sis,

Could you kindly provide us the INI of your settings so that we can experiment and reproduce on our side?

Thanks & Regards
Hirak.

0 Hirak Biswas over 5 years ago in reply to Hirak Biswas

TI__Genius 10925 points

Hi Sis,

do you still need the answer to your question? I'll be tentatively closing this thread due to inactivity, you can reopen anytime.

Thanks & Regards,

Hirak.

0 Semicolon over 5 years ago in reply to Hirak Biswas

Intellectual 460 points

https://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/94/pattern012345678_5F00_24bit_5F00_8redch.iniHi Hirak,

Here is the ini file.

Thank you,

Sarah

0 Hirak Biswas over 5 years ago in reply to Semicolon

TI__Genius 10925 points

Hi Sarah,

kindly provide us some time, we will be experimenting on our side and get back to you soon!

Thanks & Regards,

Hirak.

0 Hirak Biswas over 5 years ago in reply to Hirak Biswas

TI__Genius 10925 points

Hi Sarah,

We could reproduce the problem on our side. We find that when number of patterns in a sequence is greater than 170 then this problem is occurs. We will attempt to fix it in the next maintenance release. We apologise for any inconvenience caused. You can still use any external program/microcontroller to send pattern sequences having more than 170 patterns.

THanks & Regards,

Hirak.
