DLPLCR4500EVM: DLPLCR4500EVM Modification

Jejomar Ildefonso

Part Number: DLPLCR4500EVM

Hi DLP Experts,

One of our customer is planning on using the DLPLCR4500EVM as Spatial Light Modulator in some of their experiments, removing the light engine and as they want to use laser as the light source. For these purposes the initial position of the DMD chip is not very fitting, so we were wondering if it is possible to flip the position of the flex cable (180°) and also the DMD (180°)? If so, can you guide us on proper procedures to do it?

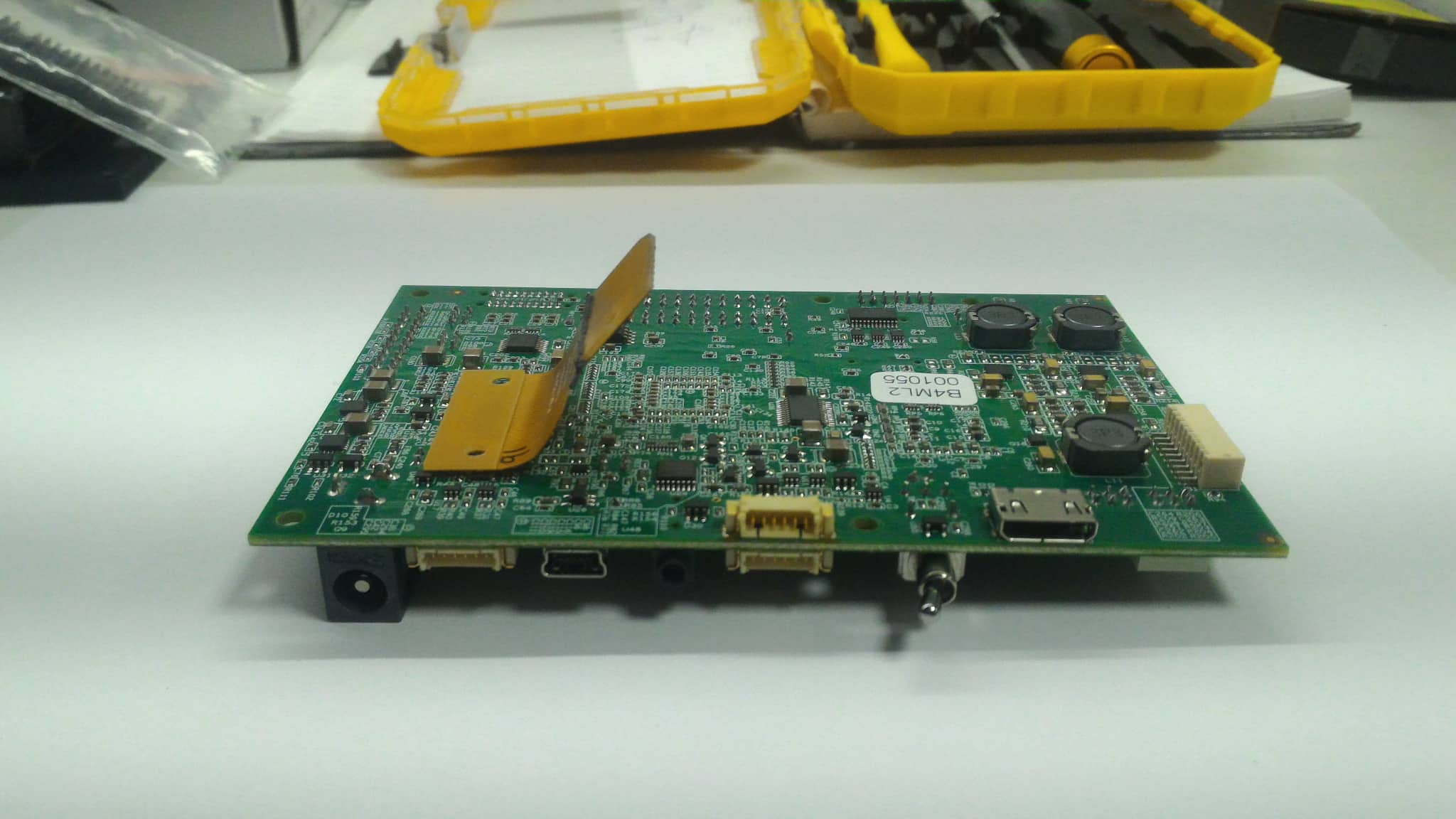

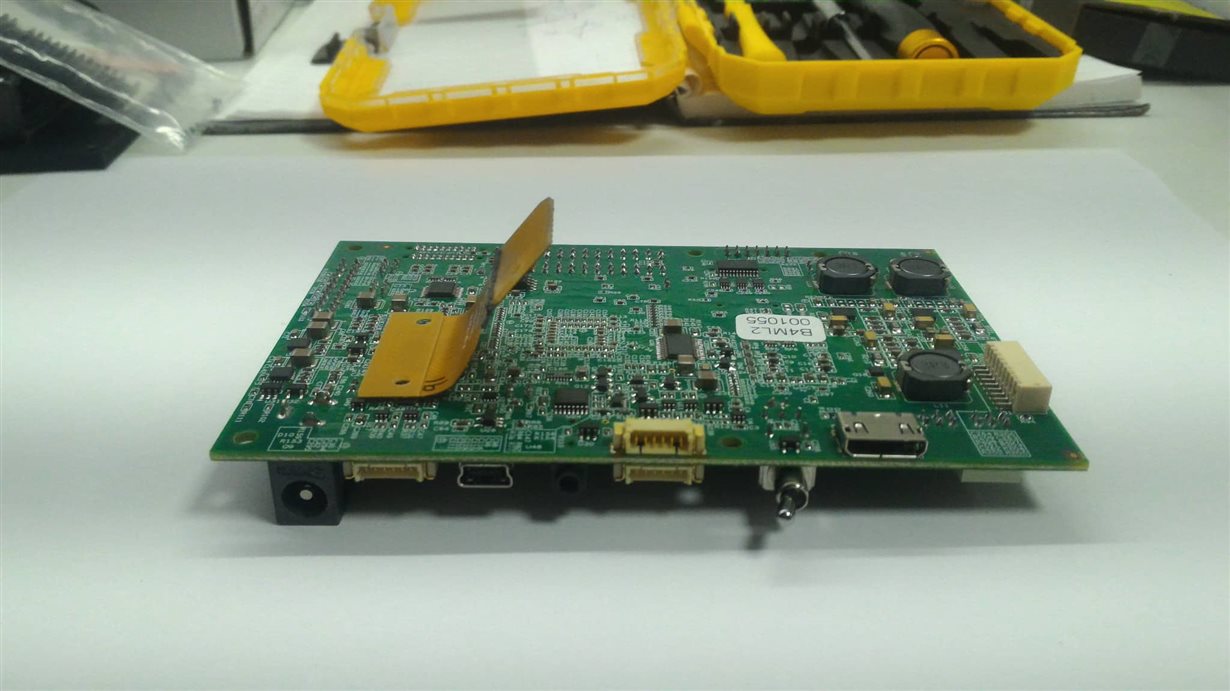

Attached is the initial condition and it would be better to have it facing outward not inward.

Thanks in advance!

Kind Regards,

Jejomar

over 4 years ago

0 Vivek Thakur over 4 years ago

TI__Mastermind 23070 points

Hello Jejomar,

We have not tried this and need to investigate. We will get back to you in couple of days.

regards,

Vivek

0 Jejomar Ildefonso over 4 years ago in reply to Vivek Thakur

TI__Genius 9500 points

Hi Vivek,

May we ask for a follow-up on this? Thank you!

Kind Regards,

Jejomar

0 Philippe Dollo over 4 years ago in reply to Jejomar Ildefonso

TI__Mastermind 28005 points

Jejomar,

As far as I am aware the design of this flex cable is not symmetrical. That is to say, you cannot flip the orientation of the flex and expect the alignment of the connections (and the design of the traces within those connections) to remain the same.

You risk damaging the DMD by performing this operation, so I would not advise pursuing this kind of setup.

Regards,

Philippe Dollo
