Part Number: DS90UB947-Q1
Other Parts Discussed in Thread: DS90UB960-Q1, DS90UB940-Q1, DS90UB953-Q1

Hi,

We have a requirement where we need to serialize (FPD LINK 3) 4 Sony FCB camera giving 1080 25fps over LVDS lines and on the other end receive it on a deserializer hub (Some thing like DS90UB960-Q) putting out MIPI-CSI.

Please suggest the right parts to accomplish this video path.

Thanks

Nithish

over 4 years ago

0 Casey McCrea over 4 years ago

TI__Guru** 103215 points

Hello Nithish,

Can you give more details on the LVDS interface/data format of the camera or do you have any specific camera part number with documentation available online that we can look at?

Best Regards,

Casey

0 user5074302 over 4 years ago in reply to Casey McCrea

Prodigy 50 points

Hi Casey,

We are using Sony FCB FCB-EV7100 ( https://www.rmaelectronics.com/content/Sony-Cameras/Sony_FCB-EV7100_Camera_Manual.pdf )

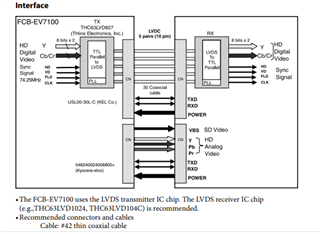

It has 4 LVDS + 1 Clock interface. Below is how the data packets look like. We will be using 1080p 50fps/25fps.

Thanks,

Nithish

0 Casey McCrea over 4 years ago in reply to user5074302

TI__Guru** 103215 points

Hello Nithish,

This looks very similar to a previous inquiry we had in the forums about the FCB-EV7520A. We do not have a solution to translate this kind of data format into CSI-2 directly. It would need to be quite a complicated multiple chip solution to convert each FCB -> parallel RGB -> DS90UB925-Q1 -> DS90UB940-Q1 -> DS90UB953-Q1. Then 4x 953s could be aggregated by a DS90UB960-Q1

https://e2e.ti.com/support/interface-group/interface/f/interface-forum/905276/ds90ub947-q1-does-ds90ub947-q1-work-with-yuv-data

Best Regards,

Casey
