TCAN1046AV-Q1: About the dimple size tolerance of VSON14 Package

Yohei Kuzuya

Part Number: TCAN1046AV-Q1
Other Parts Discussed in Thread: LM63635-Q1

Could you tell me the tolerance of dimple for wide dimension?
I can see the tolerance of LM63635-Q1 but can not see TCAN1044AV-Q1 and TCAN1046AV-Q1.

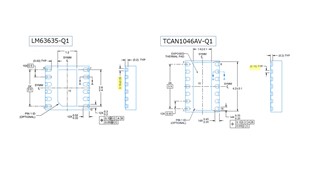

I want to know points written yellow marker in a picture so pleas you will check it.

over 1 year ago

0 Eric Hackett over 1 year ago

TI__Guru 74292 points

Kuzuya-san,

We'll have to contact our packaging team to find this information. Please give us until Monday next week to find this.

Regards,

Eric Hackett

0 Yohei Kuzuya over 1 year ago in reply to Eric Hackett

Prodigy 10 points

Hi Eric,
Thank you for your investigation. I will wait until next Monday.

0 Eric Hackett over 1 year ago in reply to Yohei Kuzuya

TI__Guru 74292 points

Kazuya-san,

Thank you for your patience, we are still looking into this.

Regards,

Eric Hackett

0 Kento Sato over 1 year ago in reply to Eric Hackett

TI__Intellectual 910 points

Hi Eric

I'm Kento, TI Japan sales who is supporting Kuzuya-san.

We really need your reply ASAP

Regards,

Kento

0 Eric Hackett over 1 year ago in reply to Kento Sato

TI__Guru 74292 points

Sato-san,

I've followed up with them again and hope to get a reply by tomorrow.

Regards,

Eric Hackett

0 Kento Sato over 1 year ago in reply to Eric Hackett

TI__Intellectual 910 points

Hi Eric

Can you please reply today? We have passed 3 days.

Regards,

Kento

0 Eric Hackett over 1 year ago in reply to Kento Sato

TI__Guru 74292 points

Sato-san,

Thanks for your patience.

Our standard practice for dimple WF ePODs is only to show the dimple as a reference dimension – no tolerance. We do not check this as part of AVI so do not want to spec it for customer. The fact that the tolerance is specified in another datasheet is actually an error.

Sorry for the inconvenience, but since it isn't something used for AVI, we don't specify the tolerance.

Regards,

Eric Hackett

0 Yohei Kuzuya over 1 year ago in reply to Eric Hackett

Prodigy 10 points

Hi Eric

Thank you for your response. I understand the tolerance is specified in another datasheet is actually an error.
But, could you tell me just the design value or target tolerance value? I have an inquiry from the manufacturing department. I guess they confirm for AOI.

Best regards,
Kuzuya

0 Eric Schott1 over 1 year ago in reply to Yohei Kuzuya

TI__Guru 53575 points

Hi Kuzuya-san,

The maximum width of the dimple will be limited by the minimum size of the pin which is 0.25mm. Based on this, I expect that the tolerance of the dimple cut will be within ±0.06mm. Do you know if this would be sufficient for manufacturing's needs?

Regards,
Eric Schott

0 Yohei Kuzuya over 1 year ago in reply to Eric Schott1

Prodigy 10 points

Hi Eric,

Thank you so much. I think we can solve it somehow.

Best regards,
Kuzuya
