DP83867IR: DP83867IR: Compliance test(1000 Base-T, Difference A,B Peak Output Voltage) failed

xingquan liu

Part Number: DP83867IR

Hi team,

My customer made 1000BASE-T compliance test with his own board which is equipped with DP83867IR. (64-QFP device ,DP83867IRPAP)

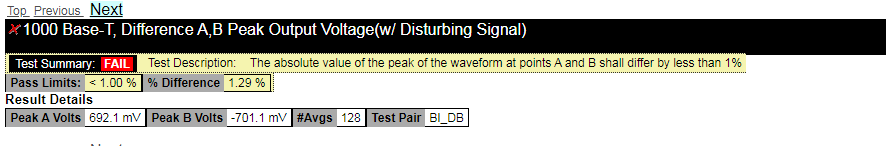

As a result, the A and B peak voltage test ok,but the 1000 Base-T, Difference A,B Peak Output Voltage test failed.

I would like to know how to fix this failed.

The test results are shown in the attachments:

over 6 years ago

0 Geet Modi over 6 years ago

TI__Mastermind 26320 points

Hi,

Given it is high speed interface, layout and external component also plays a significant role. Kindly ask customer to recheck the external components, layout is inline with guidelines given for DP838867.

Regards,

Geet

0 xingquan liu over 6 years ago in reply to Geet Modi

Prodigy 60 points

Thank you for the reply.

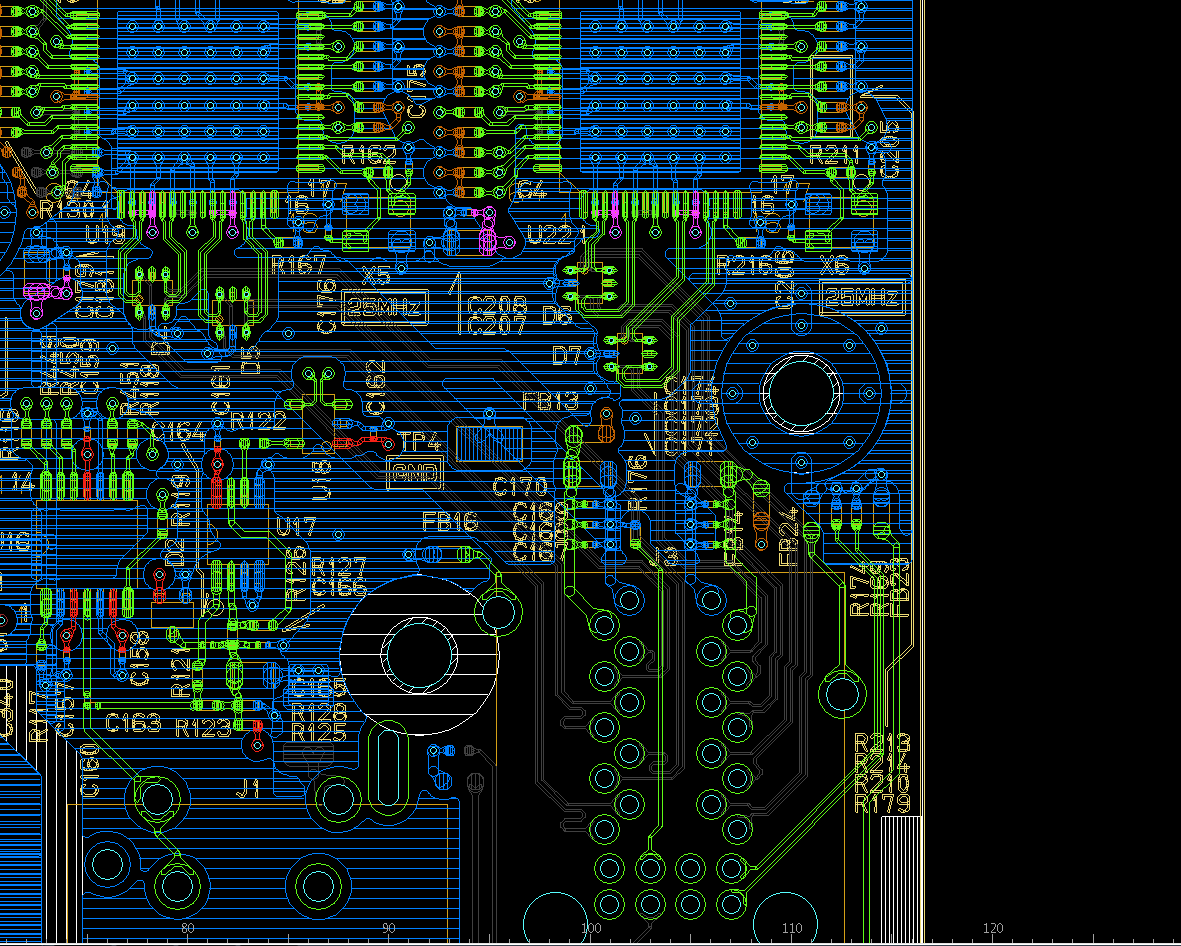

We check the schematics and layout but it seem there no problem.Please take a look at attached file for the details.

In addition, ESD has been removed

If possible, could you please check the customer's layout to find the issue?

0 Geet Modi over 6 years ago in reply to xingquan liu

TI__Mastermind 26320 points

Hi,

Can you describe the procedure they are following to run the compliance test ?

Regards,

Geet

0 Geet Modi over 6 years ago in reply to Geet Modi

TI__Mastermind 26320 points

Hi,

I am closing this thread. Incase you need further assistance, kindly open new thread and provide reference to this thread.

Regards,
Geet
