TUSB9261 - flash burner - erase flash

pierre-louis royer

Other Parts Discussed in Thread: TUSB9261

Hello,

I am currently working with the TUSB9261 demo board and I have some question concerning the flash programming.

When we click on the "Program button", does the software erase the flash before if it was previously burned with an other firmware? or should we click on the erase button?

My trouble is that I cannot erase the flash with the button "erase" because it is unavailable/grey. Why?

Thank you in advance for your answer,

PLR

over 13 years ago

0 Jorge Llamas (SWAT) over 13 years ago

TI__Expert 7395 points

Hello Pierre Louis,

Yes, the TUSB9261 FlashBurner will "erase" the SPI Flash before programming it if there was a valid firmware image previously burned.

As to the erase button being greyed out:

Did you selected (clicked over) the device instance shown on the device's tree on the tool? (As shown in figure 4-13 on the user's guide http://www.ti.com/lit/ug/sllu125b/sllu125b.pdf)
Do you have the HID interface enabled on the firmware you are trying to erase?
What's the firmware version you are trying to erase?

Regards,

Jorge

0 pierre-louis royer over 13 years ago in reply to Jorge Llamas (SWAT)

Prodigy 70 points

Hello Jorge,

Thank you for your fast answer.

Does the FlashBurner erase the SPI flash if it was corrupted?

For the erase button, yes I have selected the device as in the user's guide.
I have tried with or without the HID interface.
The firmware is TUSB926x_FW097.bin

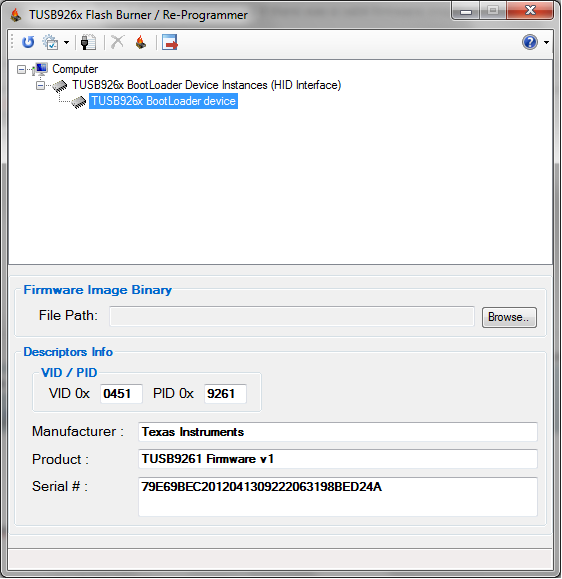

Below the image (This is a try with the demo board)

0 Jorge Llamas (SWAT) over 13 years ago in reply to pierre-louis royer

TI__Expert 7395 points

Pierre Louis,

The erase button is not enabled because the device's SPI Flash is blank (or has no valid FW image). The TUSB9261 is running as a Boot Loader, so there's no need to erase anything. You can just click on the "program/burn" button and the firmware you enter should be properly loaded.

Regards,

Jorge

0 pierre-louis royer over 13 years ago in reply to Jorge Llamas (SWAT)

Prodigy 70 points

Hello Jorge,

Ok so when the SPI flash is blank or corrupt, we can only burn it. When I connect the SPI flash on the demo board via the strap, the program does not recognize the device.

So in which configuration does the erase button work?

Regards,

PLR

0 Jorge Llamas (SWAT) over 13 years ago in reply to pierre-louis royer

TI__Expert 7395 points

Pierre Louis,

The erase button works when you have a valid firmware properly running. That will let you erase the SPI flash so you can later update to a new firmware version.

If your device is not recognized by the utility when enabling the SPI flash, please follow the troubleshooting section 5.2 at http://www.ti.com/lit/ug/sllu125b/sllu125b.pdf

Regards,

Jorge

0 pierre-louis royer over 13 years ago in reply to Jorge Llamas (SWAT)

Prodigy 70 points

Hello Jorge,

As I understand I am working with a corrupt firmware present on the demo board. It is strange because I have never burn it and it seems that it is working properly. I will do some test.

Thank you for your support

Interface

Interface forum

TUSB9261 - flash burner - erase flash
