DS90UB953A-Q1: S-Parameter analysis

user4294871

Prodigy 110 points

Part Number: DS90UB953A-Q1
Other Parts Discussed in Thread: ALP, USB2ANY

Hi TI members,

I want to test S parameter via ALP.

My system: PC(ALP) -- USB2ANY --- DS90UB954 --- DS90UB953 --- image sensor

I have read the ALP_SPARAM_Support file:

C:\Program Files (x86)\Texas Instruments\Analog LaunchPAD v1.57.0010\ALP_Documents

I want to know how to set the parameter in S-parameter analysis tab?

Should I create my cable's S2P file?

Chould you share some guides?

Thanks,

Fred

over 4 years ago

0 Vishy Viswanathan over 4 years ago

TI__Mastermind 21685 points

Fred,

>>>Should I create my cable's S2P file? Chould you share some guides?

Yes, you have to create your cable's S2P file. Then this tool can be used to check if the return and insertion loss of the cable (or PCB or channel) are within TI recommended limits (red line in the plot).

You can check following two references

literature.cdn.keysight.com/.../5991-3736EN.pdf

cdn.teledynelecroy.com/.../lab1025.pdf

Thanks,

Vishy

0 user4294871 over 4 years ago in reply to Vishy Viswanathan

Prodigy 110 points

Hi Vishy,

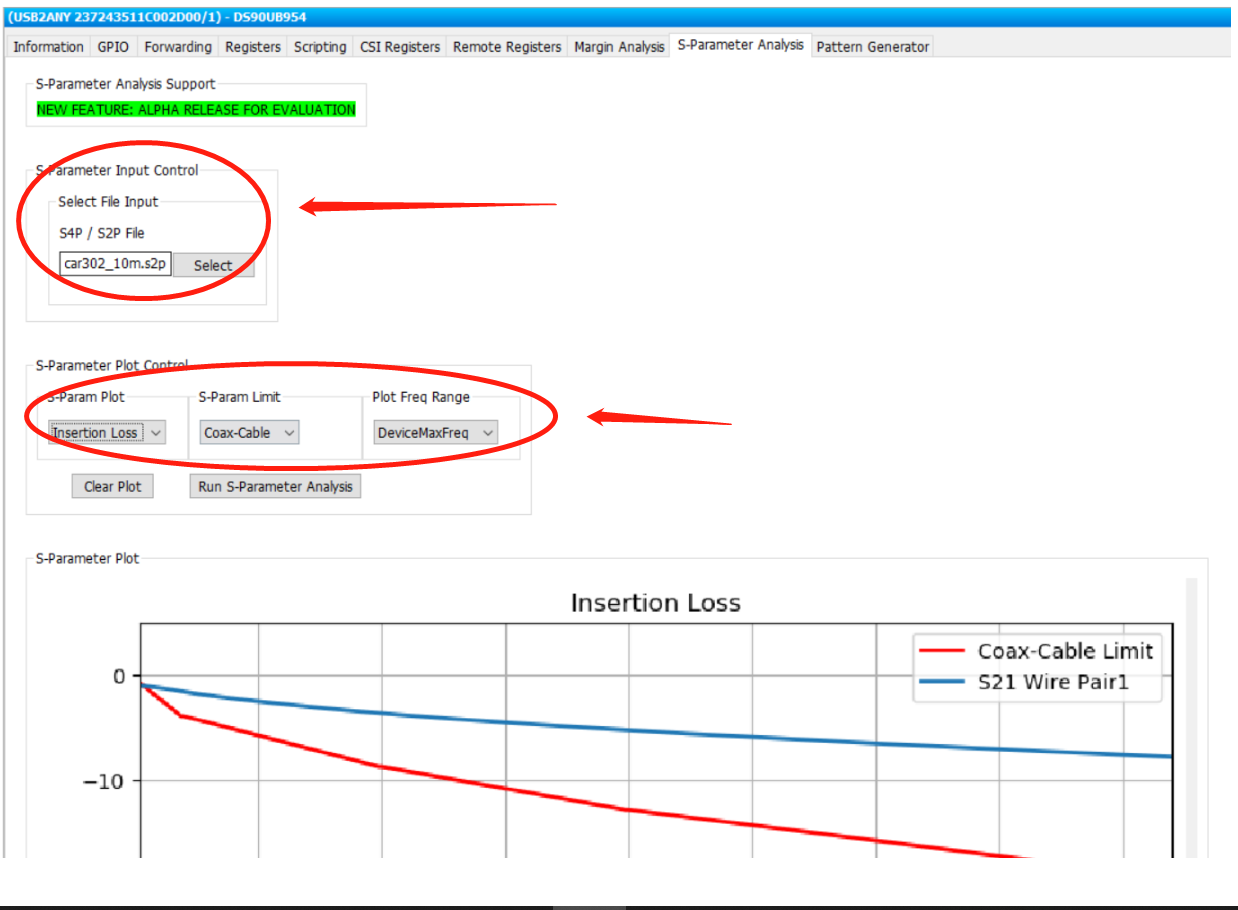

1) About ALP S-parameter analysis, I thought it need input the S parameter of user's cable, and then the S-parameter analysis processing the data and input signal, at last the ALP output the insertion loss/return loss of system(Image sensor + Serdes + DeSerdes).

Is it correct?

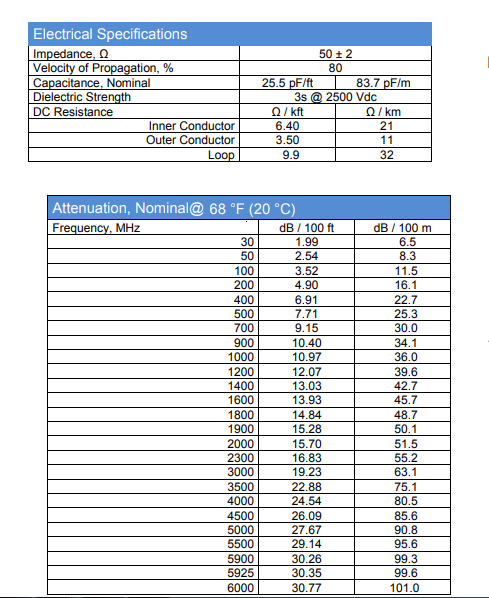

2) I got the cable spec data(insertion loss) as below from our supplier.

I just want to know that how to create my cable's S2P file with the cable spec data?

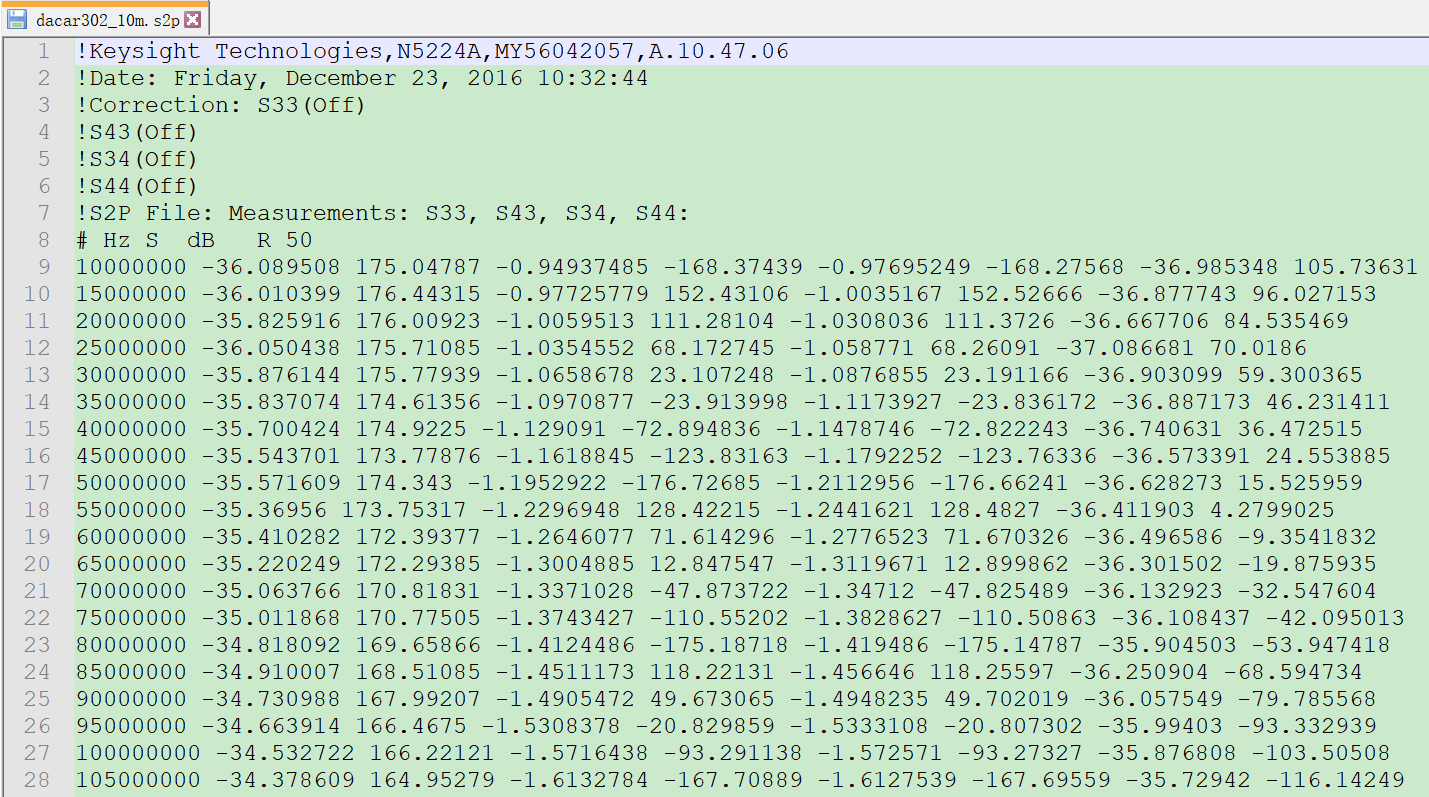

3) How to get my cable's data file like the demo S2P file? Is it from supplier?

Thanks,

Fred

0 Vishy Viswanathan over 4 years ago in reply to user4294871

TI__Mastermind 21685 points

Fred,

>>>>1. Is it correct?

No. S-parameter analysis tab checks the s2p or s4p file against TI recommended limits for RL, IL and Skew. It's not checking input signal or any other data.

>>>>2. how to create my cable's S2P file with the cable spec data?

You need to use a VNA to create S2P file. See some references below

www.signalintegrityjournal.com/.../Vector-Network-Analyzer-Fundamentals-Primer.pdf

download.tek.com/.../70W_60918_0_Tek_VNA_PR.pdf

www.keysight.com/.../BTB_Network_2005-1.pdf

You can search on "Vector Network Analyzer S-Parameters" to obtain a number of references

>>>>>3) How to get my cable's data file like the demo S2P file? Is it from supplier?

Yes, you can check with the supplier also.

Thanks,

Vishy

0 user4294871 over 4 years ago in reply to Vishy Viswanathan

Prodigy 110 points

Vishy,

Thanks a lot.

Fred
