SN65LVCP1414/about thermal pad size

Tsukui Yusuke

Guru 21930 points

Hi,

Could you tell me about SN65LVCP1414 thermal pad size?
Customer want to know the size of the thermal pad.
However, the data sheet does not describe it.
Could you give me your advice?

Best Regards,
Yusuke/Japan Disty

over 9 years ago

0 Michael Lu (Santa Clara) over 9 years ago

TI__Mastermind 29655 points

Hi Yusuke-san,

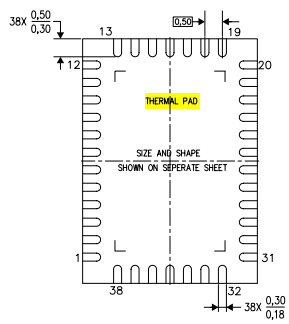

This part is supported by our sister High-Speed Interface group in Dallas, but I was able to find the thermal pad parameters for this package. Please view the attached. The parameters are 4.1mm x 2.1mm (with 10% tolerance).

qfnd402_thermal_pad.pdf

Michael

0 Tsukui Yusuke over 9 years ago in reply to Michael Lu (Santa Clara)

Guru 21930 points

Amod-san,

Thank you for your response.
I understand.
I will report it to the customer.

Best Regards,
Yusuke/Japan Disty
