ISO6540-Q1: Requires 3D model (Step file) for the Manufacturing Part Number : ISO6540FQDBQRQ1

Balanagu Vardhini

Prodigy 30 points

Part Number: ISO6540-Q1

Tool/software:

Hello Team,

Need 3D model (Step File) for the MPN : ISO6540FQDBQRQ1.

Kindly share the same ASAP to proceed further in our project related.

Thanks

4 months ago

0 Aaditya V. 4 months ago

TI__Genius 17355 points

Hi Balanagu,

Thanks for reaching out.

Please check this link for the .step file for DBQ package devices: https://vendor.ultralibrarian.com/TI/embedded/?gpn=ISO6540-Q1&package=DBQ&pin=16&sid=0188f960d8fb0020e0c978bf6a040506f002306700978&c=1

This can also be found on the product page under the design and development section: https://www.ti.com/product/ISO6540-Q1

Regards,
Aaditya V

0 Balanagu Vardhini 4 months ago in reply to Aaditya V.

Prodigy 30 points

Hello Aaditya,

Thanks for the quick response

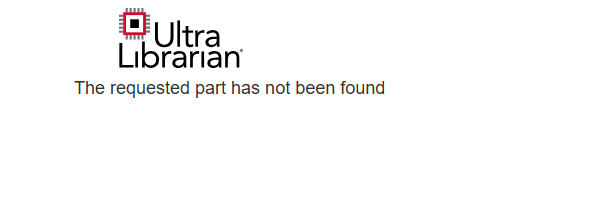

The above link is not showing anything and no info was there

PFA snapshot for reference. lease share the proper link once again to reverify

Thanks

Vardhini

0 Aaditya V. 4 months ago in reply to Balanagu Vardhini

TI__Genius 17355 points

Hi Vardhini,

The alternate method to get the CAD files also works. The first link can be found within the product page itself. I have gone ahead and attached the .STEP file to this post for your convenience.

Aaditya V. said:
This can also be found on the product page under the design and development section: https://www.ti.com/product/ISO6540-Q1

DBQ0016A.stp

Regards,
Aaditya V
