ISO35T: Vcc2 = 5V

Shachar Armon

Prodigy 30 points

Part Number: ISO35T
Other Parts Discussed in Thread: ISO3086T

Hello,

We intend to use ISO35TDWR with Vcc2=5V

I can notice it fine to have Vcc2 up to 6V, but the recomendded is Vcc2=3.6V

What is the limitation or impact of the circuit under this condistion (Vcc2=5V)?

Shachar

9 days ago

0 Andrew J 7 days ago

TI__Mastermind 31415 points

Hello Shachar,

The ISO35T is designed to be a 3.3V device. Therefore, it is recommended that VCCx does not exceeded 3.6V. Higher voltages (like VCCx=5V) are possible with ISO1175T, and ISO3086T

Best,
Andrew

0 Shachar Armon 7 days ago

Prodigy 30 points

Hi Andrew,

We notice this,

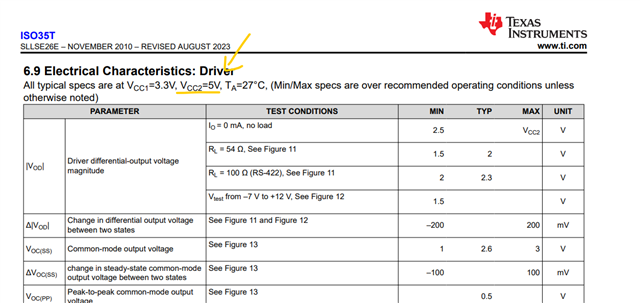

we also notice in the datasheet 0f ISO35T

Vcc=5V is the typical specs parameters

...

0 Shachar Armon 7 days ago in reply to Shachar Armon

Prodigy 30 points

What it's mean?

Shachar

0 Andrew J 6 days ago in reply to Shachar Armon

TI__Mastermind 31415 points

Hello Shachar,

Sorry for the confusion. This seems to be a typo. ISO35T has 5V tolerant logic inputs; however, the recommended operating conditions is still 3.3V. Please follow these recommendations for best performance.

Best,
Andrew
