RF Antenna

Briceag Cosmin

Hello,

I don't know if my question is relevant in this place but i need help with my RF antenna. I've designed a PCB for my diploma's project which involves a GSM module.My PCB is compliant to the GSM datasheet.When I tried to take a measurement between RF antenna pin and GND I saw they are leaked to ground.Now my question is:Should be there such a situation or something is wrong?

Thank you,

over 10 years ago

0 TER over 10 years ago

TI__Guru**** 317180 points

This is not a general RF forum as such.

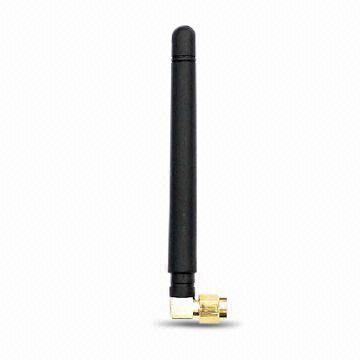

- You don't write which type of antenna you are using (a GSM antenna only tells the frequency). Note that some antennas like inverted F have a DC connection to ground.

- You don't write how you are measuring.

- Use a VNA and measure S11 and check the resonance.

0 Briceag Cosmin over 10 years ago in reply to TER

Intellectual 840 points

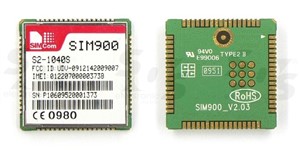

I'm using the SIM900 module, it is a GSM module.I've attached the exact components.

These are the components.Now, I don't understand why when I take a measurement between the signal pin of the antenna and ground the voltmeter says there is a short.

0 Enrico Marcelo over 10 years ago

Prodigy 40 points

that is normal and there is nothing wrong with your circuit. usually the RF path is very close in reading to the GND when you are using a DMM.

0 Briceag Cosmin over 10 years ago in reply to Enrico Marcelo

Intellectual 840 points

Alright, I resolved this problem. As you said, it is a normal situation.Thank you
