TXG1021-Q1: What is the difference between ground-level and logic-level?

Leo Ma

Expert 3606 points

Part Number: TXG1021-Q1

Tool/software:

Hi Expert,

Have a nice day! I have question need your professional support:

About TXG1021-Q1, I want to know what is the difference between ground-level and logic-level?

What I understand is:

ground-level: The voltage difference between side A and side B.
logic-level: The voltage difference on same side. Such as VCCA or Ax to GNDA.

Is this right?

Thanks!

Best Regards,

Leo Ma

2 months ago

+1 Clemens Ladisch 2 months ago

Guru 316440 points

The ground levels are the voltages at GNDA and GNDB. (Most translators have a single ground.)

0 Leo Ma 2 months ago in reply to Clemens Ladisch

TI__Expert 3606 points

Thanks.

0 Joshua Salinas 2 months ago in reply to Leo Ma

TI__Mastermind 21890 points

Hello Leo,

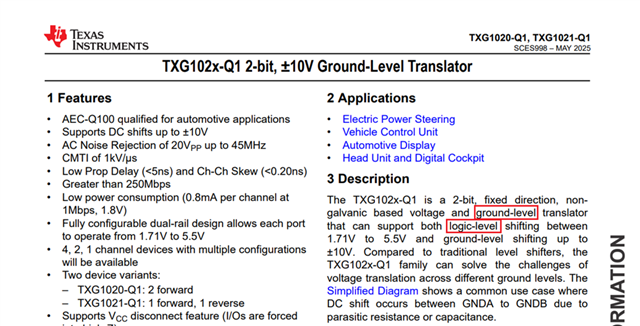

I agree with Clemens. A logic-level translator supports up/down translation while using the same ground reference. A ground-level translator supports up/down translation while supporting different ground references. For instance, A-side can support 0 to 5V signals while B-side can support -1V to 2V signals.

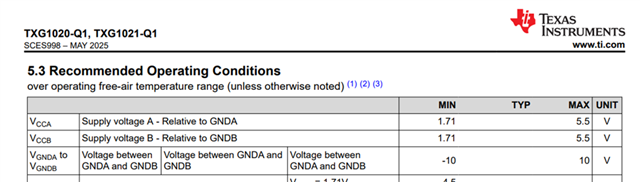

Ground can be as high or low as ±10V as long as VCCx - GNDx does not exceed the recommended operating conditions.

Regards,

Josh

+1 Leo Ma 2 months ago in reply to Joshua Salinas

TI__Expert 3606 points

Hi Joshua,

Thanks for reply.

So, for extreme usage scenario, we can use A side signal from 0 to 5V, B side signal from 10 to 15V (GNDB is 10V, signal is 15V), right?

Best Regards,

Leo Ma

+1 Joshua Salinas 2 months ago in reply to Leo Ma

TI__Mastermind 21890 points

Hello Leo,

That's correct. Since the difference between VCCB and GNDB does not exceed 5.5V, we can use GNDB = 10V and Signal = 15V.

Regards,

Josh

0 Leo Ma 2 months ago in reply to Joshua Salinas

TI__Expert 3606 points

Thanks!
