TM4C129XNCZAD: The memory structure of the incoming mailbox needs to be aligned.

ray yang

Part Number: TM4C129XNCZAD

Tool/software:

Hi:

I leave this message here, so that those who are lucky enough to see it, can avoid this pit!

We spent a lot of time searching for the cause, and finally realized that the size of the memory structure brought into the mailbox was a multiple of four.

The modified code was installed on 5 devices, and they ran without shutting down for 90 days without crashing.

https://dev.ti.com/tirex/explore/node?node=A__AGvM31zjJSi9S09XxsfS.w__com.ti.SIMPLELINK_CC13XX_CC26XX_SDK__BSEc4rl__6.20.00.29

Ray Yang

3 months ago

0 Charles Tsai 3 months ago

TI__Guru**** 190476 points

Hi Ray,

Thank you so much for sharing the tips. I will add this post to my favorite in case someone run into the same issue.

0 ray yang 3 months ago in reply to Charles Tsai

Prodigy 160 points

Hi Charles:

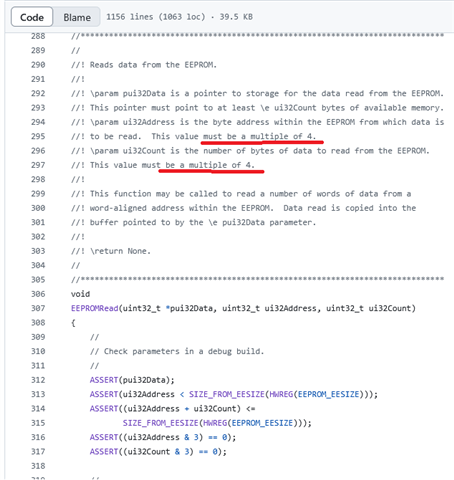

Access to the TM4C's internal EEPROM is also similar,

the size of the data structure should be a multiple of 4,

otherwise there will be inexplicable data loss.

https://github.com/yuvadm/tiva-c/blob/master/driverlib/eeprom.c

Ray Yang

0 ray yang 3 months ago in reply to ray yang

Prodigy 160 points

The fact that data is stored in memory and needs to be aligned is very important,

but developers often tend to overlook such a small thing and suffer in the search for the bug.

Ray Yang

0 Charles Tsai 3 months ago in reply to ray yang

TI__Guru**** 190476 points

Hi Ray,

Again, thanks for the tips. Have you tried to add the 'Align(32) directives to the SECTIONS. Does it help resolve the issue? See below snippet example.

SECTIONS
{
.text align(32) : {} > FLASH
.const align(32) : {} > FLASH
.cinit align(32) : {} > FLASH
.pinit align(32) : {} > FLASH
.init_array : > FLASH

.data : > SRAM
.bss : > SRAM
.sysmem : > SRAM
.stack : > SRAM
}

0 ray yang 3 months ago in reply to Charles Tsai

Prodigy 160 points

Hi Charles:

We didn't use the way you mentioned to align the data, thanks for telling me that there is such a way.

Manual checking method: use the sizeof function before passing the data to the Read and Write of EEPROM API.

Ray Yang
