TMS320F28069: CCS: Variable values in watch window do not match memory value

Joost de Bruin

Part Number: TMS320F28069

Hi all,

I have what I suspect to be a bug in CCS, namely variable values remain at zero in watch window, while inspection of memory shows they are non-zero. Perhaps relevant: so far this only happened to values in shared CPU/CLA memory, while entered a breakpoint in CLA code. A snip showing the discrepancy:

over 4 years ago

0 Ashwini Athalye over 4 years ago

TI__Expert 7695 points

Hi Joost,

Which version of CCS are you using?

Thanks,

Ashwini

0 Joost de Bruin over 4 years ago in reply to Ashwini Athalye

Prodigy 200 points

10.4.0.00006. I do get this warning btw when I am trying to update:

0 Ashwini Athalye over 4 years ago in reply to Joost de Bruin

TI__Expert 7695 points

Hi Joost,

Thanks, I will pass this onto the CCS team.

In the meanwhile, can you add the following in the expressions window and let me know what you see:

*(unsigned int *) 0x14A5

*(unsigned char *) 0x14A5

Thanks,
Ashwini

0 Joost de Bruin over 4 years ago in reply to Ashwini Athalye

Prodigy 200 points

Hi Ashwini,

I will do so next monday, it is about weekend here and I have another pressing issue. Thanks for the help so far anyways.

0 Ashwini Athalye over 4 years ago in reply to Joost de Bruin

TI__Expert 7695 points

Hi Joost,

Sounds good.

Thanks,

Ashwini

0 Joost de Bruin over 4 years ago in reply to Ashwini Athalye

Prodigy 200 points

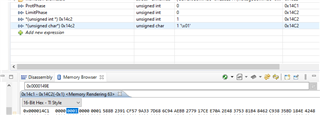

I encountered it again, with a different variable/address. I do get the right value if i dereference the address:

0 Joost de Bruin over 4 years ago in reply to Joost de Bruin

Prodigy 200 points

I wonder if it has something to do with CLA being 32 bit oriented

+1 Ashwini Athalye over 4 years ago in reply to Joost de Bruin

TI__Expert 7695 points

Hi Joost,

You are correct, there is a type difference between CLA and C28 and this may be causing the issue. CLA int is 32-bit and C28 int is 16-bit.

Please see the advice in the Note in section 10.2.1 of the Compiler Guide.

https://www.ti.com/lit/spru514

Thanks,

Ashwini

0 Joost de Bruin over 4 years ago in reply to Ashwini Athalye

Prodigy 200 points

I did use 'explicit-length' types (ie Uint16), I would expect it would read it correctly. Anyways, I'll keep this in mind. Thanks for the help. Regards, Joost
