TMS320F28379D: Timer configuration problem

Sinan KAMILCELEBI

Intellectual 520 points

Part Number: TMS320F28379D
Other Parts Discussed in Thread: C2000WARE

Hello Dear TI Team,

I need three timers in my project as follows.

Timer0 = 1 ms (millisecond)
Timer1 = 5 s (second)
Timer2 = 10 us (microsecond)

I am using the following example for these timers.

C:\ti\c2000\C2000Ware_3_04_00_00\driverlib\f2837xd\examples\cpu1\timer

However, I could not provide the configuration settings for the timer values I specified above that I needed in my project. Can you help with this?

Sinan,

Thanks and best regards.

over 3 years ago

0 Veena Kamath over 3 years ago

TI__Mastermind 32635 points

Hi Sinan,

Were you able to run the the mentioned example? Can you please explain the issue faced?

Regards,

Veena

0 Sinan KAMILCELEBI over 3 years ago in reply to Veena Kamath

Intellectual 520 points

Hi Veena,

Sinan KAMILCELEBI said:
C:\ti\c2000\C2000Ware_3_04_00_00\driverlib\f2837xd\examples\cpu1\timer

I ran this example. However, I could not configure the timer for the following values.

Sinan KAMILCELEBI said:
Timer0 = 1 ms (millisecond)
Timer1 = 5 s (second)
Timer2 = 10 us (microsecond)

Sinan,

Thanks.

0 Veena Kamath over 3 years ago in reply to Sinan KAMILCELEBI

TI__Mastermind 32635 points

Hi Sinan,

You can change the period by changing the parameter to the configCPUTimer function in the example.

Are you getting nay compile errors or runtime errors while changing that?

Please share your updated code

Regards,

Veena

0 Sinan KAMILCELEBI over 3 years ago in reply to Veena Kamath

Intellectual 520 points

Hi Veena,

I don't get compile or runtime errors when changing the configCPUTimer function parameter in the example.

I added the updated code.

/cfs-file/__key/communityserver-discussions-components-files/171/f2837xd_5F00_timer.rar

Thanks,

Sinan.

+1 Veena Kamath over 3 years ago in reply to Sinan KAMILCELEBI

TI__Mastermind 32635 points

Hi Sinan,

I did not understand why the following numbers were used for 1 ms, 5 s, 10 us

configCPUTimer(CPUTIMER0_BASE, DEVICE_SYSCLK_FREQ, 1000000); // 1 ms (millisecond)
configCPUTimer(CPUTIMER1_BASE, DEVICE_SYSCLK_FREQ, 5000000); // 5 s  (second)
configCPUTimer(CPUTIMER2_BASE, DEVICE_SYSCLK_FREQ, 1000000); // 10 us (microsecond)

As mentioned in the example, the parameter is in us. I updated the code as follows and it seems to work.

configCPUTimer(CPUTIMER0_BASE, DEVICE_SYSCLK_FREQ, 1000); // 1 ms (millisecond)
configCPUTimer(CPUTIMER1_BASE, DEVICE_SYSCLK_FREQ, 5000000); // 5 s (second)
configCPUTimer(CPUTIMER2_BASE, DEVICE_SYSCLK_FREQ, 10); // 10 us (microsecond)

Regards,

Veena

0 Sinan KAMILCELEBI over 3 years ago in reply to Veena Kamath

Intellectual 520 points

Hi Veena,

Veena Kamath said:
As mentioned in the example, the parameter is in us. I updated the code as follows and it seems to work.

This worked, thank you very much.

Also, I have a few questions for you.

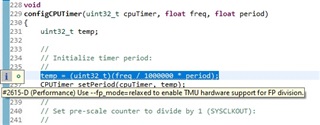

1. The compiler gives warning messages as seen in the images below. Are these warning messages important? What do I need to do to resolve these warnings?

2. There is the following command in line #283 of the cpuTimer0 interrupt function. Should I write this command line inside other interrupt functions (cpuTimer1, cpuTimer2)?

#283 Interrupt_clearACKGroup(INTERRUPT_ACK_GROUP1);

(The case has been edited.)

Sinan,

Thanks and best regards.

+1 Veena Kamath over 3 years ago in reply to Sinan KAMILCELEBI

TI__Mastermind 32635 points

Sinan KAMILCELEBI said:
The compiler gives warning messages as seen in the images below. Are these warning messages important? What do I need to do to resolve these warnings?

It is not a warning. It is an advice that can be used to enhance the performance. For more details regarding the fp_mode, you can refer here

Sinan KAMILCELEBI said:
2. There is the following command in line #283 of the cpuTimer0 interrupt function. Should I write this command line inside other interrupt functions (cpuTimer1, cpuTimer2)?

#283 Interrupt_clearACKGroup(INTERRUPT_ACK_GROUP1);

No, it is needed only for those interrupts within PIE. Timer1 and Timer2 interrupts are not part of PIE. Timer0 is part of PIE group 1. Hence you need to ack the group 1

Regards,

Veena

0 Sinan KAMILCELEBI over 3 years ago in reply to Veena Kamath

Intellectual 520 points

Hi Veena,

My problem solved. I am thankful to you.

Thank you very much for your feedbacks.

Thanks also to TI E2E for the quick support as usual.

Have a great day and keep safe at all times.

I will close this post case later.

Sinan,
Thanks and best regards.

0 Sinan KAMILCELEBI over 3 years ago in reply to Sinan KAMILCELEBI

Intellectual 520 points

Hi Veena,

I merged this project with another drivelib project. However, currently CPUTIMER0, CPUTIMER1 and CPUTIMER2 are producing 120 ns. What could be the cause of this problem?

CPUTIMER0, CPUTIMER1 and CPUTIMER2 should produce the following values. I was able to see these values before.

Veena Kamath said:
As mentioned in the example, the parameter is in us. I updated the code as follows and it seems to work.

Note: This case was edited after it was first posted.

Sinan,

Thanks and best regards.

0 Veena Kamath over 3 years ago in reply to Sinan KAMILCELEBI

TI__Mastermind 32635 points

Hi Sinan,

Can you please share the code snippet where you configure the timers?

Regards,

Veena

+1 Sinan KAMILCELEBI over 3 years ago in reply to Veena Kamath

Intellectual 520 points

Hi Veena,

I observed the register values. The CPU timer settings of the other F28379D project are different. Therefore I could not get the signals I wanted from CPUTIMER0, CPUTIMER1 and CPUTIMER2. I made the CPU timer settings of the other F28379D project the same as the running project.

My problem solved.

Thank you very much for your feedbacks.

Sinan,
Thanks and best regards.
