TMS320F28388D: issue about SYSCTL_OSCSRC_XTAL_SE

Yale Li 李耀先

Part Number: TMS320F28388D

Hi Team,

The selection 11 of CLKSRCCTL1[OSCCLKSRCSEL] is 'reserved (default to INTOSC1)' according to the spruii0d_TMS320F2838x Real-Time Microcontrollers With Connectivity Manager TRM (Rev. D) P228.

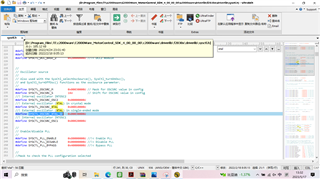

But the code comment demonstrate that this selection is 'External oscillator (XTAL) in single-ended mode'.

Could you please take a look and explain of this?

Thanks & Regards

Yale

0 Prarthan Bhatt over 2 years ago

Hello Yale,

If you see the note [1] below in the register description it says selection of reserved would default to Bit 00.

On the software comments I will reach out to the team internally and get back to you by tomorrow.

Thank you,

Prarthan.

+1 Manoj Santha Mohan over 2 years ago in reply to Prarthan Bhatt

Yale,

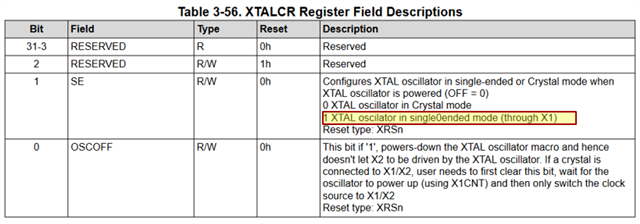

In F28388D supports Single ended clock which is controlled in XTALCR register (Pg 249 in spruii0d_TMS320F2838x Real-Time Microcontrollers With Connectivity Manager TRM (Rev. D) ) as shown below.

Regards,

Manoj
