TMDSCNCD28379D: Unable to connect to development board using SFRA

Cherry,

When you say "Incremental build level 6", I'd like to know which software and which solution/design you are talking about?

Thanks,

Sira

Hi Sira,

Thank you for the support.

Sira Rao80 said:

When you say "Incremental build level 6", I'd like to know which software and which solution/design you are talking about?

The FCL Fast Current Loop scheme described in the spracl1b.pdf, using SFRA GUI for frequency sweep in the Incremental build Level6 lab.

Thanks and regards,

Cherry

Hi Cherry,

Cherry Zhou said:

TMDSCNCD28379D — the position 2 on A:SW1 of the dialout switch of the F28379D control card has been set to the on position.

That is the correct configuration from a hardware perspective.

• They have set BUILDLEVEL to FCL_LEVEL6 in 'fcl_f2837x_tmdxiddk_settings.h'?
• Can you provide screenshots of the SFRA GUI configuration? Also a screenshot of the error code being reported.
• The Baud Rate and COM port need to be selected properly:


  • #define SFRA_GUI_SCI_BAUDRATE           57600

Best,

Kevin

Hi Kevin,

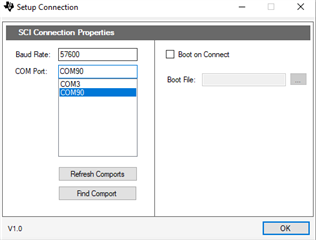

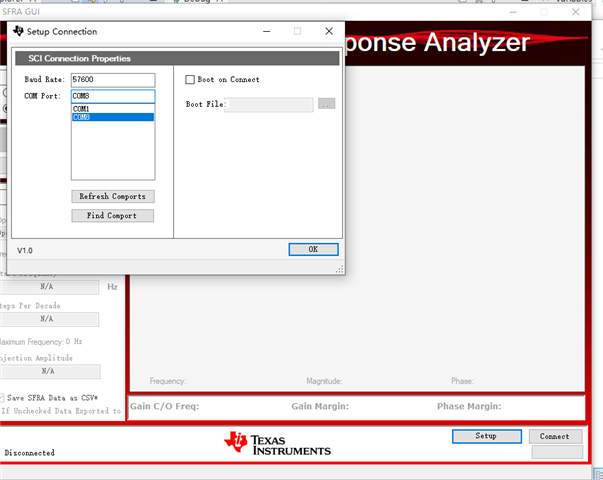

Please see here:

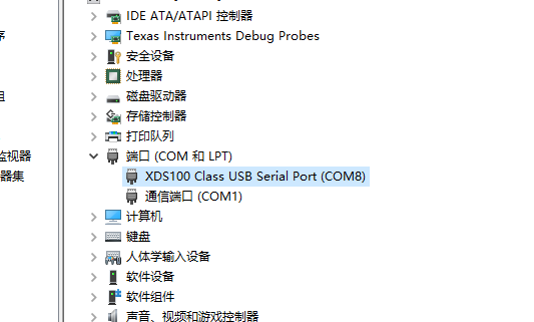

(The last screenshot is the port number in the device manager)

It can be sure that the BUILDLEVEL is set to FCL_Level6 in 'FCL_f2837x_tmsdxiddk_settings.h'

#Define SFRA_GUI_SCI_BAUDRATE 57600 baud rate, the customer checked the line with the code and it was good.

Thanks and regards,

Cherry

Hi Cherry,

OK, the set-up looks correct. When they press "Connect" what error do they see? This was missing from the 2nd screenshot.

If they run the 'sci_ex3_echoback' example in C2000WARE can they see data on a serial terminal? This is to verify UART connection to XDS100 / PC is working properly.

C:\ti\c2000\C2000Ware_4_03_00_00\driverlib\f2837xd\examples\cpu1\sci

Best,

Kevin

Hi Kevin,

Kevin Allen18 said:

When they press "Connect" what error do they see? This was missing from the 2nd screenshot.

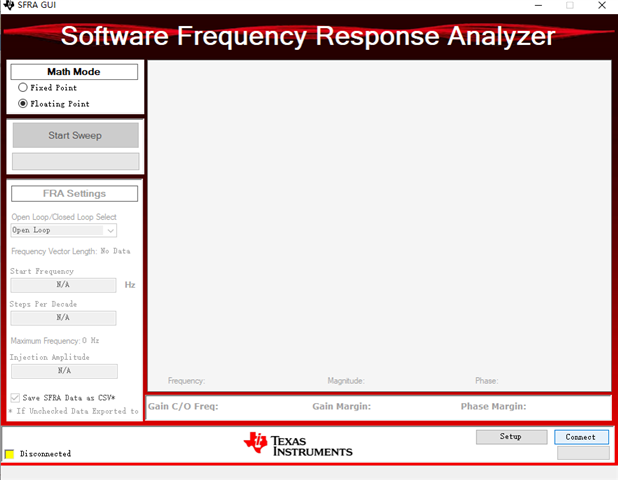

The GUI does not react and the error is: "could not connect: please check connections"

Kevin Allen18 said:

If they run the 'sci_ex3_echoback' example in C2000WARE can they see data on a serial terminal? This is to verify UART connection to XDS100 / PC is working properly.

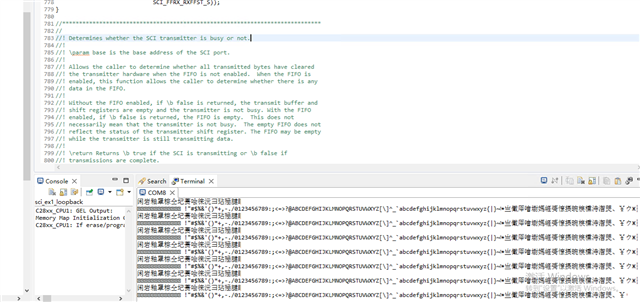

When run example C:\ti\c2000\C2000Ware_4_03_00_00\driverlib\f2837xd\examples\cpu1\sci\sci_ex1_loopback, data can be received and the port number is COM8:

Thanks and regards,

Cherry

Hi Cherry,

The sci_ex1_loopback example uses the internal SCI loopback I believe, they should try with the sci_ex3_echoback example which will use the external connections to the PC. Also can they try with the same Low Speed Clock config (LSPCLK = SYSCLK / 4) and 57600 baud rate.

Best,

Kevin

hello， Kevin， the sci_ex3_echoback example seems okay , here is the screenshoot

Hi Kevin,

Shaoxiong is the end customer and please see the response, please feel free to let me know if any questions.

Thanks and regards,

Cherry

Hi,

OK, I'm not sure why this wouldn't work. Seems the SCI / UART communications to the PC are good.

I will test the IDDK software with SFRA tool on my side next week.

Best,

Kevin

Hi,

Sorry for the delay. I just tried the example in MCSDK v4_02_00_00 with Build Level 6 and I can connect to SFRA GUI. I did not have to make any changes to the software.

Best,

Kevin

Hi,

Oh, that would explain it. Happy you figured it out.

Best,

Kevin
