RE: General Purpose GUI

/* ==============================================================================
System Name:  	HVACI_Sensorless

File Name:	  	HVACI_Sensorless.C

Description:	Primary system file for the Real Implementation of Sensorless
          		Field Orientation Control for Induction Motors

				Supports F2803x(fixed point) and F2833x(floating point)
=================================================================================  */

// Include header files used in the main function

#include "PeripheralHeaderIncludes.h"
#include "HVACI_Sensorless-Settings.h"
#include "IQmathLib.h"
#include "HVACI_Sensorless.h"
#include <math.h>


#ifdef FLASH
#pragma CODE_SECTION(MainISR,"ramfuncs");
#pragma CODE_SECTION(OffsetISR,"ramfuncs");
#endif

// Prototype statements for functions found within this file.
interrupt void MainISR(void);
interrupt void OffsetISR(void);
void DeviceInit();
void MemCopy();
void InitFlash();
void HVDMC_Protection(void);


// State Machine function prototypes
//------------------------------------
// Alpha states
void A0(void);	//state A0
void B0(void);	//state B0
void C0(void);	//state C0

// A branch states
void A1(void);	//state A1
void A2(void);	//state A2
void A3(void);	//state A3

// B branch states
void B1(void);	//state B1
void B2(void);	//state B2
void B3(void);	//state B3

// C branch states
void C1(void);	//state C1
void C2(void);	//state C2
void C3(void);	//state C3

// Variable declarations
void (*Alpha_State_Ptr)(void);	// Base States pointer
void (*A_Task_Ptr)(void);		// State pointer A branch
void (*B_Task_Ptr)(void);		// State pointer B branch
void (*C_Task_Ptr)(void);		// State pointer C branch

// Used for running BackGround in flash, and ISR in RAM
extern Uint16 *RamfuncsLoadStart, *RamfuncsLoadEnd, *RamfuncsRunStart;


int16	VTimer0[4];			// Virtual Timers slaved off CPU Timer 0 (A events)
int16	VTimer1[4]; 		// Virtual Timers slaved off CPU Timer 1 (B events)
int16	VTimer2[4]; 		// Virtual Timers slaved off CPU Timer 2 (C events)
int16	SerialCommsTimer;

// Global variables used in this system

float32 angle_value;


Uint16 OffsetFlag=0;
_iq offsetA=0;
_iq offsetB=0;
_iq offsetC=0;
_iq K1=_IQ(0.998);		//Offset filter coefficient K1: 0.05/(T+0.05);
_iq K2=_IQ(0.001999);	//Offset filter coefficient K2: T/(T+0.05);
extern _iq IQsinTable[];
extern _iq IQcosTable[];

_iq VdTesting = _IQ(0.2);			// Vd reference (pu)
_iq VqTesting = _IQ(0.2);			// Vq reference (pu)
_iq IdRef = _IQ(0.1);				// Id reference (pu)
_iq IqRef = _IQ(0.05);				// Iq reference (pu)
_iq SpeedRef = _IQ(0.3);			// Speed reference (pu)

float32 T = 0.001/ISR_FREQUENCY;    // Samping period (sec), see parameter.h

Uint32 IsrTicker = 0;
Uint16 BackTicker = 0;
Uint16 lsw=0;
Uint16 TripFlagDMC=0;				//PWM trip status

// Default ADC initialization
int ChSel[16]   = {0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0};
int	TrigSel[16] = {5,5,5,5,5,5,5,5,5,5,5,5,5,5,5,5};
int ACQPS[16]   = {8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8};

int16 DlogCh1 = 0;
int16 DlogCh2 = 0;
int16 DlogCh3 = 0;
int16 DlogCh4 = 0;

volatile Uint16 EnableFlag = FALSE;

Uint16 SpeedLoopPrescaler = 10;      // Speed loop prescaler
Uint16 SpeedLoopCount = 1;           // Speed loop counter

// Instance rotor flux and speed estimations
ACIFE fe1 = ACIFE_DEFAULTS;
ACISE se1 = ACISE_DEFAULTS;

// Instance the constant calculations for rotor flux and speed estimations
ACIFE_CONST fe1_const = ACIFE_CONST_DEFAULTS;
ACISE_CONST se1_const = ACISE_CONST_DEFAULTS;

// Instance a QEP interface driver
QEP qep1 = QEP_DEFAULTS;

// Instance a Capture interface driver
CAPTURE cap1 = CAPTURE_DEFAULTS;

// Instance a few transform objects (ICLARKE is added in SVGEN module)
CLARKE clarke1 = CLARKE_DEFAULTS;
PARK park1 = PARK_DEFAULTS;
IPARK ipark1 = IPARK_DEFAULTS;

// Instance PI regulators to regulate the d and q  axis currents, and speed
PI_CONTROLLER pi_spd = PI_CONTROLLER_DEFAULTS;
PI_CONTROLLER pi_id  = PI_CONTROLLER_DEFAULTS;
PI_CONTROLLER pi_iq  = PI_CONTROLLER_DEFAULTS;

// Instance a PWM driver instance
PWMGEN pwm1 = PWMGEN_DEFAULTS;

// Instance a PWM DAC driver instance
PWMDAC pwmdac1 = PWMDAC_DEFAULTS;

// Instance a Space Vector PWM modulator. This modulator generates a, b and c
// phases based on the d and q stationery reference frame inputs
SVGEN svgen1 = SVGEN_DEFAULTS;

// Instance a ramp controller to smoothly ramp the frequency
RMPCNTL rc1 = RMPCNTL_DEFAULTS;

//	Instance a ramp(sawtooth) generator to simulate an Anglele
RAMPGEN rg1 = RAMPGEN_DEFAULTS;

//	Instance a phase voltage calculation
PHASEVOLTAGE volt1 = PHASEVOLTAGE_DEFAULTS;

// Instance a speed calculator based on QEP
SPEED_MEAS_QEP speed1 = SPEED_MEAS_QEP_DEFAULTS;

// Instance a speed calculator based on capture Qep (for eQep of 280x only)
SPEED_MEAS_CAP speed2 = SPEED_MEAS_CAP_DEFAULTS;

// Create an instance of DATALOG Module
DLOG_4CH dlog = DLOG_4CH_DEFAULTS;


void main(void)
{

	DeviceInit(); // Device Life support & GPIO

// Only used if running from FLASH
// Note that the variable FLASH is defined by the compiler

#ifdef FLASH
// Copy time critical code and Flash setup code to RAM
// The  RamfuncsLoadStart, RamfuncsLoadEnd, and RamfuncsRunStart
// symbols are created by the linker. Refer to the linker files.
	MemCopy(&RamfuncsLoadStart, &RamfuncsLoadEnd, &RamfuncsRunStart);

// Call Flash Initialization to setup flash waitstates
// This function must reside in RAM
	InitFlash();	// Call the flash wrapper init function
#endif //(FLASH)

   // Waiting for enable flag set
   while (EnableFlag==FALSE)
    {
      BackTicker++;
    }

// Timing sync for background loops
// Timer period definitions found in device specific PeripheralHeaderIncludes.h
	CpuTimer0Regs.PRD.all =  mSec1;		// A tasks
	CpuTimer1Regs.PRD.all =  mSec5;		// B tasks
	CpuTimer2Regs.PRD.all =  mSec50;	// C tasks

// Tasks State-machine init
	Alpha_State_Ptr = &A0;
	A_Task_Ptr = &A1;
	B_Task_Ptr = &B1;
	C_Task_Ptr = &C1;

// Initialize PWM module
    pwm1.PeriodMax = SYSTEM_FREQUENCY*1000000*T/2;  // Prescaler X1 (T1), ISR period = T x 1
    pwm1.HalfPerMax=pwm1.PeriodMax/2;
    pwm1.Deadband  = 2.0*SYSTEM_FREQUENCY;     	    // 120 counts -> 2.0 usec for TBCLK = SYSCLK/1
    PWM_INIT_MACRO(1,2,3,pwm1)

// Initialize PWMDAC module
	pwmdac1.PeriodMax=500;		   	// @60Mhz, 1500->20kHz, 1000-> 30kHz, 500->60kHz
	pwmdac1.HalfPerMax=pwmdac1.PeriodMax/2;
	PWMDAC_INIT_MACRO(6,pwmdac1) 	// PWM 6A,6B
	PWMDAC_INIT_MACRO(7,pwmdac1) 	// PWM 7A,7B

// Initialize DATALOG module
    dlog.iptr1 = &DlogCh1;
    dlog.iptr2 = &DlogCh2;
    dlog.iptr3 = &DlogCh3;
    dlog.iptr4 = &DlogCh4;
    dlog.trig_value = 0x1;
    dlog.size = 0x0C8;
    dlog.prescalar = 5;
    dlog.init(&dlog);

// Initialize ADC for DMC Kit Rev 1.1
	ChSel[0]=1;		// Dummy meas. avoid 1st sample issue Rev0 Picollo*/
	ChSel[1]=1;		// ChSelect: ADC A1-> Phase A Current
	ChSel[2]=9;		// ChSelect: ADC B1-> Phase B Current
	ChSel[3]=3;		// ChSelect: ADC A3-> Phase C Current
	ChSel[4]=15;	// ChSelect: ADC B7-> Phase A Voltage
	ChSel[5]=14;	// ChSelect: ADC B6-> Phase B Voltage
	ChSel[6]=12;	// ChSelect: ADC B4-> Phase C Voltage
	ChSel[7]=7;		// ChSelect: ADC A7-> DC Bus  Voltage

// Initialize ADC module
	ADC_MACRO_INIT(ChSel,TrigSel,ACQPS)

// Initialize QEP module
    qep1.LineEncoder = 2048;
    qep1.MechScaler = _IQ30(0.25/qep1.LineEncoder);
    qep1.PolePairs = POLES/2;
    qep1.CalibratedAngle = 0;
	QEP_INIT_MACRO(1,qep1)

// Initialize CAP module
	CAP_INIT_MACRO(1)

// Initialize the Speed module for QEP based speed calculation
    speed1.K1 = _IQ21(1/(BASE_FREQ*T));
    speed1.K2 = _IQ(1/(1+T*2*PI*5));  // Low-pass cut-off frequency
    speed1.K3 = _IQ(1)-speed1.K2;
    speed1.BaseRpm = 120*(BASE_FREQ/POLES);

// Initialize the Speed module for capture eQEP based speed calculation (low speed range)
    speed2.InputSelect = 1;
 	speed2.BaseRpm = 120*(BASE_FREQ/POLES);
	speed2.SpeedScaler = 60*(SYSTEM_FREQUENCY*1000000/(1*2048*speed2.BaseRpm));

// Initialize the RAMPGEN module
    rg1.StepAngleMax = _IQ(BASE_FREQ*T);

// Initialize the aci flux estimator constants module
	fe1_const.Rs = RS;
	fe1_const.Rr = RR;
	fe1_const.Ls = LS;
	fe1_const.Lr = LR;
	fe1_const.Lm = LM;
	fe1_const.Ib = BASE_CURRENT;
	fe1_const.Vb = BASE_VOLTAGE;
	fe1_const.Ts = T;
	ACIFE_CONST_MACRO(fe1_const)

// Initialize the aci flux estimator module
 	fe1.K1 = _IQ(fe1_const.K1);
 	fe1.K2 = _IQ(fe1_const.K2);
 	fe1.K3 = _IQ(fe1_const.K3);
 	fe1.K4 = _IQ(fe1_const.K4);
 	fe1.K5 = _IQ(fe1_const.K5);
 	fe1.K6 = _IQ(fe1_const.K6);
 	fe1.K7 = _IQ(fe1_const.K7);
 	fe1.K8 = _IQ(fe1_const.K8);
    fe1.Kp = _IQ(2.8);
    fe1.Ki = _IQ(T/0.45);

// Initialize the aci speed estimator constants module
	se1_const.Rr = RR;
	se1_const.Lr = LR;
	se1_const.fb = BASE_FREQ;
	se1_const.fc = 3;
	se1_const.Ts = T;
	ACISE_CONST_MACRO(se1_const)

// Initialize the  aci speed estimator module
 	se1.K1 = _IQ(se1_const.K1);
 	se1.K2 = _IQ21(se1_const.K2);
 	se1.K3 = _IQ(se1_const.K3);
 	se1.K4 = _IQ(se1_const.K4);
 	se1.BaseRpm = 120*BASE_FREQ/POLES;

// Initialize the PI module for Id
    pi_spd.Kp=_IQ(2.0);
	pi_spd.Ki=_IQ(T*SpeedLoopPrescaler/0.5);
	pi_spd.Umax =_IQ(0.95);
	pi_spd.Umin =_IQ(-0.95);

// Initialize the PI module for Iq
	pi_id.Kp=_IQ(1.0);
	pi_id.Ki=_IQ(T/0.004);
	pi_id.Umax =_IQ(0.3);
	pi_id.Umin =_IQ(-0.3);

// Initialize the PI module for speed
	pi_iq.Kp=_IQ(1.0);
	pi_iq.Ki=_IQ(T/0.004);
	pi_iq.Umax =_IQ(0.8);
	pi_iq.Umin =_IQ(-0.8);

//  Note that the vectorial sum of d-q PI outputs should be less than 1.0 which refers to maximum duty cycle for SVGEN.
//  Another duty cycle limiting factor is current sense through shunt resistors which depends on hardware/software implementation.
//  Depending on the application requirements 3,2 or a single shunt resistor can be used for current waveform reconstruction.
//  The higher number of shunt resistors allow the higher duty cycle operation and better dc bus utilization.
//  The users should adjust the PI saturation levels carefully during open loop tests (i.e pi_id.Umax, pi_iq.Umax and Umins) as in project manuals.
//  Violation of this procedure yields distorted current waveforms and unstable closed loop operations which may damage the inverter.

//Call HVDMC Protection function
	HVDMC_Protection();

// Reassign ISRs.

	EALLOW;	// This is needed to write to EALLOW protected registers
	PieVectTable.EPWM1_INT = &OffsetISR;
	EDIS;

// Enable PIE group 3 interrupt 1 for EPWM1_INT
    PieCtrlRegs.PIEIER3.bit.INTx1 = 1;

// Enable CNT_zero interrupt using EPWM1 Time-base
    EPwm1Regs.ETSEL.bit.INTEN = 1;   // Enable EPWM1INT generation
    EPwm1Regs.ETSEL.bit.INTSEL = 2;  // Enable interrupt period event
    EPwm1Regs.ETPS.bit.INTPRD = 1;   // Generate interrupt on the 1st event
	EPwm1Regs.ETCLR.bit.INT = 1;     // Enable more interrupts

// Enable CPU INT3 for EPWM1_INT:
	IER |= M_INT3;
// Enable global Interrupts and higher priority real-time debug events:
	EINT;   // Enable Global interrupt INTM
	ERTM;	// Enable Global realtime interrupt DBGM

// IDLE loop. Just sit and loop forever:
	for(;;)  //infinite loop
	{
		// State machine entry & exit point
		//===========================================================
		(*Alpha_State_Ptr)();	// jump to an Alpha state (A0,B0,...)
		//===========================================================

	}
} //END MAIN CODE

//=================================================================================
//	STATE-MACHINE SEQUENCING AND SYNCRONIZATION FOR SLOW BACKGROUND TASKS
//=================================================================================

//--------------------------------- FRAMEWORK -------------------------------------
void A0(void)
{
	// loop rate synchronizer for A-tasks
	if(CpuTimer0Regs.TCR.bit.TIF == 1)
	{
		CpuTimer0Regs.TCR.bit.TIF = 1;	// clear flag

		//-----------------------------------------------------------
		(*A_Task_Ptr)();		// jump to an A Task (A1,A2,A3,...)
		//-----------------------------------------------------------

		VTimer0[0]++;			// virtual timer 0, instance 0 (spare)
		SerialCommsTimer++;
	}

	Alpha_State_Ptr = &B0;		// Comment out to allow only A tasks
}

void B0(void)
{
	// loop rate synchronizer for B-tasks
	if(CpuTimer1Regs.TCR.bit.TIF == 1)
	{
		CpuTimer1Regs.TCR.bit.TIF = 1;				// clear flag

		//-----------------------------------------------------------
		(*B_Task_Ptr)();		// jump to a B Task (B1,B2,B3,...)
		//-----------------------------------------------------------
		VTimer1[0]++;			// virtual timer 1, instance 0 (spare)
	}

	Alpha_State_Ptr = &C0;		// Allow C state tasks
}

void C0(void)
{
	// loop rate synchronizer for C-tasks
	if(CpuTimer2Regs.TCR.bit.TIF == 1)
	{
		CpuTimer2Regs.TCR.bit.TIF = 1;				// clear flag

		//-----------------------------------------------------------
		(*C_Task_Ptr)();		// jump to a C Task (C1,C2,C3,...)
		//-----------------------------------------------------------
		VTimer2[0]++;			//virtual timer 2, instance 0 (spare)
	}

	Alpha_State_Ptr = &A0;	// Back to State A0
}


//=================================================================================
//	A - TASKS (executed in every 1 msec)
//=================================================================================
//--------------------------------------------------------
void A1(void) // SPARE (not used)
//--------------------------------------------------------
{
	if(EPwm1Regs.TZFLG.bit.OST==0x1)
	TripFlagDMC=1;      // Trip on DMC (halt and IPM fault trip )

	//-------------------
	//the next time CpuTimer0 'counter' reaches Period value go to A2
	A_Task_Ptr = &A2;
	//-------------------
}

//-----------------------------------------------------------------
void A2(void) // SPARE (not used)
//-----------------------------------------------------------------
{

	//-------------------
	//the next time CpuTimer0 'counter' reaches Period value go to A3
	A_Task_Ptr = &A3;
	//-------------------
}

//-----------------------------------------
void A3(void) // SPARE (not used)
//-----------------------------------------
{

	//-----------------
	//the next time CpuTimer0 'counter' reaches Period value go to A1
	A_Task_Ptr = &A1;
	//-----------------
}


//=================================================================================
//	B - TASKS (executed in every 5 msec)
//=================================================================================

//----------------------------------- USER ----------------------------------------

//----------------------------------------
void B1(void) // Toggle GPIO-00
//----------------------------------------
{

	//-----------------
	//the next time CpuTimer1 'counter' reaches Period value go to B2
	B_Task_Ptr = &B2;
	//-----------------
}

//----------------------------------------
void B2(void) //  SPARE
//----------------------------------------
{

	//-----------------
	//the next time CpuTimer1 'counter' reaches Period value go to B3
	B_Task_Ptr = &B3;
	//-----------------
}

//----------------------------------------
void B3(void) //  SPARE
//----------------------------------------
{

	//-----------------
	//the next time CpuTimer1 'counter' reaches Period value go to B1
	B_Task_Ptr = &B1;
	//-----------------
}


//=================================================================================
//	C - TASKS (executed in every 50 msec)
//=================================================================================

//--------------------------------- USER ------------------------------------------

//----------------------------------------
void C1(void) 	// Toggle GPIO-34
//----------------------------------------
{

	if(EPwm1Regs.TZFLG.bit.OST==0x1)			// TripZ for PWMs is low (fault trip)
	  { TripFlagDMC=1;
	  }


	GpioDataRegs.GPBTOGGLE.bit.GPIO34 = 1;	   // Turn on/off LD3 on the controlCARD

	//-----------------
	//the next time CpuTimer2 'counter' reaches Period value go to C2
	C_Task_Ptr = &C2;
	//-----------------

}

//----------------------------------------
void C2(void) //  SPARE
//----------------------------------------
{

	//-----------------
	//the next time CpuTimer2 'counter' reaches Period value go to C3
	C_Task_Ptr = &C3;
	//-----------------
}


//-----------------------------------------
void C3(void) //  SPARE
//-----------------------------------------
{

	//-----------------
	//the next time CpuTimer2 'counter' reaches Period value go to C1
	C_Task_Ptr = &C1;
	//-----------------
}




//MainISR
interrupt void MainISR(void)
{

// Verifying the ISR
    IsrTicker++;

// =============================== LEVEL 1 ======================================
//	  Checks target independent modules, duty cycle waveforms and PWM update
//	  Keep the motors disconnected at this level
// ==============================================================================

#if (BUILDLEVEL==LEVEL1)

// ------------------------------------------------------------------------------
//  Connect inputs of the RMP module and call the ramp control macro
// ------------------------------------------------------------------------------
    rc1.TargetValue = SpeedRef;
	RC_MACRO(rc1)

// ------------------------------------------------------------------------------
//  Connect inputs of the RAMP GEN module and call the ramp generator macro
// ------------------------------------------------------------------------------
    rg1.Freq = rc1.SetpointValue;
	RG_MACRO(rg1)

// ------------------------------------------------------------------------------
//  Connect inputs of the INV_PARK module and call the inverse park trans. macro
//	There are two option for trigonometric functions:
//  IQ sin/cos look-up table provides 512 discrete sin and cos points in Q30 format
//  IQsin/cos PU functions interpolate the data in the lookup table yielding higher resolution.
// ------------------------------------------------------------------------------
    ipark1.Ds = VdTesting;
    ipark1.Qs = VqTesting;

	//ipark1.Sine  =_IQ30toIQ(IQsinTable[_IQtoIQ9(rg1.Out)]);
    //ipark1.Cosine=_IQ30toIQ(IQcosTable[_IQtoIQ9(rg1.Out)]);

	ipark1.Sine=_IQsinPU(rg1.Out);
    ipark1.Cosine=_IQcosPU(rg1.Out);
	IPARK_MACRO(ipark1)

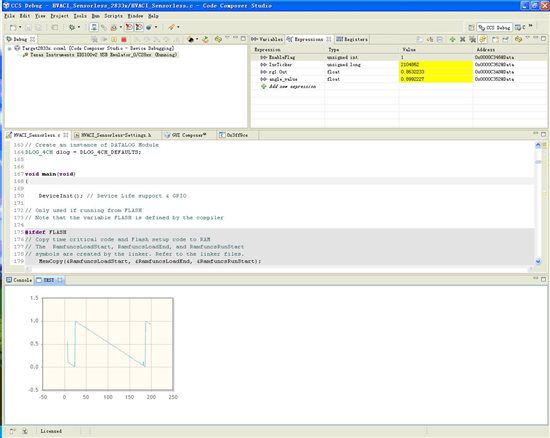

 // TEST FOR GUI COMPOSER
   angle_value = rg1.Out;
//	angle_value = ipark1.Sine;


// ------------------------------------------------------------------------------
//  Connect inputs of the SVGEN_DQ module and call the space-vector gen. macro
// ------------------------------------------------------------------------------
  	svgen1.Ualpha = ipark1.Alpha;
 	svgen1.Ubeta = ipark1.Beta;
	SVGENDQ_MACRO(svgen1)

// ------------------------------------------------------------------------------
//  Connect inputs of the PWM_DRV module and call the PWM signal generation macro
// ------------------------------------------------------------------------------
    pwm1.MfuncC1 = svgen1.Ta;
    pwm1.MfuncC2 = svgen1.Tb;
    pwm1.MfuncC3 = svgen1.Tc;
	PWM_MACRO(1,2,3,pwm1)							// Calculate the new PWM compare values

// ------------------------------------------------------------------------------
//    Connect inputs of the PWMDAC module
// ------------------------------------------------------------------------------
	pwmdac1.MfuncC1 = svgen1.Ta;
    pwmdac1.MfuncC2 = svgen1.Tb;
    PWMDAC_MACRO(6,pwmdac1)	  						// PWMDAC 6A, 6B

    pwmdac1.MfuncC1 = svgen1.Tc;
    pwmdac1.MfuncC2 = svgen1.Tb-svgen1.Tc;
	PWMDAC_MACRO(7,pwmdac1)

// ------------------------------------------------------------------------------
//    Connect inputs of the DATALOG module
// ------------------------------------------------------------------------------
    DlogCh1 = _IQtoQ15(svgen1.Ta);
    DlogCh2 = _IQtoQ15(svgen1.Tb);
    DlogCh3 = _IQtoQ15(svgen1.Tc);
    DlogCh4 = _IQtoQ15(svgen1.Tb-svgen1.Tc);

#endif // (BUILDLEVEL==LEVEL1)

// =============================== LEVEL 2 ======================================
//	  Level 2 verifies the analog-to-digital conversion, offset compensation,
//    clarke/park transformations (CLARKE/PARK), phase voltage calculations
// ==============================================================================

#if (BUILDLEVEL==LEVEL2)

// ------------------------------------------------------------------------------
//  Connect inputs of the RMP module and call the ramp control macro
// ------------------------------------------------------------------------------
    rc1.TargetValue = SpeedRef;
	RC_MACRO(rc1)

// ------------------------------------------------------------------------------
//  Connect inputs of the RAMP GEN module and call the ramp generator macro
// ------------------------------------------------------------------------------
    rg1.Freq = rc1.SetpointValue;
	RG_MACRO(rg1)

// ------------------------------------------------------------------------------
//  Measure phase currents, subtract the offset and normalize from (-0.5,+0.5) to (-1,+1).
//	Connect inputs of the CLARKE module and call the clarke transformation macro
// ------------------------------------------------------------------------------
	#ifdef DSP2833x_DEVICE_H
	clarke1.As=((AdcMirror.ADCRESULT1)*0.00024414-offsetA)*2*0.909; // Phase A curr.
	clarke1.Bs=((AdcMirror.ADCRESULT2)*0.00024414-offsetB)*2*0.909; // Phase B curr.
	#endif														   // ((ADCmeas(q12)/2^12)-offset)*2*(3.0/3.3)

	#ifdef DSP2803x_DEVICE_H
	clarke1.As = _IQmpy2(_IQ12toIQ(AdcResult.ADCRESULT1)-offsetA); // Phase A curr.
	clarke1.Bs = _IQmpy2(_IQ12toIQ(AdcResult.ADCRESULT2)-offsetB); // Phase B curr.
	#endif														   // (ADCmeas(q12->q24)-offset)*2

	CLARKE_MACRO(clarke1)

// ------------------------------------------------------------------------------
//  Connect inputs of the PARK module and call the park trans. macro
// ------------------------------------------------------------------------------
	park1.Alpha = clarke1.Alpha;
	park1.Beta = clarke1.Beta;
	park1.Angle = rg1.Out;
	park1.Sine = _IQsinPU(park1.Angle);
	park1.Cosine = _IQcosPU(park1.Angle);
	PARK_MACRO(park1)

// ------------------------------------------------------------------------------
//	Connect inputs of the INV_PARK module and call the inverse park trans. macro
// ------------------------------------------------------------------------------
    ipark1.Ds = VdTesting;
    ipark1.Qs = VqTesting;
	ipark1.Sine=park1.Sine;
    ipark1.Cosine=park1.Cosine;
	IPARK_MACRO(ipark1)

// ------------------------------------------------------------------------------
//  Connect inputs of the VOLT_CALC module and call the phase voltage calc. macro
// ------------------------------------------------------------------------------
	#ifdef DSP2833x_DEVICE_H
	volt1.DcBusVolt = ((AdcMirror.ADCRESULT7)*0.00024414)*0.909; // DC Bus voltage meas.
    #endif														 // (ADCmeas(q12)/2^12)*(3.0V/3.3V)

    #ifdef DSP2803x_DEVICE_H
	volt1.DcBusVolt = _IQ12toIQ(AdcResult.ADCRESULT7);	     	 // DC Bus voltage meas.
    #endif

    volt1.MfuncV1 = svgen1.Ta;
    volt1.MfuncV2 = svgen1.Tb;
    volt1.MfuncV3 = svgen1.Tc;
    PHASEVOLT_MACRO(volt1)

// ------------------------------------------------------------------------------
//  Connect inputs of the SVGEN_DQ module and call the space-vector gen. macro
// ------------------------------------------------------------------------------
  	svgen1.Ualpha = ipark1.Alpha;
 	svgen1.Ubeta = ipark1.Beta;
  	SVGENDQ_MACRO(svgen1)

// ------------------------------------------------------------------------------
//  Connect inputs of the PWM_DRV module and call the PWM signal generation macro
// ------------------------------------------------------------------------------
    pwm1.MfuncC1 = svgen1.Ta;
    pwm1.MfuncC2 = svgen1.Tb;
    pwm1.MfuncC3 = svgen1.Tc;
	PWM_MACRO(1,2,3,pwm1)							// Calculate the new PWM compare values

// ------------------------------------------------------------------------------
//    Connect inputs of the PWMDAC module
// ------------------------------------------------------------------------------
	pwmdac1.MfuncC1 = svgen1.Ta;
    pwmdac1.MfuncC2 = svgen1.Tb;
    PWMDAC_MACRO(6,pwmdac1)	  						// PWMDAC 6A, 6B

    pwmdac1.MfuncC1 = svgen1.Tc;
    pwmdac1.MfuncC2 = svgen1.Tb-svgen1.Tc;
	PWMDAC_MACRO(7,pwmdac1)		  					// PWMDAC 7A, 7B

// ------------------------------------------------------------------------------
//  Connect inputs of the DATALOG module
// ------------------------------------------------------------------------------
    DlogCh1 = _IQtoQ15(clarke1.As);
    DlogCh2 = _IQtoQ15(clarke1.Bs);
    DlogCh3 = _IQtoQ15(svgen1.Ta);
    DlogCh4 = _IQtoQ15(volt1.VphaseA);


#endif // (BUILDLEVEL==LEVEL2)

// =============================== LEVEL 3 ======================================
//	Level 3 verifies the dq-axis current regulation performed by PI and speed
//	measurement modules
// ==============================================================================

#if (BUILDLEVEL==LEVEL3)

// ------------------------------------------------------------------------------
//  Connect inputs of the RMP module and call the ramp control macro
// ------------------------------------------------------------------------------
    rc1.TargetValue = SpeedRef;
	RC_MACRO(rc1)

// ------------------------------------------------------------------------------
//  Connect inputs of the RAMP GEN module and call the ramp generator macro
// ------------------------------------------------------------------------------
    rg1.Freq = rc1.SetpointValue;
	RG_MACRO(rg1)

// ------------------------------------------------------------------------------
//  Measure phase currents, subtract the offset and normalize from (-0.5,+0.5) to (-1,+1).
//	Connect inputs of the CLARKE module and call the clarke transformation macro
// ------------------------------------------------------------------------------
	#ifdef DSP2833x_DEVICE_H
	clarke1.As=((AdcMirror.ADCRESULT1)*0.00024414-offsetA)*2*0.909; // Phase A curr.
	clarke1.Bs=((AdcMirror.ADCRESULT2)*0.00024414-offsetB)*2*0.909; // Phase B curr.
	#endif							   						        // ((ADCmeas(q12)/2^12)-offset)*2*(3.0/3.3)

	#ifdef DSP2803x_DEVICE_H
	clarke1.As = _IQmpy2(_IQ12toIQ(AdcResult.ADCRESULT1)-offsetA); // Phase A curr.
	clarke1.Bs = _IQmpy2(_IQ12toIQ(AdcResult.ADCRESULT2)-offsetB); // Phase B curr.
	#endif														   // (ADCmeas(q12->q24)-offset)*2

	CLARKE_MACRO(clarke1)

// ------------------------------------------------------------------------------
//  Connect inputs of the PARK module and call the park trans. macro
// ------------------------------------------------------------------------------
	park1.Alpha = clarke1.Alpha;
	park1.Beta  = clarke1.Beta;
	park1.Angle = rg1.Out;
	park1.Sine  = _IQsinPU(park1.Angle);
	park1.Cosine= _IQcosPU(park1.Angle);
	PARK_MACRO(park1)

// ------------------------------------------------------------------------------
//  Connect inputs of the PI module and call the PI IQ controller macro
// ------------------------------------------------------------------------------
    pi_iq.Ref = IqRef;
	pi_iq.Fbk = park1.Qs;
	PI_MACRO(pi_iq)

// ------------------------------------------------------------------------------
//  Connect inputs of the PI module and call the PI ID controller macro
// ------------------------------------------------------------------------------
    pi_id.Ref = IdRef;
	pi_id.Fbk = park1.Ds;
	PI_MACRO(pi_id)

// ------------------------------------------------------------------------------
//	Connect inputs of the INV_PARK module and call the inverse park trans. macro
// ------------------------------------------------------------------------------
    ipark1.Ds = pi_id.Out;
    ipark1.Qs = pi_iq.Out ;
	ipark1.Sine   = park1.Sine;
    ipark1.Cosine = park1.Cosine;
	IPARK_MACRO(ipark1)

// ------------------------------------------------------------------------------
//  Call the QEP macro (if incremental encoder used for speed sensing)
//  Connect inputs of the SPEED_FR module and call the speed calculation macro
// ------------------------------------------------------------------------------
    QEP_MACRO(1,qep1)

    speed1.ElecTheta = qep1.ElecTheta;
    speed1.DirectionQep = (int32)(qep1.DirectionQep);
    SPEED_FR_MACRO(speed1)

// ------------------------------------------------------------------------------
//  Call the CAP macro (if sprocket or spur gear used for speed sensing)
//  Connect inputs of the SPEED_PR module and call the speed calculation macro
// ------------------------------------------------------------------------------
	CAP_MACRO(1,cap1)

    if(cap1.CapReturn ==0)             				     // Check the capture return
    {
        speed2.EventPeriod=(int32)(cap1.EventPeriod);    // Read out new event period
        SPEED_PR_MACRO(speed2)                 			 // Call the speed macro
    }

// ------------------------------------------------------------------------------
//  Connect inputs of the VOLT_CALC module and call the phase voltage calc. macro
// ------------------------------------------------------------------------------
	#ifdef DSP2833x_DEVICE_H
	volt1.DcBusVolt = ((AdcMirror.ADCRESULT7)*0.00024414)*0.909; // DC Bus voltage meas.
    #endif														 // (ADCmeas(q12)/2^12)*(3.0V/3.3V)

    #ifdef DSP2803x_DEVICE_H
	volt1.DcBusVolt = _IQ12toIQ(AdcResult.ADCRESULT7);	     // DC Bus voltage meas.
    #endif

    volt1.MfuncV1 = svgen1.Ta;
    volt1.MfuncV2 = svgen1.Tb;
    volt1.MfuncV3 = svgen1.Tc;
    PHASEVOLT_MACRO(volt1)

// ------------------------------------------------------------------------------
//  Connect inputs of the SVGEN_DQ module and call the space-vector gen. macro
// ------------------------------------------------------------------------------
  	svgen1.Ualpha = ipark1.Alpha;
 	svgen1.Ubeta = ipark1.Beta;
  	SVGENDQ_MACRO(svgen1)

// ------------------------------------------------------------------------------
//  Connect inputs of the PWM_DRV module and call the PWM signal generation macro
// ------------------------------------------------------------------------------
    pwm1.MfuncC1 = svgen1.Ta;
    pwm1.MfuncC2 = svgen1.Tb;
    pwm1.MfuncC3 = svgen1.Tc;
	PWM_MACRO(1,2,3,pwm1)							// Calculate the new PWM compare values

// ------------------------------------------------------------------------------
//    Connect inputs of the PWMDAC module
// ------------------------------------------------------------------------------
	pwmdac1.MfuncC1 = svgen1.Ta;
    pwmdac1.MfuncC2 = svgen1.Tb;
    PWMDAC_MACRO(6,pwmdac1)	  						// PWMDAC 6A, 6B

    pwmdac1.MfuncC1 = svgen1.Tc;
    pwmdac1.MfuncC2 = svgen1.Tb-svgen1.Tc;
	PWMDAC_MACRO(7,pwmdac1)		  					// PWMDAC 7A, 7B
// ------------------------------------------------------------------------------
//    Connect inputs of the DATALOG module
// ------------------------------------------------------------------------------
    DlogCh1 = _IQtoQ15(svgen1.Ta);
    DlogCh2 = _IQtoQ15(qep1.ElecTheta);
    DlogCh3 = _IQtoQ15(clarke1.As);
    DlogCh4 = _IQtoQ15(clarke1.Bs);


#endif // (BUILDLEVEL==LEVEL3)

// =============================== LEVEL 4 ======================================
//	  Level 4 verifies the flux estimation (ACI_FE) and open-loop
//	  speed estimation (ACI_SE).
// ==============================================================================

#if (BUILDLEVEL==LEVEL4)

// ------------------------------------------------------------------------------
//  Connect inputs of the RMP module and call the ramp control macro
// ------------------------------------------------------------------------------
    rc1.TargetValue = SpeedRef;
	RC_MACRO(rc1)

// ------------------------------------------------------------------------------
//  Connect inputs of the RAMP GEN module and call the ramp generator macro
// ------------------------------------------------------------------------------
    rg1.Freq = rc1.SetpointValue;
	RG_MACRO(rg1)

// ------------------------------------------------------------------------------
//  Measure phase currents, subtract the offset and normalize from (-0.5,+0.5) to (-1,+1).
//	Connect inputs of the CLARKE module and call the clarke transformation macro
// ------------------------------------------------------------------------------
	#ifdef DSP2833x_DEVICE_H
	clarke1.As=((AdcMirror.ADCRESULT1)*0.00024414-offsetA)*2*0.909; // Phase A curr.
	clarke1.Bs=((AdcMirror.ADCRESULT2)*0.00024414-offsetB)*2*0.909; // Phase B curr.
	#endif												 // ((ADCmeas(q12)/2^12)-offset)*2*(3.0/3.3)

	#ifdef DSP2803x_DEVICE_H
	clarke1.As = _IQmpy2(_IQ12toIQ(AdcResult.ADCRESULT1)-offsetA); // Phase A curr.
	clarke1.Bs = _IQmpy2(_IQ12toIQ(AdcResult.ADCRESULT2)-offsetB); // Phase B curr.
	#endif														   // (ADCmeas(q12->q24)-offset)*2

	CLARKE_MACRO(clarke1)

// ------------------------------------------------------------------------------
//  Connect inputs of the PARK module and call the park trans. macro
// ------------------------------------------------------------------------------
	park1.Alpha = clarke1.Alpha;
	park1.Beta  = clarke1.Beta;
	park1.Angle = rg1.Out;
	park1.Sine  = _IQsinPU(park1.Angle);
	park1.Cosine= _IQcosPU(park1.Angle);
	PARK_MACRO(park1)

// ------------------------------------------------------------------------------
//  Connect inputs of the PI module and call the PI IQ controller macro
// ------------------------------------------------------------------------------
    pi_iq.Ref = IqRef;
	pi_iq.Fbk = park1.Qs;
	PI_MACRO(pi_iq)

// ------------------------------------------------------------------------------
//  Connect inputs of the PI module and call the PI ID controller macro
// ------------------------------------------------------------------------------
    pi_id.Ref = IdRef;
	pi_id.Fbk = park1.Ds;
	PI_MACRO(pi_id)

// ------------------------------------------------------------------------------
//	Connect inputs of the INV_PARK module and call the inverse park trans. macro
// ------------------------------------------------------------------------------
    ipark1.Ds = pi_id.Out;
    ipark1.Qs = pi_iq.Out ;
	ipark1.Sine   = park1.Sine;
    ipark1.Cosine = park1.Cosine;
	IPARK_MACRO(ipark1)

// ------------------------------------------------------------------------------
//  Call the QEP macro (if incremental encoder used for speed sensing)
//  Connect inputs of the SPEED_FR module and call the speed calculation macro
// ------------------------------------------------------------------------------
    QEP_MACRO(1,qep1)

    speed1.ElecTheta = qep1.ElecTheta;
    speed1.DirectionQep = (int32)(qep1.DirectionQep);
    SPEED_FR_MACRO(speed1)

// ------------------------------------------------------------------------------
//  Call the CAP macro (if sprocket or spur gear used for speed sensing)
//  Connect inputs of the SPEED_PR module and call the speed calculation macro
// ------------------------------------------------------------------------------
	CAP_MACRO(1,cap1)

    if(cap1.CapReturn ==0)             				     // Check the capture return
    {
        speed2.EventPeriod=(int32)(cap1.EventPeriod);    // Read out new event period
        SPEED_PR_MACRO(speed2)                 			 // Call the speed macro
    }

// ------------------------------------------------------------------------------
//  Connect inputs of the VOLT_CALC module and call the phase voltage calc. macro
// ------------------------------------------------------------------------------
	#ifdef DSP2833x_DEVICE_H
	volt1.DcBusVolt = ((AdcMirror.ADCRESULT7)*0.00024414)*0.909; // DC Bus voltage meas.
    #endif														 // (ADCmeas(q12)/2^12)*(3.0V/3.3V)

    #ifdef DSP2803x_DEVICE_H
	volt1.DcBusVolt = _IQ12toIQ(AdcResult.ADCRESULT7);	         // DC Bus voltage meas.
    #endif

    volt1.MfuncV1 = svgen1.Ta;
    volt1.MfuncV2 = svgen1.Tb;
    volt1.MfuncV3 = svgen1.Tc;
    PHASEVOLT_MACRO(volt1)

// ------------------------------------------------------------------------------
//    Connect inputs of the ACI module and call the flux estimation macro
// ------------------------------------------------------------------------------
 	fe1.UDsS = volt1.Valpha;
	fe1.UQsS = volt1.Vbeta;
 	fe1.IDsS = clarke1.Alpha;
	fe1.IQsS = clarke1.Beta;
	ACIFE_MACRO(fe1)

// ------------------------------------------------------------------------------
//    Connect inputs of the ACI module and call the speed estimation macro
// ------------------------------------------------------------------------------
 	se1.IDsS = clarke1.Alpha;
	se1.IQsS = clarke1.Beta;
 	se1.PsiDrS = fe1.PsiDrS;
	se1.PsiQrS = fe1.PsiQrS;
	se1.ThetaFlux = fe1.ThetaFlux;
	ACISE_MACRO(se1)

// ------------------------------------------------------------------------------
//  Connect inputs of the SVGEN_DQ module and call the space-vector gen. macro
// ------------------------------------------------------------------------------
  	svgen1.Ualpha = ipark1.Alpha;
 	svgen1.Ubeta = ipark1.Beta;
  	SVGENDQ_MACRO(svgen1)

// ------------------------------------------------------------------------------
//  Connect inputs of the PWM_DRV module and call the PWM signal generation macro
// ------------------------------------------------------------------------------
    pwm1.MfuncC1 = svgen1.Ta;
    pwm1.MfuncC2 = svgen1.Tb;
    pwm1.MfuncC3 = svgen1.Tc;
	PWM_MACRO(1,2,3,pwm1)							// Calculate the new PWM compare values

// ------------------------------------------------------------------------------
//    Connect inputs of the PWMDAC module
// ------------------------------------------------------------------------------
	pwmdac1.MfuncC1 = fe1.PsiQrS;
    pwmdac1.MfuncC2 = fe1.PsiDrS;
    PWMDAC_MACRO(6,pwmdac1)	  						// PWMDAC 6A, 6B

    pwmdac1.MfuncC1 = rg1.Out;
    pwmdac1.MfuncC2 = fe1.ThetaFlux;
	PWMDAC_MACRO(7,pwmdac1)		  					// PWMDAC 7A, 7B

// ------------------------------------------------------------------------------
//    Connect inputs of the DATALOG module
// ------------------------------------------------------------------------------
    DlogCh1 = _IQtoQ15(fe1.PsiQrS);
    DlogCh2 = _IQtoQ15(fe1.PsiDrS);
    DlogCh3 = _IQtoQ15(fe1.ThetaFlux);
    DlogCh4 = _IQtoQ15(clarke1.As);

#endif // (BUILDLEVEL==LEVEL4)


// =============================== LEVEL 5 ======================================
//	  Level 5 verifies the speed regulator performed by PI module.
//	  The system speed loop is closed by using the measured speed as a feedback.
// ==============================================================================
//  lsw=0, close the current loop.
//	lsw=1, close the speed loop using measured speed.

#if (BUILDLEVEL==LEVEL5)

// ------------------------------------------------------------------------------
//  Connect inputs of the RMP module and call the ramp control macro
// ------------------------------------------------------------------------------
    rc1.TargetValue = SpeedRef;
	RC_MACRO(rc1)

// ------------------------------------------------------------------------------
//  Connect inputs of the RAMP GEN module and call the ramp generator macro
// ------------------------------------------------------------------------------
    rg1.Freq = rc1.SetpointValue;
	RG_MACRO(rg1)

// ------------------------------------------------------------------------------
//  Measure phase currents, subtract the offset and normalize from (-0.5,+0.5) to (-1,+1).
//	Connect inputs of the CLARKE module and call the clarke transformation macro
// ------------------------------------------------------------------------------
	#ifdef DSP2833x_DEVICE_H
	clarke1.As=((AdcMirror.ADCRESULT1)*0.00024414-offsetA)*2*0.909; // Phase A curr.
	clarke1.Bs=((AdcMirror.ADCRESULT2)*0.00024414-offsetB)*2*0.909; // Phase B curr.
	#endif													        // ((ADCmeas(q12)/2^12)-offset)*2*(3.0/3.3)

	#ifdef DSP2803x_DEVICE_H
	clarke1.As = _IQmpy2(_IQ12toIQ(AdcResult.ADCRESULT1)-offsetA); // Phase A curr.
	clarke1.Bs = _IQmpy2(_IQ12toIQ(AdcResult.ADCRESULT2)-offsetB); // Phase B curr.
	#endif														   // (ADCmeas(q12->q24)-offset)*2

	CLARKE_MACRO(clarke1)

// ------------------------------------------------------------------------------
//  Connect inputs of the PARK module and call the park trans. macro
// ------------------------------------------------------------------------------
	park1.Alpha = clarke1.Alpha;
	park1.Beta  = clarke1.Beta;
	if(lsw==0) park1.Angle = rg1.Out;
	else park1.Angle = fe1.ThetaFlux;
	park1.Sine  = _IQsinPU(park1.Angle);
	park1.Cosine= _IQcosPU(park1.Angle);
	PARK_MACRO(park1)

// ------------------------------------------------------------------------------
//  Connect inputs of the PI module and call the PI SPD controller macro
// ------------------------------------------------------------------------------
    if (SpeedLoopCount==SpeedLoopPrescaler)
     {
      pi_spd.Ref = rc1.SetpointValue;
      pi_spd.Fbk = speed1.Speed;
	  PI_MACRO(pi_spd);
      SpeedLoopCount=1;
     }
    else SpeedLoopCount++;

	if(lsw==0)	{pi_spd.ui=0; pi_spd.i1=0;}
// ------------------------------------------------------------------------------
//  Connect inputs of the PI module and call the PI IQ controller macro
// ------------------------------------------------------------------------------
    if(lsw==0) pi_iq.Ref = IqRef;
    else pi_iq.Ref =  pi_spd.Out;
	pi_iq.Fbk = park1.Qs;
	PI_MACRO(pi_iq)
// ------------------------------------------------------------------------------
//  Connect inputs of the PI module and call the PI ID controller macro
// ------------------------------------------------------------------------------
    pi_id.Ref = IdRef;
	pi_id.Fbk = park1.Ds;
	PI_MACRO(pi_id)

// ------------------------------------------------------------------------------
//	Connect inputs of the INV_PARK module and call the inverse park trans. macro
// ------------------------------------------------------------------------------
    ipark1.Ds = pi_id.Out;
    ipark1.Qs = pi_iq.Out ;
	ipark1.Sine   = park1.Sine;
    ipark1.Cosine = park1.Cosine;
	IPARK_MACRO(ipark1)

// ------------------------------------------------------------------------------
//  Call the QEP macro (if incremental encoder used for speed sensing)
//  Connect inputs of the SPEED_FR module and call the speed calculation macro
// ------------------------------------------------------------------------------
    QEP_MACRO(1,qep1)

    speed1.ElecTheta = qep1.ElecTheta;
    speed1.DirectionQep = (int32)(qep1.DirectionQep);
    SPEED_FR_MACRO(speed1)

// ------------------------------------------------------------------------------
//  Call the CAP macro (if sprocket,tacho or gear used for speed sensing)
//  Connect inputs of the SPEED_PR module and call the speed calculation macro
// ------------------------------------------------------------------------------
	CAP_MACRO(1,cap1)

    if(cap1.CapReturn ==0)             				     // Check the capture return
    {
        speed2.EventPeriod=(int32)(cap1.EventPeriod);    // Read out new event period
        SPEED_PR_MACRO(speed2)                 			 // Call the speed macro
    }

// ------------------------------------------------------------------------------
//  Connect inputs of the VOLT_CALC module and call the phase voltage calc. macro
// ------------------------------------------------------------------------------
	#ifdef DSP2833x_DEVICE_H
	volt1.DcBusVolt = ((AdcMirror.ADCRESULT7)*0.00024414)*0.909; // DC Bus voltage meas.
    #endif														 // (ADCmeas(q12)/2^12)*(3.0V/3.3V)

    #ifdef DSP2803x_DEVICE_H
	volt1.DcBusVolt = _IQ12toIQ(AdcResult.ADCRESULT7);	         // DC Bus voltage meas.
    #endif

    volt1.MfuncV1 = svgen1.Ta;
    volt1.MfuncV2 = svgen1.Tb;
    volt1.MfuncV3 = svgen1.Tc;
    PHASEVOLT_MACRO(volt1)

// ------------------------------------------------------------------------------
//    Connect inputs of the ACI module and call the flux estimation macro
// ------------------------------------------------------------------------------
 	fe1.UDsS = volt1.Valpha;
	fe1.UQsS = volt1.Vbeta;
 	fe1.IDsS = clarke1.Alpha;
	fe1.IQsS = clarke1.Beta;
	ACIFE_MACRO(fe1)

// ------------------------------------------------------------------------------
//    Connect inputs of the ACI module and call the speed estimation macro
// ------------------------------------------------------------------------------
 	se1.IDsS = clarke1.Alpha;
	se1.IQsS = clarke1.Beta;
 	se1.PsiDrS = fe1.PsiDrS;
	se1.PsiQrS = fe1.PsiQrS;
	se1.ThetaFlux = fe1.ThetaFlux;
	ACISE_MACRO(se1)

// ------------------------------------------------------------------------------
//  Connect inputs of the SVGEN_DQ module and call the space-vector gen. macro
// ------------------------------------------------------------------------------
  	svgen1.Ualpha = ipark1.Alpha;
 	svgen1.Ubeta = ipark1.Beta;
  	SVGENDQ_MACRO(svgen1)

// ------------------------------------------------------------------------------
//  Connect inputs of the PWM_DRV module and call the PWM signal generation macro
// ------------------------------------------------------------------------------
    pwm1.MfuncC1 = svgen1.Ta;
    pwm1.MfuncC2 = svgen1.Tb;
    pwm1.MfuncC3 = svgen1.Tc;
	PWM_MACRO(1,2,3,pwm1)							// Calculate the new PWM compare values

// ------------------------------------------------------------------------------
//    Connect inputs of the PWMDAC module
// ------------------------------------------------------------------------------
	pwmdac1.MfuncC1 = fe1.PsiQrS;
    pwmdac1.MfuncC2 = fe1.PsiDrS;
    PWMDAC_MACRO(6,pwmdac1)	  						// PWMDAC 6A, 6B

    pwmdac1.MfuncC1 = rg1.Out;
    pwmdac1.MfuncC2 = fe1.ThetaFlux;
	PWMDAC_MACRO(7,pwmdac1)		  					// PWMDAC 7A, 7B

// ------------------------------------------------------------------------------
//    Connect inputs of the DATALOG module
// ------------------------------------------------------------------------------
    DlogCh1 = _IQtoQ15(fe1.PsiQrS);
    DlogCh2 = _IQtoQ15(fe1.ThetaFlux);
    DlogCh3 = _IQtoQ15(rg1.Out);
    DlogCh4 = _IQtoQ15(clarke1.As);

#endif // (BUILDLEVEL==LEVEL5)

// =============================== LEVEL 6 ======================================
//	  Level 6 verifies the speed regulator performed by PI module.
//	  The system speed loop is closed by using the estimated speed as a feedback.
// ==============================================================================
//  lsw=0, close the current loop
//	lsw=1, close the speed loop

#if (BUILDLEVEL==LEVEL6)

// ------------------------------------------------------------------------------
//  Connect inputs of the RMP module and call the ramp control macro
// ------------------------------------------------------------------------------
    rc1.TargetValue = SpeedRef;
	RC_MACRO(rc1)

// ------------------------------------------------------------------------------
//  Connect inputs of the RAMP GEN module and call the ramp generator macro
// ------------------------------------------------------------------------------
    rg1.Freq = rc1.SetpointValue;
	RG_MACRO(rg1)

// ------------------------------------------------------------------------------
//  Measure phase currents, subtract the offset and normalize from (-0.5,+0.5) to (-1,+1).
//	Connect inputs of the CLARKE module and call the clarke transformation macro
// ------------------------------------------------------------------------------
	#ifdef DSP2833x_DEVICE_H
	clarke1.As=((AdcMirror.ADCRESULT1)*0.00024414-offsetA)*2*0.909; // Phase A curr.
	clarke1.Bs=((AdcMirror.ADCRESULT2)*0.00024414-offsetB)*2*0.909; // Phase B curr.
	#endif													        // ((ADCmeas(q12)/2^12)-offset)*2*(3.0/3.3)

	#ifdef DSP2803x_DEVICE_H
	clarke1.As = _IQmpy2(_IQ12toIQ(AdcResult.ADCRESULT1)-offsetA); // Phase A curr.
	clarke1.Bs = _IQmpy2(_IQ12toIQ(AdcResult.ADCRESULT2)-offsetB); // Phase B curr.
	#endif														   // (ADCmeas(q12->q24)-offset)*2


	CLARKE_MACRO(clarke1)

// ------------------------------------------------------------------------------
//  Connect inputs of the PARK module and call the park trans. macro
// ------------------------------------------------------------------------------
    park1.Alpha = clarke1.Alpha;
    park1.Beta  = clarke1.Beta;
	if(lsw==0) park1.Angle = rg1.Out;
	else park1.Angle = fe1.ThetaFlux;
	park1.Sine = _IQsinPU(park1.Angle);
	park1.Cosine = _IQcosPU(park1.Angle);
	PARK_MACRO(park1)

// ------------------------------------------------------------------------------
//  Connect inputs of the PI module and call the PI SPD controller macro
// ------------------------------------------------------------------------------
   if (SpeedLoopCount==SpeedLoopPrescaler)
     {
      pi_spd.Ref = rc1.SetpointValue;
      pi_spd.Fbk = se1.WrHat;
	  PI_MACRO(pi_spd)
      SpeedLoopCount=1;
     }
	else SpeedLoopCount++;

	if(lsw==0)	{pi_spd.ui=0; pi_spd.i1=0;}
// ------------------------------------------------------------------------------
//  Connect inputs of the PI module and call the PI ID controller macro
// ------------------------------------------------------------------------------
    if(lsw==0) pi_iq.Ref = IqRef;
    else pi_iq.Ref =  pi_spd.Out;
	pi_iq.Fbk = park1.Qs;
	PI_MACRO(pi_iq)

// ------------------------------------------------------------------------------
//  Connect inputs of the PI module and call the PI ID controller macro
// ------------------------------------------------------------------------------
    pi_id.Ref = IdRef;
	pi_id.Fbk = park1.Ds;
	PI_MACRO(pi_id)

// ------------------------------------------------------------------------------
//	Connect inputs of the INV_PARK module and call the inverse park trans. macro
// ------------------------------------------------------------------------------
    ipark1.Ds = pi_id.Out;
    ipark1.Qs = pi_iq.Out ;
	ipark1.Sine   = park1.Sine;
    ipark1.Cosine = park1.Cosine;
	IPARK_MACRO(ipark1)

// ------------------------------------------------------------------------------
//  Call the QEP macro (if incremental encoder used for speed sensing)
//  Connect inputs of the SPEED_FR module and call the speed calculation macro
// ------------------------------------------------------------------------------
    QEP_MACRO(1,qep1)

    speed1.ElecTheta = qep1.ElecTheta;
    speed1.DirectionQep = (int32)(qep1.DirectionQep);
    SPEED_FR_MACRO(speed1)

// ------------------------------------------------------------------------------
//  Connect inputs of the VOLT_CALC module and call the phase voltage calc. macro
// ------------------------------------------------------------------------------
	#ifdef DSP2833x_DEVICE_H
	volt1.DcBusVolt = ((AdcMirror.ADCRESULT7)*0.00024414)*0.909; // DC Bus voltage meas.
    #endif														 // (ADCmeas(q12)/2^12)*(3.0V/3.3V)

    #ifdef DSP2803x_DEVICE_H
	volt1.DcBusVolt = _IQ12toIQ(AdcResult.ADCRESULT7);	     // DC Bus voltage meas.
    #endif

    volt1.MfuncV1 = svgen1.Ta;
    volt1.MfuncV2 = svgen1.Tb;
    volt1.MfuncV3 = svgen1.Tc;
    PHASEVOLT_MACRO(volt1)

// ------------------------------------------------------------------------------
//    Connect inputs of the ACI module and call the flux estimation macro
// ------------------------------------------------------------------------------
 	fe1.UDsS = volt1.Valpha;
	fe1.UQsS = volt1.Vbeta;
 	fe1.IDsS = clarke1.Alpha;
	fe1.IQsS = clarke1.Beta;
	ACIFE_MACRO(fe1)

// ------------------------------------------------------------------------------
//    Connect inputs of the ACI module and call the speed estimation macro
// ------------------------------------------------------------------------------
 	se1.IDsS = clarke1.Alpha;
	se1.IQsS = clarke1.Beta;
 	se1.PsiDrS = fe1.PsiDrS;
	se1.PsiQrS = fe1.PsiQrS;
	se1.ThetaFlux = fe1.ThetaFlux;
	ACISE_MACRO(se1)

// ------------------------------------------------------------------------------
//  Connect inputs of the SVGEN_DQ module and call the space-vector gen. macro
// ------------------------------------------------------------------------------
  	svgen1.Ualpha = ipark1.Alpha;
 	svgen1.Ubeta = ipark1.Beta;
  	SVGENDQ_MACRO(svgen1)

// ------------------------------------------------------------------------------
//  Connect inputs of the PWM_DRV module and call the PWM signal generation macro
// ------------------------------------------------------------------------------
    pwm1.MfuncC1 = svgen1.Ta;
    pwm1.MfuncC2 = svgen1.Tb;
    pwm1.MfuncC3 = svgen1.Tc;
	PWM_MACRO(1,2,3,pwm1)							// Calculate the new PWM compare values

// ------------------------------------------------------------------------------
//    Connect inputs of the PWMDAC module
// ------------------------------------------------------------------------------
	pwmdac1.MfuncC1 = speed1.Speed;
    pwmdac1.MfuncC2 = se1.WrHat;
    PWMDAC_MACRO(6,pwmdac1)	  						// PWMDAC 6A, 6B

    pwmdac1.MfuncC1 = rg1.Out;
    pwmdac1.MfuncC2 = fe1.ThetaFlux;
	PWMDAC_MACRO(7,pwmdac1)		  					// PWMDAC 7A, 7B

// ------------------------------------------------------------------------------
//    Connect inputs of the DATALOG module
// ------------------------------------------------------------------------------
    DlogCh1 = _IQtoQ15(clarke1.Bs);
    DlogCh2 = _IQtoQ15(clarke1.As);
    DlogCh3 = _IQtoQ15(fe1.ThetaFlux);
    DlogCh4 = _IQtoQ15(volt1.VphaseA);

#endif // (BUILDLEVEL==LEVEL6)


// ------------------------------------------------------------------------------
//    Call the DATALOG update function.
// ------------------------------------------------------------------------------
    dlog.update(&dlog);

// Enable more interrupts from this timer
	EPwm1Regs.ETCLR.bit.INT = 1;

// Acknowledge interrupt to recieve more interrupts from PIE group 3
	PieCtrlRegs.PIEACK.all = PIEACK_GROUP3;


}// MainISR Ends Here


/**********************************************************/
/********************Offset Compensation*******************/
/**********************************************************/

interrupt void OffsetISR(void)
{
// Verifying the ISR
    IsrTicker++;

// DC offset measurement for ADC

    if (IsrTicker>=5000)
    	{

    		#ifdef DSP2833x_DEVICE_H
    		offsetA= K1*offsetA + K2*(AdcMirror.ADCRESULT1)*0.00024414; 			//Phase A offset
    		offsetB= K1*offsetB + K2*(AdcMirror.ADCRESULT2)*0.00024414; 			//Phase B offset
    		offsetC= K1*offsetC + K2*(AdcMirror.ADCRESULT3)*0.00024414; ;			//Phase C offset
    		#endif

    		#ifdef DSP2803x_DEVICE_H
    		offsetA= _IQmpy(K1,offsetA)+_IQmpy(K2,_IQ12toIQ(AdcResult.ADCRESULT1)); 		//Phase A offset
    		offsetB= _IQmpy(K1,offsetB)+_IQmpy(K2,_IQ12toIQ(AdcResult.ADCRESULT2));			//Phase B offset
    		offsetC= _IQmpy(K1,offsetC)+_IQmpy(K2,_IQ12toIQ(AdcResult.ADCRESULT3));			//Phase C offset
    		#endif
    	}

	if (IsrTicker > 20000)
	{
		EALLOW;
		PieVectTable.EPWM1_INT = &MainISR;
		EDIS;
	}


// Enable more interrupts from this timer
	EPwm1Regs.ETCLR.bit.INT = 1;

// Acknowledge interrupt to recieve more interrupts from PIE group 3
	PieCtrlRegs.PIEACK.all = PIEACK_GROUP3;

}

//*************** End of Offset Comp. ********************//


/**********************************************************/
/***************Protection Configuration*******************/
/**********************************************************/

void HVDMC_Protection(void)
{


      EALLOW;

// Configure Trip Mechanism for the Motor control software
// -Cycle by cycle trip on CPU halt
// -One shot IPM trip zone trip
// These trips need to be repeated for EPWM1 ,2 & 3

//===========================================================================
//Motor Control Trip Config, EPwm1,2,3
//===========================================================================

// CPU Halt Trip
      EPwm1Regs.TZSEL.bit.CBC6=0x1;
      EPwm2Regs.TZSEL.bit.CBC6=0x1;
      EPwm3Regs.TZSEL.bit.CBC6=0x1;

      EPwm1Regs.TZSEL.bit.OSHT1   = 1;  //enable TZ1 for OSHT
      EPwm2Regs.TZSEL.bit.OSHT1   = 1;  //enable TZ1 for OSHT
      EPwm3Regs.TZSEL.bit.OSHT1   = 1;  //enable TZ1 for OSHT

// What do we want the OST/CBC events to do?
// TZA events can force EPWMxA
// TZB events can force EPWMxB

      EPwm1Regs.TZCTL.bit.TZA = TZ_FORCE_LO; // EPWMxA will go low
      EPwm1Regs.TZCTL.bit.TZB = TZ_FORCE_LO; // EPWMxB will go low

      EPwm2Regs.TZCTL.bit.TZA = TZ_FORCE_LO; // EPWMxA will go low
      EPwm2Regs.TZCTL.bit.TZB = TZ_FORCE_LO; // EPWMxB will go low

      EPwm3Regs.TZCTL.bit.TZA = TZ_FORCE_LO; // EPWMxA will go low
      EPwm3Regs.TZCTL.bit.TZB = TZ_FORCE_LO; // EPWMxB will go low


      EDIS;

     // Clear any spurious OV trip
      EPwm1Regs.TZCLR.bit.OST = 1;
      EPwm2Regs.TZCLR.bit.OST = 1;
      EPwm3Regs.TZCLR.bit.OST = 1;

//************************** End of Prot. Conf. ***************************//
}

//===========================================================================
// No more.
//===========================================================================
