Inbuilt CAN transceivers for TI Piccolo

Hemanth Sundaresh

Intellectual 380 points

Other Parts Discussed in Thread: DRV8301-69M-KIT, DRV8301, TMS320F28069M, CONTROLSUITE

Hello ,

I needed some information on CAN in TI piccolo.

1. Are there any development boards/ Cards available for TI piccolo (28069) with the CAN transceivers?

I am currently using the control stick. But it doesn't have the CAN transceiver in the board :(

regards,

Hemanth

over 12 years ago

0 Gautam Iyer over 12 years ago

Guru 192875 points

Hi Hemanth,

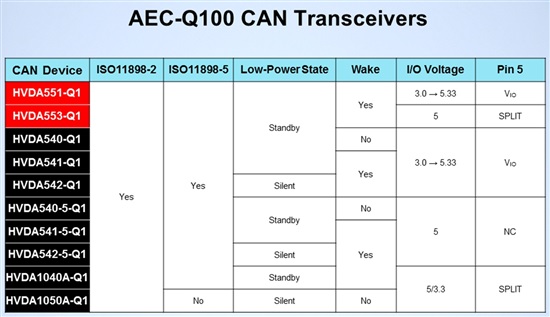

I'm sorry to inform you that: none of the boards have CAN transceivers. You'll have to use one of the external ones like: http://www.ti.com/product/sn65hvd230

Regards,

Gautam

0 Brett Larimore over 12 years ago in reply to Gautam Iyer

TI__Guru 57255 points

Hemanth,

Two kits that have CAN transceivers on the controlCARD baseboard and may be useful references are:
DRV8301-HC-C2-KIT/DRV8301-69M-KIT - show an isolated CAN interface
TMDSPREX28335 - non-isolated CAN interface

I hope this will be useful.

Thank you,
Brett

0 Gautam Iyer over 12 years ago

Guru 192875 points

Hi Hemanth,

As Bret has indicated, you can check this kit (this specially for "Three Phase BLDC & PMSM Motor Kit with DRV8301 and InstaSPIN-enabled Piccolo TMS320F28069M MCU ")

http://www.ti.com/tool/DRV8301-69M-KIT

But, I'm not sure just for CAN transceiver you would like to invest the amount. Instead it would be much easier to interface your F28069 controlStick (that you already have) with external CAN transceiver.

What do you think Brett?

Regards,

Gautam

0 Brett Larimore over 12 years ago in reply to Gautam Iyer

TI__Guru 57255 points

Gautam,

Agree, but now he has a reference to work off of (the schematics are in controlSUITE). Once the desired CAN transceiver is chosen, its datasheet will obviously be another good reference.

Thank you,
Brett
