F28335 - different footprint

Kristin Kuipers

Other Parts Discussed in Thread: CONTROLSUITE

Hello everybody,

I am recently changing from the 176HLQFP176 to the 176BGA package. Since they have the same number of pins, I was expecting to be able to use the same schematic drawing, but the number of VDD and VDDIO are not the same in the packages (one more VDD and one less VDDIO pin in the LHQFP). Is this suppost to be that way or could it be a mistake in the datasheet?

Kind regards,

Kristin

over 11 years ago

0 Gautam Iyer over 11 years ago

Guru 192875 points

Hi Kristin,

The datasheet is right! Still I would like you to compare the F28335 controlCard schematic/pcb file with yours; you can conclude after checking out personally. The schematic/pcb file of F28335 (BGA) control card is in controlSuite.

Regards,

Gautam

0 Kristin Kuipers over 11 years ago in reply to Gautam Iyer

Prodigy 190 points

Hi Gautam,

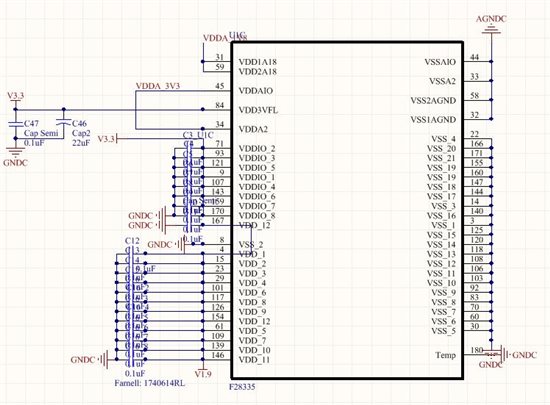

thank you for your reply. I will check the design of the control card. I found the differences in the supply pins when creating the footprint. I am still working on my BGA design, so I will just attach my schematic right now - that might not be enough information to check for any differences.

Regards,

Kristin

0 Gautam Iyer over 11 years ago in reply to Kristin Kuipers

Guru 192875 points

I will check the design of the control card.

Sure sure, do keep us posted.

so I will just attach my schematic right now

There are no attachments.

Regards,

Gautam

0 Kristin Kuipers over 11 years ago in reply to Gautam Iyer

Prodigy 190 points

I just now discovered that the picture is missing - sorry.

0 Gautam Iyer over 11 years ago in reply to Kristin Kuipers

Guru 192875 points

So did you check the controlCard PCB layout?

0 Kristin Kuipers over 11 years ago in reply to Gautam Iyer

Prodigy 190 points

Yes, I did. It maches the datasheet. So I will change the footfrint and the schematic drawing for the controller. Thanks for your help.

Kind Regards

Kristin

0 Gautam Iyer over 11 years ago in reply to Kristin Kuipers

Guru 192875 points

Thats great! Can you please close this thread by verifying the answer?

Goodluck & Regards,

Gautam
