c2000 echo back code discussion

Hi Ashutosh,

Here's the hyperterminal software:

2844.hyperterminal.rar

Just paste the dll file to your system32 folder. Connect your C2000 kit to your computer's serial port and start communicating with hyperterminal.

Regards,

Gautam

Thnx...sir...let  see

Regard

Ashutosh

Sir

when i got to open the SCI_96.ht file it could not open . I don't know why...Please help me

Regards

ashutosh

sir

  I m using actually TMS320F28027  i connect the HyperTermainal and run the program,but nothing appear on the screen

when i got to open the SCI_96.ht file it could not open . I don't know why...Please help me

What error do you get when you open the ht file on hyperterminal?

  I m using actually TMS320F28027  i connect the HyperTerminal and run the program,but nothing appear on the screen

Do you've the C2000 launchpad or a custom board? How're you connecting this board to PC?

Regards,

Gautam

-# Configure hyperterminal:
//! Use the included hyperterminal configuration file SCI_96.ht.
//! To load this configuration in hyperterminal: file->open
//! and then select the SCI_96.ht file.
//! -# Check the COM port.
//! The configuration file is currently setup for COM1.
//! If this is not correct, disconnect Call->Disconnect
//! Open the File-Properties dialog and select the correct COM port.
//! -# Connect hyperterminal Call->Call
//! and then start the 2802x SCI echoback program execution.
//! -# The program will print out a greeting and then ask you to
//! enter a character which it will echo back to hyperterminal.

so as i tyr to open this file sci_96.ht. It ask me to change the format of file , i click  NO  now further show  could not read the session file

i m working on TMS320F28027 piccolo...i want to see how serial communication work in this case through this .example

 I hve launch pad

Yes, even I'm getting the same error. Before it was running... Anyways if still want to run this file then go through:

http://answers.microsoft.com/en-us/windows/forum/windows_7-windows_programs/does-windows-7-support-hyper-terminal/79dc1358-8613-44fd-a97e-ce0bcb86a497

To avoid all these complications here are the settings:

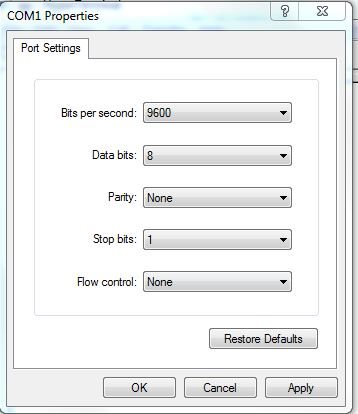

New Connection - > COM1 or COMx port according to your port settings

Then say Apply. Then...

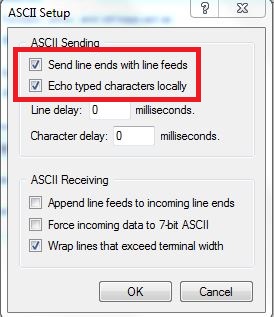

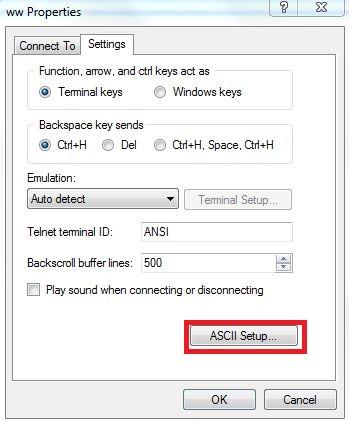

File -> Properties -> Settings -> ASCII Setup

These are the settings mentioned in that .ht file.

Regards,

Gautam

I follow your steps  and when  build and debug  the echo back code  finally  nothing appear on the hyper terminal and one thing happen  when write some thing  on hyper terminal from keyboard it appear some thing,that means hyperterminal is working.

but above all  same prob is maintained is when  I open the sci file still showing same problem i.e. not able the session file..

may be any other hyper terminal is required , this may not be suffient to open this

Check this link: http://www.forum.c2kcentral.com/topic/152-example-f2802xsci-echoback-doesnt-work/

Hi Gautam

   what to do with this link  there is temperature sensor program is there let me see if in that ,i might get some thing in this link  any way  thanks.

regards

Ashutosh

Hi Gautam

I saw your link  it was wonderful but my problem is not solved actually one more thing came into my mind

right now i m working on project that need our ADC data from potentiometer  from specified port now i want that adc value should be sampled and came into the hyperterminal whenever i changes the voltage level  from Potentiometer that changes appear on the hyperterminal screen.

  please suggest me dear it would be very grateful.

  please reply soon

thanks

Regards

Ashutosh

Hi Ashutosh,

Ok, so you want the ADC data on hyperterminal. For this atleast are you able to communicate from your board to PC via SCI? Also, I guess you'll be needing a level shifter circuit comprising of MAX232.

Check this video: www.youtube.com/watch?v=dQSqV6jKVg8

Regards,

Gautam
