What the use of TZ Pins in 28075,28074

Amit Patil

Intellectual 900 points

Other Parts Discussed in Thread: TMS320F28075

Sir,

What is the Use of Tz Pin in 28075,28075?

How to Access The TZ Pin as No Hardware Pins are mentioned in the datasheet.

Regards,

Bipin

over 10 years ago

0 Gautam Iyer over 10 years ago

Guru 192875 points

Hi Bipin,

What is the Use of Tz Pin in 28075,28075?

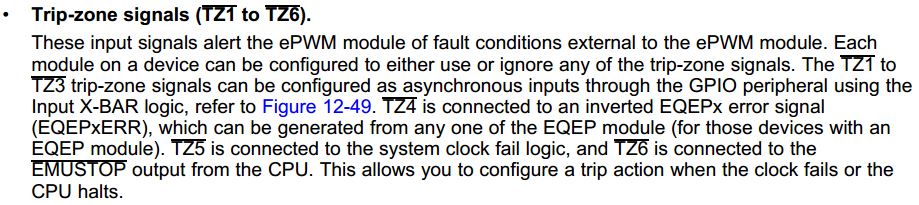

TZ is like external interrupt but to control the PWM signal functionality. Read the TRM for F28075 device for additional information.

Bipin Patil said:
How to Access The TZ Pin as No Hardware Pins are mentioned in the datasheet.

Regards,

Gautam

0 Amit Patil over 10 years ago in reply to Gautam Iyer

Intellectual 900 points

Sir,

Where Should I Connect The Fault signal coming from IPM to the TMS320F28075 to get the IPM fault linked to the Trip zone (TZ) function in the processor.

0 Gautam Iyer over 10 years ago in reply to Amit Patil

Guru 192875 points

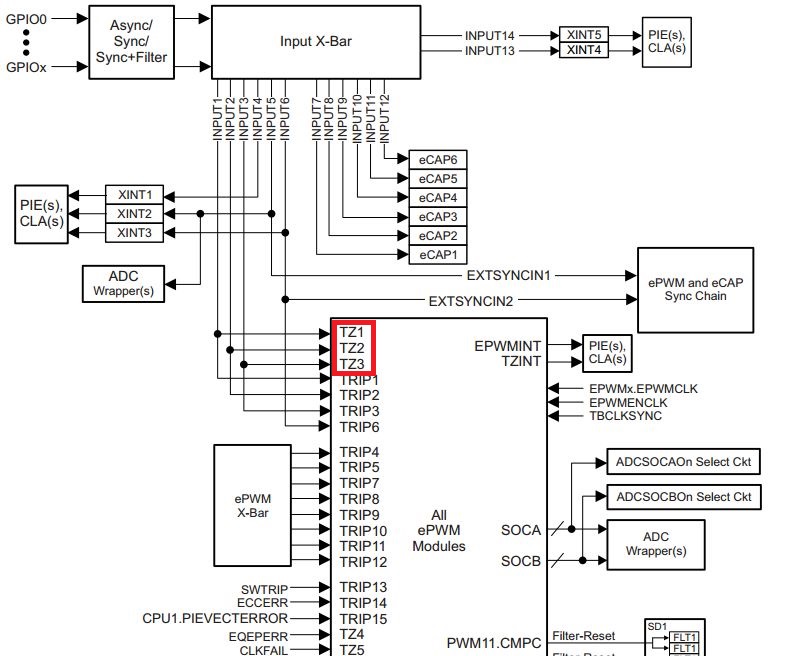

Read 12.2.9.3 Using CMPSS to Trip the ePWM on a Cycle-by-Cycle Basis in TRM.

Regards,

Gautam
