LaunchPad LAUNCHXL-F28027F Switches S1 and S4

Bruce King

Other Parts Discussed in Thread: LAUNCHXL-F28027F, BOOSTXL-DRV8301

Hello,

I just received my order of a LAUNCHXL-F28027F launchPad and a BOOSTXL-DRV8301 BoosterPack and noticed that the switches (S1 & S4) stand tall on the LAUNCHXL-F28027F and don't allow complete mating of both boards. Seems there is quite a space under the switches as though they may have been installed incorrectly or is this just the way it is produced if anyone knows or has experienced the same issue?

Thanks

Bruce

over 10 years ago

0 Gautam Iyer over 10 years ago

Guru 192875 points

Hi Bruce,

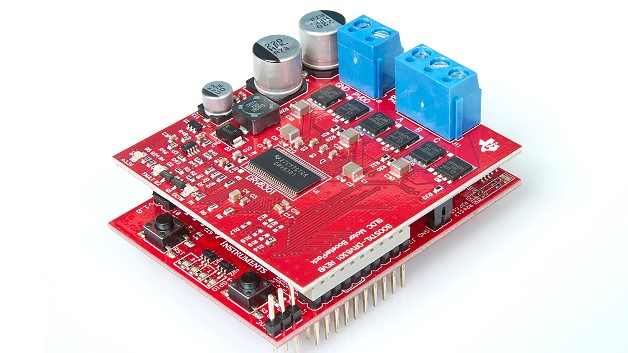

It does fit properly. Check the orientation:

Regards,

Gautam

0 Bruce King over 10 years ago in reply to Gautam Iyer

Intellectual 570 points

Hi Gautam,

The orientation is correct it's just that the S1 and S4 switches sit up high to the point that the booster pack won't seat completely on the side that the switches are located. I thought that was sort of odd considering these boards seem to have been well thought out otherwise.

Thanks, Bruce

0 Gautam Iyer over 10 years ago in reply to Bruce King

Guru 192875 points

Seems like some kind of tolerance issue troubling you. Can some filing help you?

0 Bruce King over 10 years ago in reply to Gautam Iyer

Intellectual 570 points

Yes that's the case but I shouldn't have to modify the product considering smaller switches are probably available and should have been used. I'll just assume it was a mistake and TI has a boat load of these to sell off before they redo it the correct way???

0 Gautam Iyer over 10 years ago in reply to Bruce King

Guru 192875 points

Bruce if time is not a constraint please go ahead with a replacement by contacting authorized personnel.

Regards,
Gautam
