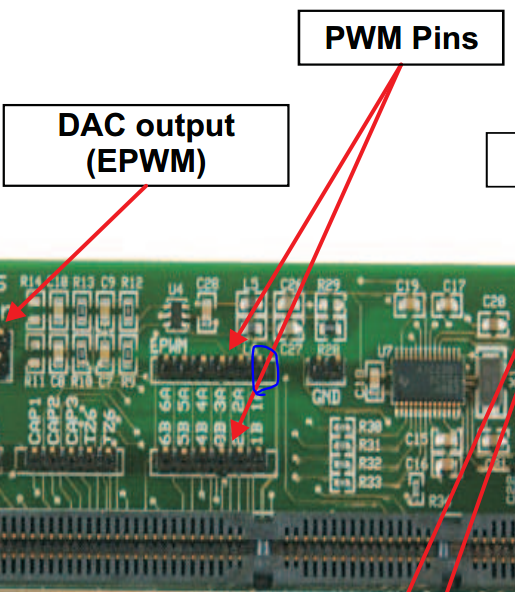

Hello, I am currently working on lab7_1 for the module for the 28335 card with the Peripheral explorer kit. I need to connect an oscilloscope to header J6-1 to see the square wave produced by the ePWM. I am a novice and haven't used the oscilloscope or board very much so if someone could tell or preferably show me where these are located it would be much appreciated. Here is a picture of the board if someone could maybe highlight the area for me i'll love you forever. pic of control board.pdf
