ADC_SOC_C28x example not working

Kumar Nega

Other Parts Discussed in Thread: CONTROLSUITE

Hi all, I'm new to c2000 family, I'm trying to run the adc example for c28x (Concerto) which I had imported from the controlSUITE folder but I'm not getting the expected result. I checked the adc registers and pwm registers, but no change in the values . Even I'm not able to see any changes in the graph. I don'n know what I'm missing. What is the way to read the ADC values. Could anyone help me to solve the problem.

Thanks!

Vinod

over 10 years ago

0 Gautam Iyer over 10 years ago

Guru 192875 points

Hi Vinod,

Can you mention the C28x concerto device part you're working on? M35 or M36?
Also, I hope you're supplying proper voltage to configured ADC channel. You also need to enable real-time debug option or continuous refresh tab to observe refreshed adc values.

Regards,
Gautam

0 Kumar Nega over 10 years ago in reply to Gautam Iyer

Intellectual 330 points

Hi Gautam, thanks for your reply. I'm using F28M36 part. I did't get you, can you please make it clear about the voltage configuration for ADC channels. I'm using the example project from the controlSUITE folder.

Thanks,

Vinod

0 Gautam Iyer over 10 years ago in reply to Kumar Nega

Guru 192875 points

I mean to say... I hope you're checking the right ADCRESULTx register.

0 Kumar Nega over 10 years ago in reply to Gautam Iyer

Intellectual 330 points

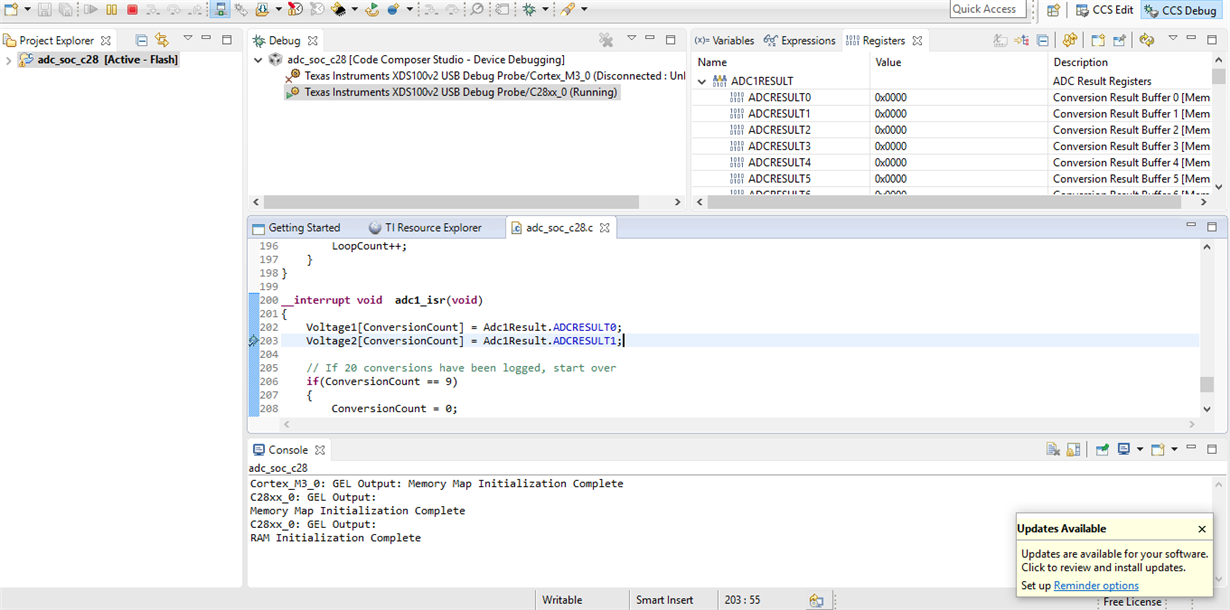

Yeah, I have checked the ADC1RESULT register but values are 0. Below is the snip shot of the debug session. I'm not getting what's wrong with this example. Could you please help me to figure the solution.

0 Gautam Iyer over 10 years ago in reply to Kumar Nega

Guru 192875 points

Vinod, it seems you've still not enabled Continuous Refresh.

0 Kumar Nega over 10 years ago in reply to Gautam Iyer

Intellectual 330 points

Hi, I tried with enabling the continuous refresh but did't work. Meanwhile I tried epwm_adc_soc, it worked fine. I can see the ADCRESULTx registers values. I mean two channels are converted ADC1A0 and ADC1A2 which are triggered by EPWM1SOCA and EPWM1SOCB. I don't know what's wrong with the other example.

0 Gautam Iyer over 10 years ago in reply to Kumar Nega

Guru 192875 points

Vinod I'm unaware of that fact. Though its cool that the above example is working. You can continue your development right?

0 Kumar Nega over 10 years ago in reply to Gautam Iyer

Intellectual 330 points

Yeah till now its ok. Now I need to transfer these adc data to m3. How do I access adc result on m3?. Further how can I send these data out through serial port. Is it possible using sci/uart loopback mode.

0 Gautam Iyer over 10 years ago in reply to Kumar Nega

Guru 192875 points

Please check/search the forum and read the user guides thoroughly! Please don't expect information to be spoon fed on this forum.

Regards,
Gautam

0 Kumar Nega over 10 years ago in reply to Gautam Iyer

Intellectual 330 points

Thanks for your time. I will go through the user guides.

Thanks!

0 Gautam Iyer over 10 years ago in reply to Kumar Nega

Guru 192875 points

That's the spirit!

Goodluck & Regards,
Gautam
