CLKDIV AND HSPCLKDIV

Hi Joseph,

Joseph Peter said:

  is it possible to divide CLKDIV and HSPCLKDIV by 8,16 etc.....when we use 8 and 16...we are getting an error like CLKDIV 8 IS UNIDENTIFIED..

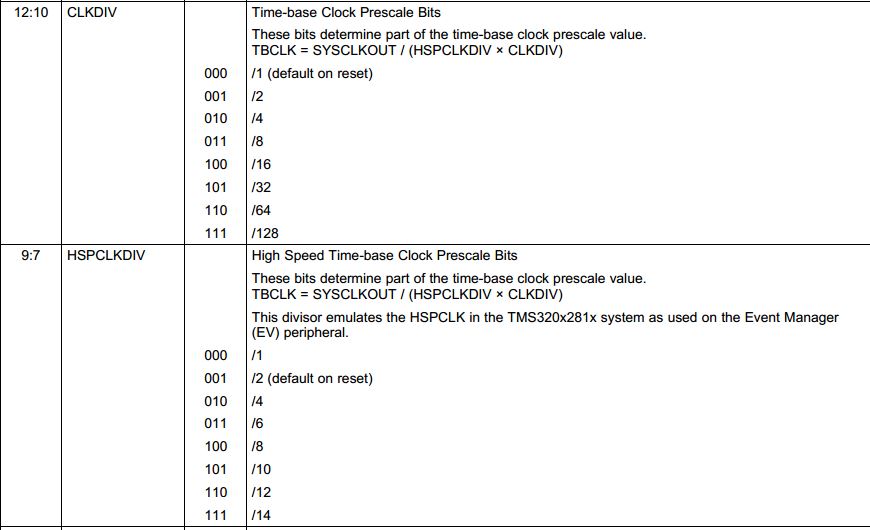

Yes, the error is correct. There is no configuration for value 8. Here's the table, refer this and configure accordingly:

Regards,

Gautam

EPwm1Regs.TBCTL.bit.HSPCLKDIV = TB_DIV4; // Clock ratio to SYSCLKOUT
EPwm1Regs.TBCTL.bit.CLKDIV = TB_DIV4;
so whether this means we are dividing by 8 in both cases since 4(decimal) is 100(binary)?

Joseph Peter said:

EPwm1Regs.TBCTL.bit.HSPCLKDIV = TB_DIV4; // Clock ratio to SYSCLKOUT
EPwm1Regs.TBCTL.bit.CLKDIV = TB_DIV4;
so whether this means we are dividing by 8 in both cases since 4(decimal) is 100(binary)?

The resultant would be divided by 16 and not 8! For 8 you would've to divide on clock by 4 and the other by 2.

Regards,

Gautam

in the table mentioned above CLKDIV BITS 100 INDICATES DIVIDED BY 8 AND 011 INDICATES /6 ETC....SO FOR GETTING /8 SHALL WE GIVE
EPwm1Regs.TBCTL.bit.CLKDIV = TB_DIV4; since 4 decimal means binary 100?

in the table mentioned above CLKDIV BITS 100 INDICATES DIVIDED BY 16 AND 011 INDICATES /8 ETC....SO FOR GETTING /8 SHALL WE GIVE
EPwm1Regs.TBCTL.bit.CLKDIV = TB_DIV4; since 4 decimal means binary 100?

in the table mentioned above CLKDIV BITS 100 INDICATES DIVIDED BY 16 AND 011 INDICATES /8 ETC....SO FOR GETTING /16 SHALL WE GIVE
EPwm1Regs.TBCTL.bit.CLKDIV = TB_DIV4; since 4 decimal means binary 100?

i need CLKDIV= DIVIDED BY 16..SO WHICH VALUE SHOULD I GIVE IN EPwm1Regs.TBCTL.bit.CLKDIV = TB_DIV..IN THE TABLE MENTIONED ABOVE ITS TOLD 100 BITS INDICATE /16...SO SHOULD I GIVE CLKDIV=4 SINCE 4 DECIMAL=100 BINARY?

For /4 its 010 and not 100! Go through the table.
Instead of using the inbuilt TB_DIVx use the binary mentioned in the above table for the ease.

Hi,

Which device are you using? Please go by the register bit description for the corresponding divider of CLKDIV and HSPCLKDIV.
Divider value is not same as the register bit field value.

-Bharathi.
